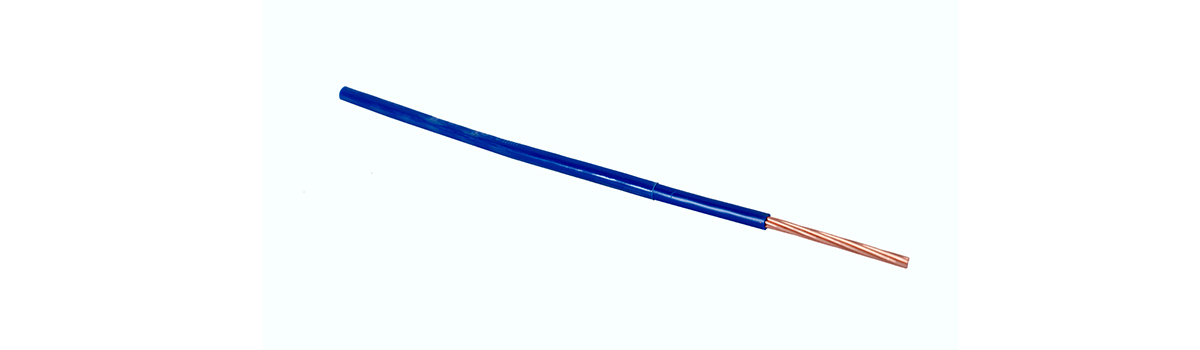

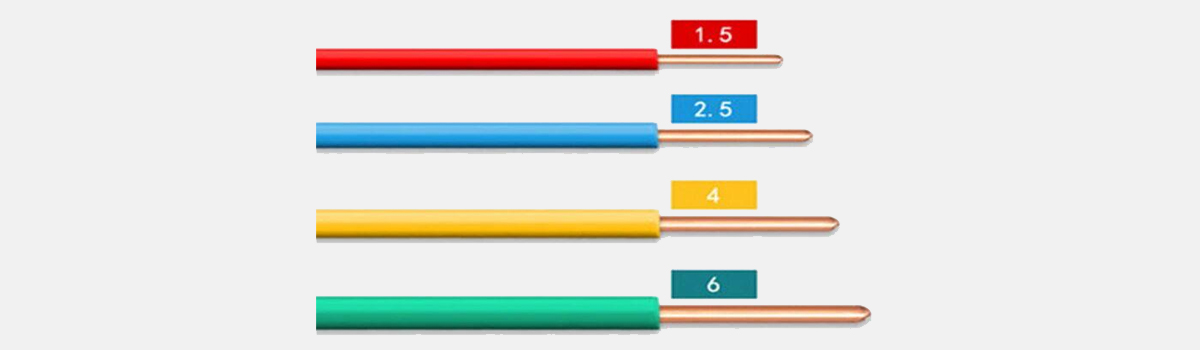

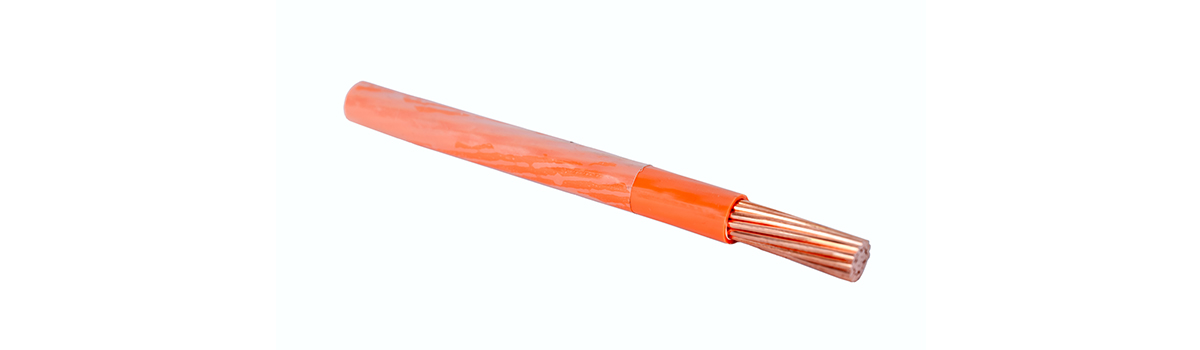

XHHW/THHN Cable

XHHW/THHN Cable
XHHW/THHN Cable
XHHW/THHN Cable
XHHW/THHN Cable

describe:

XHHW and THHN cables are copper or aluminum corrosion-resistant cables widely evaluated in power and control systems, with high temperature resistance, corrosion resistance and other characteristics. They are suitable for different installation environments and needs.

XHHW cable (cross-linked polyethylene insulated cable):

XHHW stands for cross-linked high heat-resistant wire, that is, cross-linked polyethylene high heat-resistant cable, which is commonly used in industrial, commercial and residential power transmission and distribution.

Structural composition:

Extension: Copper extension is usually used, which has good conductivity, and aluminum extension can also be used for some models.

Insulation layer: Cross-linked polyethylene (XLPE) is used as the insulation material. This material has very good high temperature resistance. The heat resistance temperature is generally close to 90°C (under normal conditions), and in some cases it can even withstand higher temperatures.

Outer sheath: According to different application requirements, the outer sheath can be made of PVC, polyethylene and other materials to protect the cable shell from mechanical damage, moisture or chemical corrosion.

Features:

High heat resistance: XHHW cable has excellent high temperature resistance and is suitable for use in high temperature environments.

Fire resistance: Able to withstand high temperatures and have good fire resistance, usually working in an environment of 90°C.

Chemical resistance and corrosion resistance: Cross-linked polyethylene (XLPE) materials can withstand a certain degree of chemical corrosion, so they are suitable for some environments with degrading gases or liquids.

Suitable for humid environments: Can be used in dry environments, suitable for underground power transmission or industrial plants.

Application range:

Power transmission and distribution: used for low-voltage power pipelines such as buildings, industrial facilities, power plants, and power substations.

Base system: used as main power or branch cable in the base system.

Industrial application: suitable for power connection between equipment, especially in occasions where high temperature resistance or chemical corrosion resistance is required.

THHN cable (heat-resistant cable):

THHN stands for thermoplastic high heat-resistant nylon coated cable, that is, heat-resistant and heat-resistant coated cable, which is commonly used for low-voltage power transmission in commercial, residential and industrial areas.

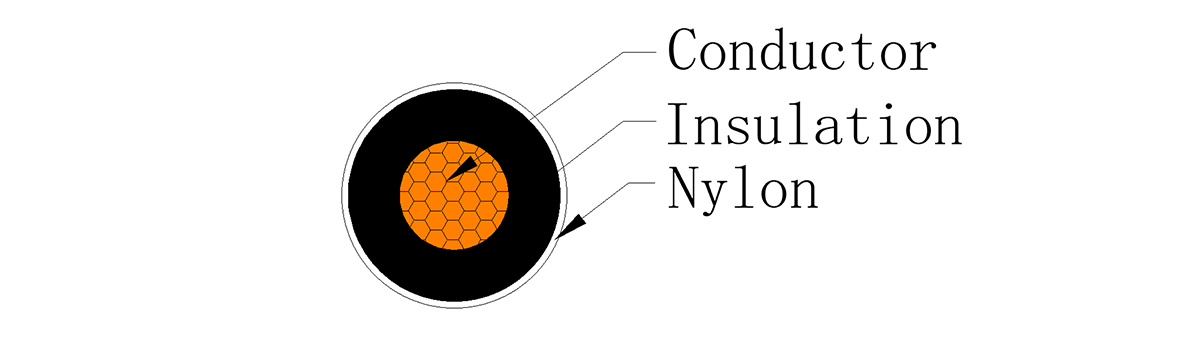

Structural composition:

Extension: usually copper extension, there are also aluminum extension options, providing good conductivity.

Insulation layer: Thermoplastic polyvinyl chloride (PVC) is used as the insulation material, which has strong heat resistance and chemical resistance, and the working temperature can reach 90°C (in a dry environment).

Outer sheath: The outer layer of the cable is usually wrapped with a coating to provide additional physical protection, enhance abrasion resistance and tensile resistance.

Features:

High temperature tolerance: THHN cables can withstand high operating temperatures, usually 90°C (in a dry environment).

Good protection: The outer coating increases the cable's anti-friction and chemical resistance mechanical properties.

Fire resistance: It can withstand fire to a certain extent, but does not have complete fire resistance.

Flexible: The cable is relatively soft and easy to bend and operate during installation.

Application range:

Power building system: used for internal electrical wiring of buildings, including power supply of main power supply and branch power supply.

Industrial power transmission: Widely evaluate power systems in industrial facilities, suitable for control, control and transmission.

Mechanical equipment connection: used for power connection between machinery and equipment.

Auxiliary line: suitable for power transmission in auxiliary power networks and systems.

Differences between XHHW and THHN cables:

Insulation material: XHHW uses cross-linked polyethylene (XLPE), which has stronger high temperature resistance and chemical resistance; THHN uses heat-resistant PVC insulation material, which also has certain high temperature resistance, but the overall heat resistance is slightly inferior to XHHW.

Temperature resistance level: XHHW cable has lower temperature resistance than THHN and is suitable for higher temperature environments. Outer sheath: THHN cables usually use coatings to increase resistance to mechanical damage and chemical corrosion, while XHHW usually uses more corrosion-resistant PVC or polyethylene outer sheaths.

Summary:

XHHW cable: Suitable for use in tough environments, with good high temperature resistance, corrosion resistance and chemical resistance, suitable for industrial and underground power transmission.

THHN cable: Mainly used for power wiring inside buildings, with good heat resistance and physical protection, suitable for ordinary residential and commercial power transmission applications.

Standard: CSA LL 82214 ASTM B3 ASTM-B8 ASTM B787 WC70/ICEA S-95-658 AA-59544

XHH / XHHW-2
AWG/kcmil Strand Nominal Insulation Thickness Nominal Overall Diameter Cable Weight
Inch/mm Inch/mm Lbs/kft kg/km
14 1 0.03 0.76 0.124 3.15 16 24
12 1 0.03 0.76 0.141 3.58 24 36
10 1 0.03 0.76 0.162 4.11 37 55
8 1 0.045 1.14 0.218 5.55 61 91
6 1 0.045 1.14 0.252 6.4 93 138
14 7 0.03 0.76 0.133 3.37 17 26
12 7 0.03 0.76 0.152 3.85 26 39
10 7 0.03 0.76 0.176 4.46 39 58
8 7 0.045 1.14 0.236 5.99 65 96
6 7 0.045 1.14 0.274 6.95 98 146
4 19 0.045 1.14 0.316 8.04 148 220
3 19 0.045 1.14 0.344 8.75 184 274
2 19 0.045 1.14 0.376 9.54 229 341
1 19 0.045 1.14 0.431 10.94 292 434
1/0 19 0.055 1.4 0.47 11.94 364 541
2/0 19 0.055 1.4 0.514 13.07 453 674
3/0 19 0.055 1.4 0.564 14.33 566 842
4/0 19 0.055 1.4 0.62 15.75 708 1053
250 37 0.065 1.65 0.706 17.93 838 1247
300 37 0.065 1.65 0.761 19.33 999 1486
350 37 0.065 1.65 0.812 20.62 1159 1725
400 37 0.065 1.65 0.859 21.82 1319 1963
500 37 0.065 1.65 0.945 24 1639 2439
600 61 0.08 2.03 1.053 26.75 1980 2946
750 61 0.08 2.03 1.159 29.44 2459 3660
1000 61 0.08 2.03 1.313 33.35 3256 4845



THHN / THWN-2 / MTW
AWG or kcmil Strand Nominal Insulation thickness Nominal Jacket thickness Nominal Overall Diameter Cable weight
Inch/mm Inch/mm Inch/mm Lbs/kft kg/km
14 1 0.015 0.38 0.004 0.1 0.11 2.79 15 22
12 1 0.015 0.38 0.004 0.1 0.12 3.05 23 34
10 1 0.02 0.51 0.004 0.1 0.15 3.81 37 54
14 19 0.015 0.38 0.004 0.1 0.11 2.79 16 24
12 19 0.015 0.38 0.004 0.1 0.13 3.3 24 36
10 19 0.02 0.51 0.004 0.1 0.17 4.32 39 58
8 19 0.03 0.76 0.005 0.13 0.22 5.59 63 94
6 19 0.03 0.76 0.005 0.13 0.26 6.6 98 145
4 19 0.04 1.01 0.006 0.15 0.33 8.38 157 234
3 19 0.04 1.01 0.006 0.15 0.36 9.14 193 287
2 19 0.04 1.01 0.006 0.15 0.39 9.91 240 357
1 19 0.05 1.27 0.007 0.18 0.43 10.92 300 446
1/0 19 0.05 1.27 0.007 0.18 0.47 11.94 376 560
2/0 19 0.05 1.27 0.007 0.18 0.52 13.21 467 695
3/0 19 0.05 1.27 0.007 0.18 0.57 14.48 581 864
4/0 19 0.05 1.27 0.007 0.18 0.64 16.26 724 1077
250 37 0.06 1.52 0.008 0.2 0.69 17.53 855 1272
300 37 0.06 1.52 0.008 0.2 0.76 19.3 1022 1521
350 37 0.06 1.52 0.008 0.2 0.79 20.07 1191 1772
400 37 0.06 1.52 0.008 0.2 0.85 21.59 1345 2001
500 37 0.06 1.52 0.008 0.2 0.94 23.88 1668 2482
600 61 0.07 1.78 0.009 0.23 1.1 27.94 1994 2967
750 61 0.07 1.78 0.009 0.23 1.16 29.46 2465 3668

Pre sales

Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
pro_con_03 Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
pro_con_06 Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Sampling inspection items: DC resistance of cable conductors; Finished cable withstand voltage test; Single wire diameter and deviation of conductor; Average insulation thickness and thinnest point; Average thickness and thinnest part of the sheath; Change rate of tensile strength and elongation of insulation and sheath before and after aging; Insulation core withstand voltage test; Thermal extension test; Ozone resistance test; Finished cable bending test, etc.
