Standard Glass Suspension Disc Insulator

Standard Glass Suspension Disc Insulator

Product Description:

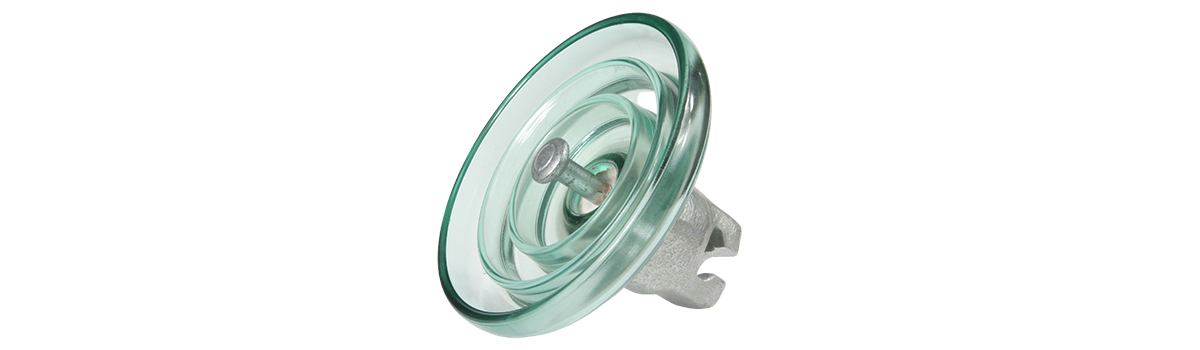

Standard glass disc insulator products are composed of iron caps, power tempered glass parts and steel feet, and are glued together with cement glue.

Parameter
General code LXY Series FC Series LXP Series Nominal diameter
D(mm)
Structure height
H(mm)
Net weight of
single piece
(kg)
U70BL LXY1-70 FC70/146 LXP-70 255  146  3.78
U70BS LXY-70 FC70/127 LXP2-70 255  127  3.77
U100BL LXY-100 FC100/146 LXP-100 255  146  4.1
U100BS FC100/127 LXP2-100 255  127  3.9
U120BL LXY-120 FC120/146 LXP-120 255  146  4.2
U120BS FC120/127 LXP2-120 255  127  3.9
U160BL FG160/170 LXP-160 280  170  6.5
U160B LXY3-160 FC160/155 LXP3-160 280  155  6.2
U160BS FC160/146 LXP4-160 280  146
U210B LXY3-210 FC210/170 LXP-210 280  170  6.7
LXY-240 6.8
LXY3-300 10.7

Pre sales

Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
pro_con_03 Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
pro_con_06 Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Sampling inspection items: DC resistance of cable conductors; Finished cable withstand voltage test; Single wire diameter and deviation of conductor; Average insulation thickness and thinnest point; Average thickness and thinnest part of the sheath; Change rate of tensile strength and elongation of insulation and sheath before and after aging; Insulation core withstand voltage test; Thermal extension test; Ozone resistance test; Finished cable bending test, etc.
pro_con_09 Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.

After sales

pro_con_11-12Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
pro_con_14 Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
pro_con_16 After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
pro_con_18 After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.
