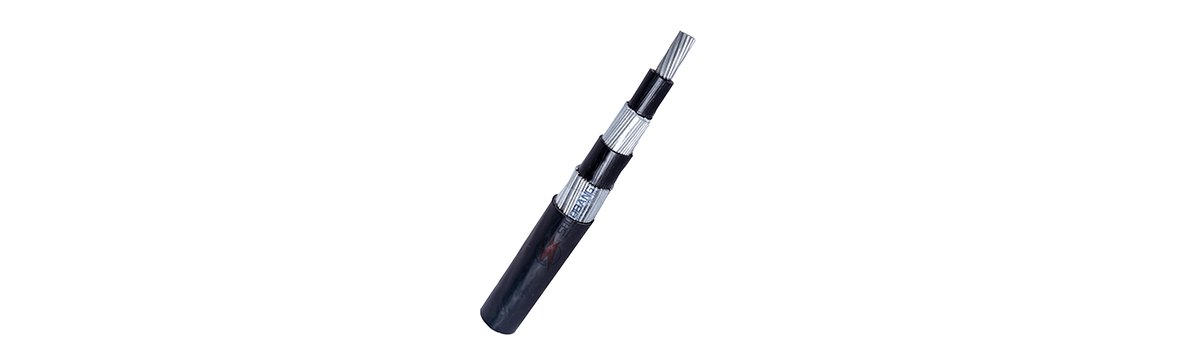

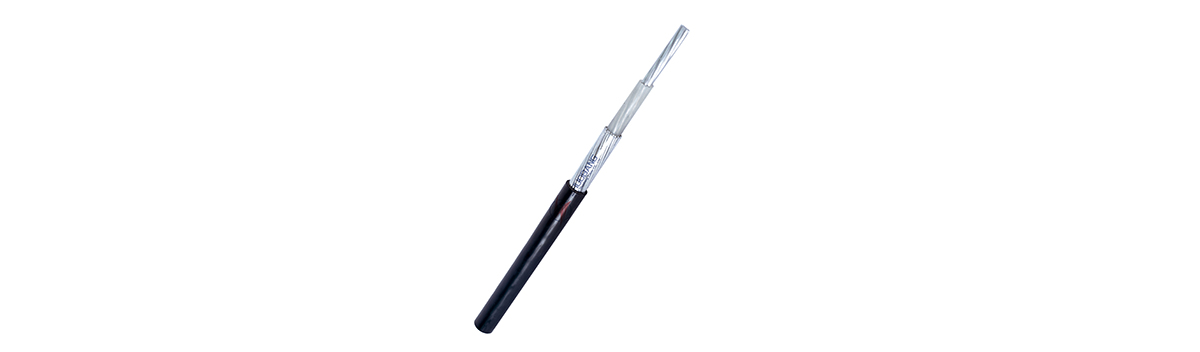

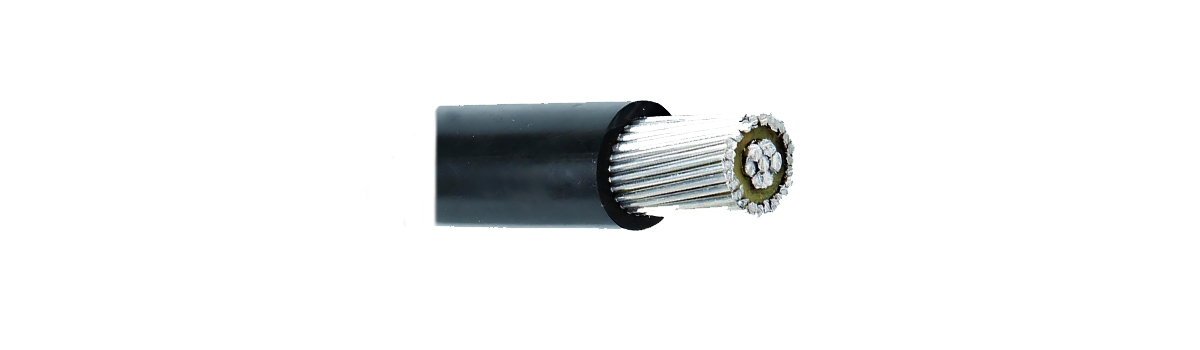

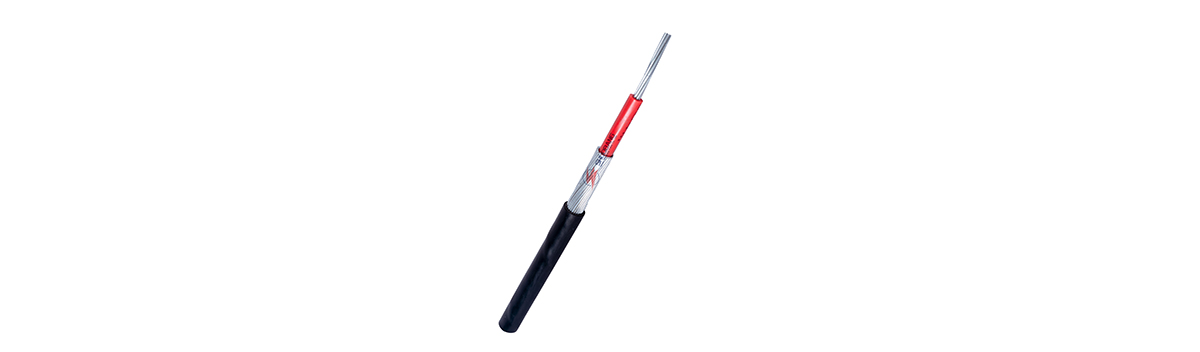

Single phase concentric aluminum cable

Single phase concentric aluminum cable
Single phase concentric aluminum cable
Single phase concentric aluminum cable
Single phase concentric aluminum cable
Single phase concentric aluminum cable

description:

Service entrance cable, 600/1000 V PVC insulated single-phase concentric cables withcopper or aluminium conductors for electricity supply.

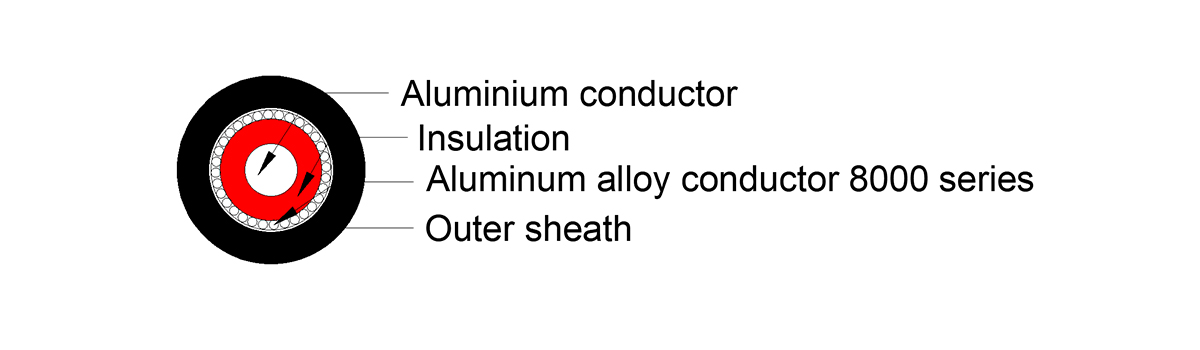

Conductor:

Aluminum Wire

Insulation:

Red PVC



Neutral Conductor:

Bare Aluminum Wire

Binder Tape:

Polyester Tape

Outer Sheath:

Black PVC

Standard:

KS 04-1022, IEC 60502-1, ASTM B800, ASTM B 801, ICEAS-95-658, UL 2556

Type I: PVC Insulated Single phase concentric aluminum cable with copper communication pair
Property Cable sizes
Phase Conductor Nominal area, mm, 10 16 25 35
Form of conductors Circular/compacted circular stranded
No. & approx, dia. of wires, No./mm 7/1.35 7/1.70 7/2.14 7/2.52
Min-Max. dia of completed conductors, mm * 4.6-5.2 5.6-6.5 6.6-7.6
Nominal diameter of conductors, mm 4.05 5.1 6.42 7.56
Minimum thickness of insulation mm 1.55 1.55 1.6 1.65
Concentric neutral Approx, no. of wires 7 11 14 16
Concentric neutral Approx, diameter of wires, mm 1.5 1.5 1.5 1.5
Minimum lay lengths, mm 146.5 155 165 178
Thickness of over sheath, mm 1.4 1.4 1.5 1.6
Minimum thickness of over sheath at any point 1.09 1.09 1.17 1.2
Maximum conductor DC resistance per 1000m of cable                                                    at 20°C Phase, Ω 3.08 1.15 1.2 0.868
Neutral-earth, Ω 4.61 3.08 1.91 1.2
Maximum weight of the complete conductor excluding insulation * 43.9 69.5 96.4
Power frequency withstand voltage, for 5mins, kVrms 3.5
Insulation resistance at 500Vdc in 1min at 20qC., MQ/Km 8 8 6 5
* Manufacturer to state the design value based on the sizes of conductors specified
Type II: PVC Insulated Single phase concentric aluminum cable without copper communication pair
Phase Conductor Concentric neutral conductor: number. & approx, diameter of wires Minimum lay lengths Thickness of over sheath Approxmate overall diameter Maximum conductor DC resistance per 1000m of cable at 20°C
Nominal area No.&approx.dia.                                                    of wires mm Thickness of                                                    insulation mm No,/mm mm mm mm Phase ohms Neutral ohms
10 7/1.35 1.55 23/1.13 146.5 1.4 12.21 3.08 1.335
16 7/1.70 1.55 26/1.13 155 1.4 13.34 1.91 1.808
25 7/2.14 1.6 29/1.13 165 1.5 14.88 1.2 1.0586
35 19/1.53 1.65 27/1.35 178 1.6 16.75 0.868 0.7966
