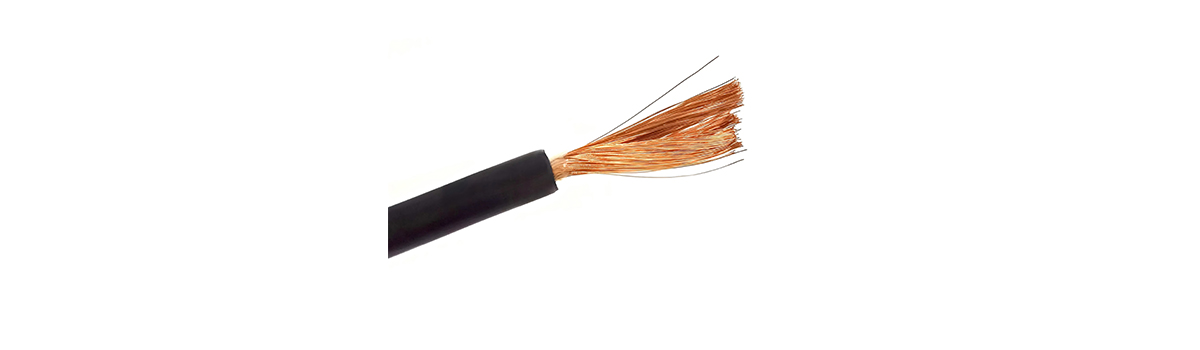

Rubber Welding Cable H01N2-D

Rubber Welding Cable H01N2-D
Rubber Welding Cable H01N2-D

Product Description:

Rubber cable is an outer insulation material made of rubber, which is widely used in industry, construction, mining and outdoor occasions. Due to the excellent wear resistance, softness, oil resistance and weather resistance of rubber material, rubber cable is particularly suitable for applications that require high mechanical strength and flexibility and are exposed to database environments.

These cables are used to connect welding robots in the automotive industry, shipyards, and for manually/automatically operated line and spot welding. These cables are ideal for use as battery interconnect cables or battery storage systems. The robust cable construction makes it resistant to low and high temperatures, ozone and radiation, oils, acids, fats and gasoline.c

Application scenarios of various types of rubber cables:

1.Ordinary rubber cable:

Used in general indoor and outdoor occasions, such as industrial equipment, household appliances and power tools.

2.Mining rubber cable:

It has high wear resistance, tensile resistance and corrosion resistance, suitable for mines and underground working environments.

3.Welding rubber cable:

Specially designed for welding equipment, it can withstand the highest operating current and temperature, and is used for the transmission of arc in welding.

4.Rubber cable for submersible pumps:

It has excellent waterproof and pressure resistance, and is often used for power supply of water pumps and submersible equipment.

5.Cable reel rubber cable:

It is used for mobile, such as cranes, helicopter equipment, driving and other places where cables need to move, and has high bending resistance.

Product Features:

1.High flexibility:

The rubber insulation material is soft, which makes the cable have good bending performance and is suitable for equipment and places that require clearance movement or rotation.

2.Strong wear resistance:

The rubber outer layer has good wear resistance, which can effectively prevent the cable from being physically damaged in the environment and extend its service life.

3.Oil and corrosion resistance:

Rubber cables have good resistance to oils, chemicals and preservative gases, and are suitable for electronic environments such as industrial and chemical plants.

4.High and low temperature resistance:

Rubber materials have extremely high heat resistance and can work stably in high temperature environments. They also have good low temperature resistance.

5.Excellent waterproof performance:

Suitable for applications in ventilation or underwater environments, widely used in ventilation places such as outdoor and mines.c

Product Advantages:

Rubber cables have high flexibility, abrasion resistance and anti-oxidant environment ability, making them an ideal choice for a wide range of industrial and outdoor locations. Whether it is a mine, a construction site, or an automation industry, rubber cables can meet the special needs of various environments and provide reliable power and signal transmission. Choosing the right rubber cable can significantly improve the safety and service life of the equipment.

Welding Cable With Single Layer Insulation
Conductor   Size Single Wire Dia. Conductor   Dia. Nominal   thickness Thickness Approx. Overall Dia. Approx. Weight
mm2 mm mm mm mm mm kg/km
6 ≤0.31 3.69 1 -- 5.7 68
10 ≤0.41 4.89 1 -- 6.9 108
16 ≤0.41 6.15 1 -- 8.2 165
25 ≤0.41 7.89 1.2 -- 10.3 257
35 ≤0.41 8.98 1.2 -- 11.4 350
50 ≤0.41 10.7 1.4 -- 13.5 498
70 ≤0.51 12.6 1.4 -- 15.4 684
95 ≤0.51 14.58 1.6 -- 17.8 926
120 ≤0.51 17.34 1.6 -- 20.5 1162

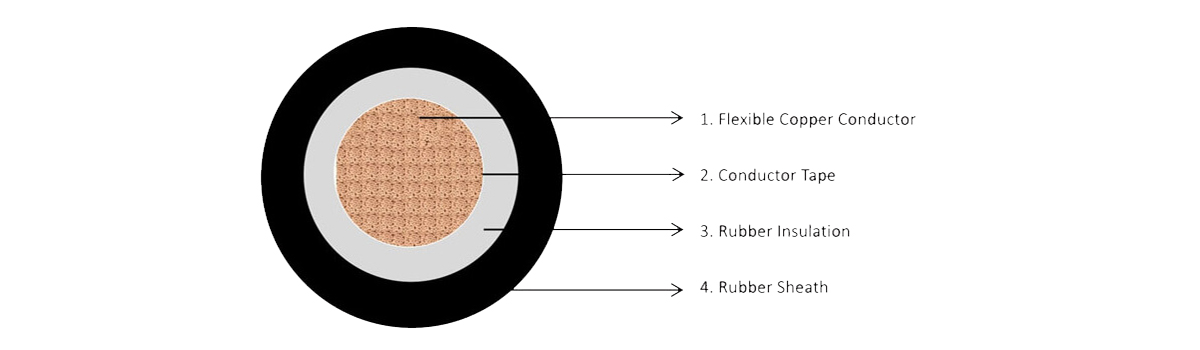

Welding Cable With Double Layer Insulation
Conductor   Size Cu   Conductor Insulation Outer sheath Approx. Overall Dia. Approx. Weight
Single Wire Dia. Conductor   Dia. Nominal   thickness Thickness
mm2 mm mm mm mm mm kg/km
6 ≤0.31 3.69 1 1.4 8.5 114
10 ≤0.41 4.89 1 1.4 9.7 161
16 ≤0.41 6.15 1 1.4 11 227
25 ≤0.41 7.89 1.2 1.4 13.1 333
35 ≤0.41 8.98 1.2 1.4 14.2 433
50 ≤0.41 10.7 1.4 1.4 16.3 595
70 ≤0.51 12.6 1.4 1.4 18.2 794
95 ≤0.51 14.58 1.6 1.5 20.8 1060
120 ≤0.51 17.34 1.6 1.6 23.7 1327

Pre sales

Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
pro_con_03 Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
pro_con_06 Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Sampling inspection items: DC resistance of cable conductors; Finished cable withstand voltage test; Single wire diameter and deviation of conductor; Average insulation thickness and thinnest point; Average thickness and thinnest part of the sheath; Change rate of tensile strength and elongation of insulation and sheath before and after aging; Insulation core withstand voltage test; Thermal extension test; Ozone resistance test; Finished cable bending test, etc.
pro_con_09 Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.

After sales

pro_con_11-12Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
pro_con_14 Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
pro_con_16 After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
pro_con_18 After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.
