Rubber sheathed cable is an outer insulation material made of rubber, which is widely used in industry, construction, mining and outdoor occasions. Due to the excellent wear resistance, softness, oil resistance and weather resistance of rubber material, it is used in handling equipment, mobile power supply, construction site, stage and audio-visual equipment, port area and dam and other applications.

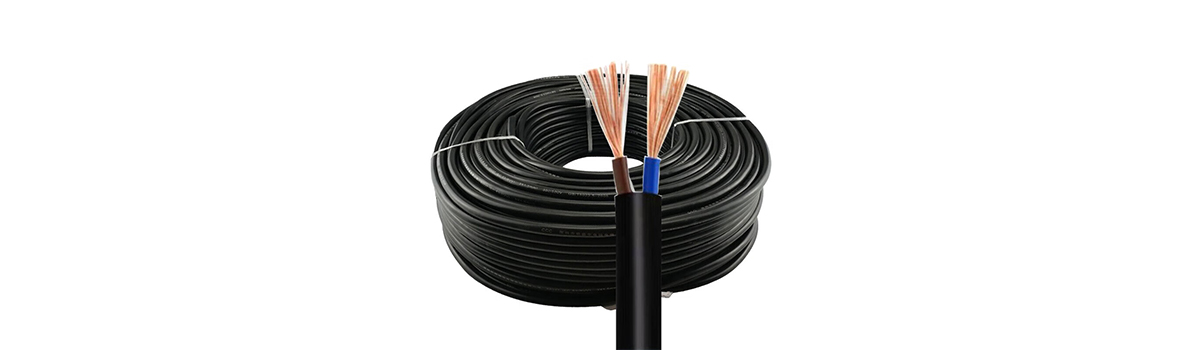

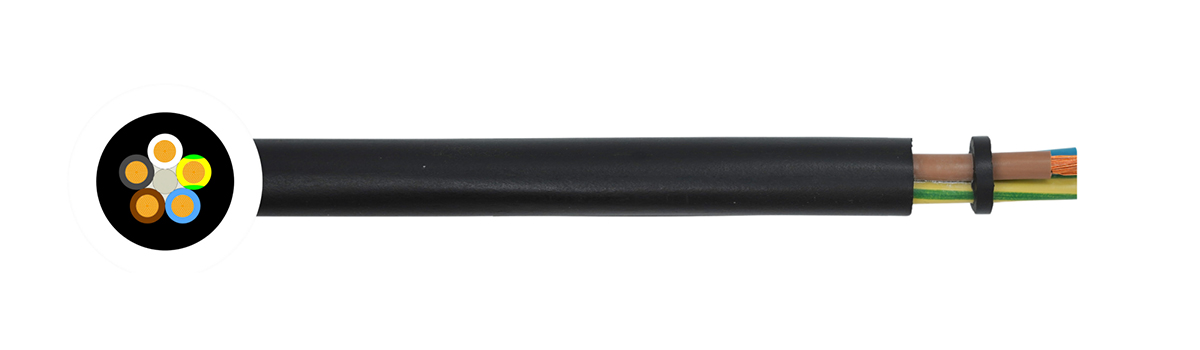

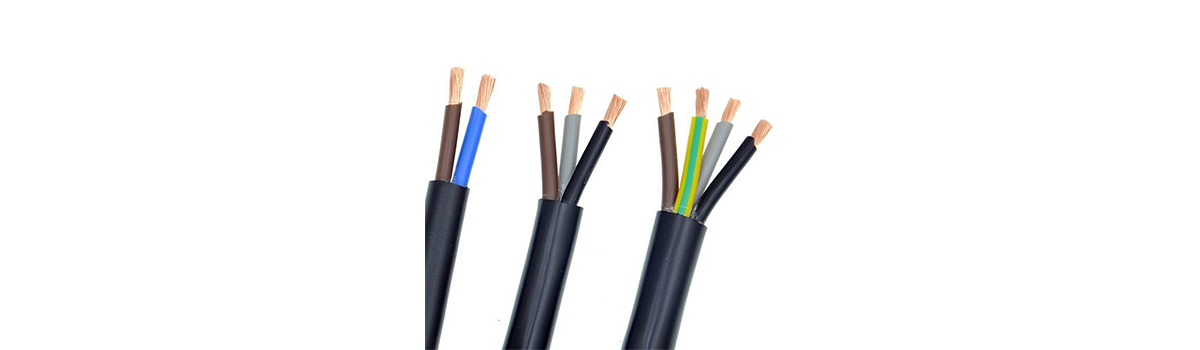

H07RN-F Rubber Cable Indoor or outdoor use for the power supply of mobile or fixed equipment like mobile plants operating on building sites, pumps, portable toolings, power engines, cables reels, etension cables… Especially recommended in case of equipment with explosion risks. Cable particulary suitable for the stripping force on automatic machines. Good performance in casual oil or grease contact.
As part of Eland Cables' portfolio of rubber flexible cables, the tough rubber sheath also makes this cable suitable for use in drainage and water treatment, cold or refrigerated environments, and severe industrial and agricultural environments.
1.Ordinary rubber cable:
Used in general indoor and outdoor occasions, such as industrial equipment, household appliances and power tools.
2.Mining rubber cable:
It has high wear resistance, tensile resistance and corrosion resistance, suitable for mines and underground working environments.
3.Welding rubber cable:
Specially designed for welding equipment, it can withstand the highest operating current and temperature, and is used for the transmission of arc in welding.
4.Rubber cable for submersible pumps:
It has excellent waterproof and pressure resistance, and is often used for power supply of water pumps and submersible equipment.
5.Cable reel rubber cable:
It is used for mobile, such as cranes, helicopter equipment, driving and other places where cables need to move, and has high bending resistance.
1.High flexibility:
The rubber insulation material is soft, which makes the cable have good bending performance and is suitable for equipment and places that require clearance movement or rotation.
2.Strong wear resistance:
The rubber outer layer has good wear resistance, which can effectively prevent the cable from being physically damaged in the environment and extend its service life.
3.Oil and corrosion resistance:
Rubber cables have good resistance to oils, chemicals and preservative gases, and are suitable for electronic environments such as industrial and chemical plants.
4.High and low temperature resistance:
Rubber materials have extremely high heat resistance and can work stably in high temperature environments. They also have good low temperature resistance.
5.Excellent waterproof performance:
Suitable for applications in ventilation or underwater environments, widely used in ventilation places such as outdoor and mines.
Rubber cables have high flexibility, abrasion resistance and anti-oxidant environment ability, making them an ideal choice for a wide range of industrial and outdoor locations. Whether it is a mine, a construction site, or an automation industry, rubber cables can meet the special needs of various environments and provide reliable power and signal transmission. Choosing the right rubber cable can significantly improve the safety and service life of the equipment.
| Rubber Cable H07RN-F | ||||
| Number of cores | Cross-sectional area | Insulation thickness | Overall diameter | Weight |
| mm2 | mm | mm | kg/km | |
| 1 | 1 | 0.8 | 5.7 | 50 |
| 1 | 1.5 | 0.8 | 5.8 | 52 |
| 1 | 2.5 | 0.9 | 6.5 | 67 |
| 1 | 4 | 1 | 7.4 | 92 |
| 1 | 6 | 1 | 8.1 | 119 |
| 1 | 10 | 1.2 | 9.8 | 185 |
| 1 | 16 | 1.2 | 11.35 | 258 |
| 1 | 25 | 1.4 | 13.3 | 375 |
| 1 | 35 | 1.4 | 14.6 | 485 |
| 1 | 50 | 1.6 | 17.2 | 669 |
| 1 | 70 | 1.6 | 19.35 | 892 |
| 1 | 95 | 1.8 | 22.2 | 1160 |
| 1 | 120 | 1.8 | 24.3 | 1436 |
| 1 | 150 | 2 | 25.9 | 1748 |
| 1 | 185 | 2.2 | 29.7 | 2142 |
| 1 | 240 | 2.4 | 31.5 | 2698 |
| 1 | 300 | 2.6 | 36.5 | 3348 |
| 1 | 400 | 2.8 | 40.4 | 4293 |
| 1 | 500 | 3 | 42.6 | 5262 |
| 1 | 630 | 3 | 47.2 | 6790 |
| 2 | 1 | 0.8 | 8.1 | 94 |
| 2 | 1.5 | 0.8 | 9 | 120 |
| 2 | 2.5 | 0.9 | 10.7 | 173 |
| 2 | 4 | 1 | 12.3 | 239 |
| 2 | 6 | 1 | 13.8 | 313 |
| 2 | 10 | 1.2 | 18.6 | 563 |
| 2 | 16 | 1.2 | 21.7 | 830 |
| 2 | 25 | 1.4 | 25.8 | 1211 |
| 3 | 1 | 0.8 | 8.74 | 117 |
| 3 | 1.5 | 0.8 | 8.74 | 147 |
| 3 | 2.5 | 0.9 | 9.68 | 123 |
| 3 | 4 | 1 | 11.48 | 297 |
| 3 | 6 | 1 | 13.2 | 390 |
| 3 | 10 | 1.2 | 14.78 | 705 |
| 3 | 16 | 1.2 | 19.9 | 1031 |
| 3 | 25 | 1.4 | 23.31 | 1512 |
| 3 | 35 | 1.4 | 27.7 | 1907 |
| 3 | 50 | 1.6 | 30.2 | 2651 |
| 3 | 70 | 1.6 | 35.8 | 3484 |
| 3 | 95 | 1.8 | 40.1 | 4594 |
| 4 | 1 | 0.8 | 9.63 | 142 |
| 4 | 1.5 | 0.8 | 46.4 | 180 |
| 4 | 2.5 | 0.9 | 9.63 | 260 |
| 4 | 4 | 1 | 14.6 | 336 |
| 4 | 6 | 1 | 16.4 | 449 |
| 4 | 10 | 1.2 | 21.8 | 833 |
| 4 | 16 | 1.2 | 25.4 | 1138 |
| 4 | 25 | 1.4 | 30.7 | 1714 |
| 4 | 35 | 1.4 | 33.4 | 2204 |
| 4 | 50 | 1.6 | 39.6 | 3029 |
| 4 | 70 | 1.6 | 44.9 | 4121 |
| 4 | 95 | 1.8 | 51.9 | 5361 |
| 4 | 120 | 1.8 | 55.3 | 6546 |
| 4 | 150 | 2 | 60.8 | 8095 |
| 4 | 185 | 2.2 | 65.7 | 9652 |
| 4 | 240 | 2.4 | 75.7 | 12614 |
| 5 | 1.5 | 0.8 | 11.8 | 206 |
| 5 | 2.5 | 0.9 | 14 | 297 |
| 5 | 4 | 1 | 16.2 | 422 |
| 5 | 6 | 1 | 18.2 | 567 |
| 5 | 10 | 1.2 | 24 | 1010 |
| 5 | 16 | 1.2 | 28.2 | 1400 |
| 5 | 25 | 1.4 | 33.9 | 2096 |
| 5 | 35 | 1.4 | 37.2 | 2700 |
| 5 | 50 | 1.6 | 44 | 3730 |
| 5 | 70 | 1.6 | 48 | 5033 |
| 5 | 95 | 1.8 | 53.2 | 6271 |
| 7 | 1.5 | 0.8 | 15.13 | 315 |
| 7 | 2.5 | 0.9 | 17.6 | 445 |
| 12 | 1.5 | 0.8 | 18.2 | 493 |
| 12 | 2.5 | 0.9 | 21.4 | 702 |
| 19 | 1.5 | 0.8 | 22.1 | 710 |
