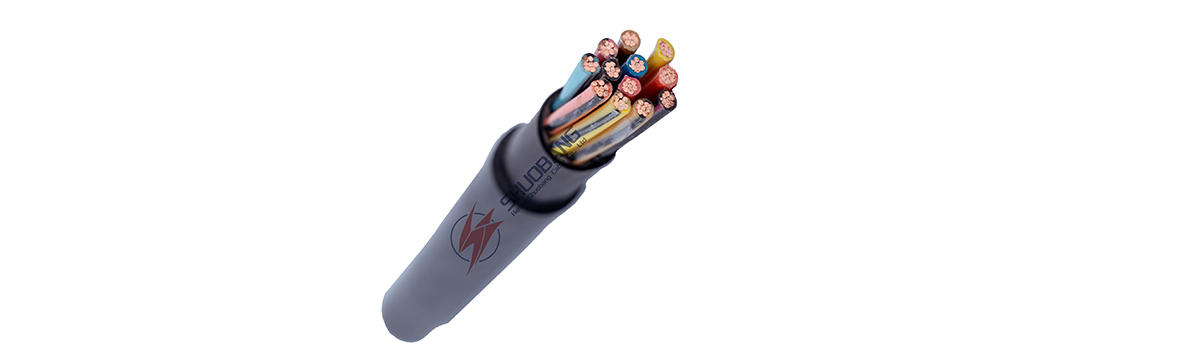

PVC Insulation and Sheath Control Cable 600/1000V

PVC Insulation and Sheath Control Cable 600/1000V
PVC Insulation and Sheath Control Cable 600/1000V
PVC Insulation and Sheath Control Cable 600/1000V

Product Application:

PVC Insulation and Sheath Control Cables are suitable for fixed laying in transmission and distribution lines with an AC frequency of 50Hz and a rated voltage of 6kV and below. They are mainly used in the chemical, transportation and construction fields and are mainly buried underground.

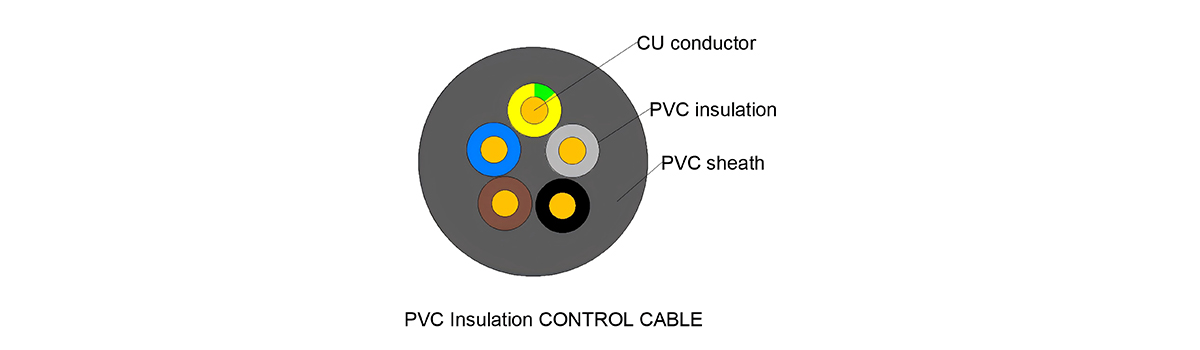

PVC Insulation and Sheath Control Cable
Number of Cores and Nominal Nominal Thickness of Insulation (mm) Approx Overall Dia.mm Approx Weight
kg/km
Max.DC
Resistance at 20℃
Recommending
Current Rating-In
Recommending
Current Rating-In
1x50 1.4 19.1 530 0.387 162 129
1x70 1.4 21.1 650 0.268 198 163
1x95 1.6 23.4 810 0.193 238 200
1x120 1.6 26.3 960 0.153 270 232
1x150 1.8 28.3 1115 0.124 301 265
1x185 2 30.8 1315 0.0991 338 303
1x240 2.2 34.1 1610 0.0754 388 356
1x300 2.4 37 1890 0.0601 434 407
1x400 2.6 42 2455 0.047 480 462
1x500 2.8 45.6 2945 0.0366 528 520
1x630 2.8 49.7 3495 0.0283 577 582
1x800 2.8 55.8 4210 0.0221 605 628
1x1000 3 61 4870 0.0176 638 677

Pre sales

Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
pro_con_03 Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
pro_con_06 Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Sampling inspection items: DC resistance of cable conductors; Finished cable withstand voltage test; Single wire diameter and deviation of conductor; Average insulation thickness and thinnest point; Average thickness and thinnest part of the sheath; Change rate of tensile strength and elongation of insulation and sheath before and after aging; Insulation core withstand voltage test; Thermal extension test; Ozone resistance test; Finished cable bending test, etc.
pro_con_09 Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.

After sales

pro_con_11-12Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
pro_con_14 Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
pro_con_16 After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
pro_con_18 After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.
