Power transmission and distribution system: widely used in power transmission and distribution in cities and villages, connecting substations and user terminals.
Building power supply: power supply outside or inside the building.
Industrial area: connecting industrial equipment and power supply, suitable for power wiring in industrial parks.
Communication system: some types of overhead bundling cables can also be used for signal transmission.

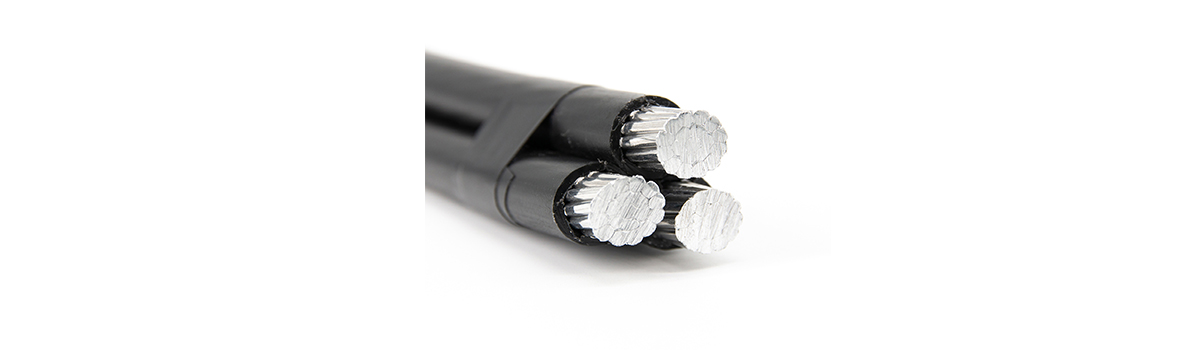

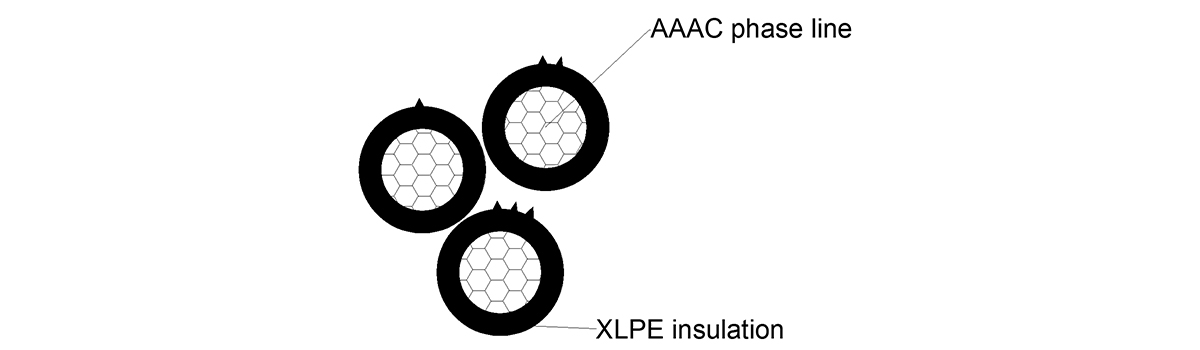

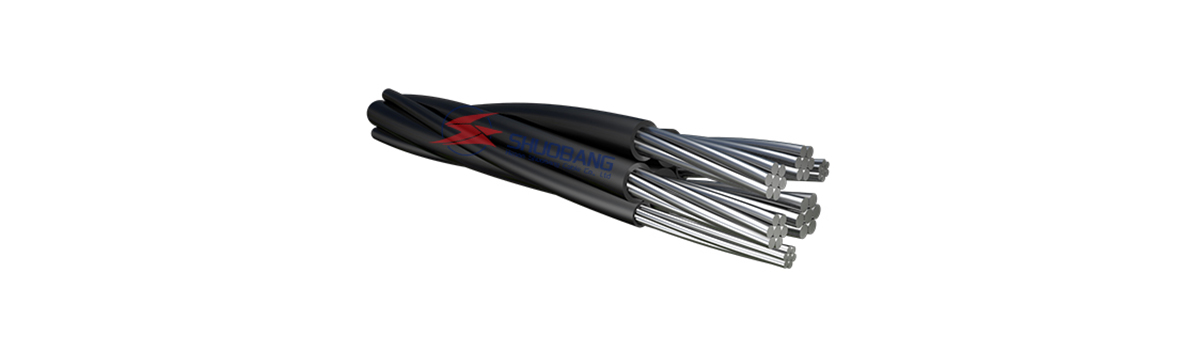

Bundled structure: Multiple conductors are bundled together, which reduces the installation space and improves the neatness of the system.
Insulation material: UV-resistant and corrosion-resistant insulation materials (such as polyethylene or cross-linked polyethylene) are usually used to adapt to outdoor environments.
Mechanical strength: The design has high tensile strength and wind resistance, suitable for long-distance overhead installation.
Conductor material: Aluminum or copper is generally used as the conductor to provide good conductivity.Conductor options: AAC AAAC ACSR Aluminium conductor, round stranded compressed (RM)
Space saving: The bundled structure reduces the space occupied and is suitable for use in narrow or complex environments.
Easy installation: The overhead design reduces the need for underground pipelines and facilitates quick installation and maintenance.
Strong weather resistance: The insulation material has good weather resistance, adapts to various climatic conditions, and prolongs its service life.
Good anti-interference: The bundled structure can reduce electromagnetic interference and improve the stability of signal transmission.
0.6/1kV、6.35/11kV、12.7/22kV 和 19/33kV
LV
600/1000V ABC –Aerial Bundled Cables to BS 7870-5 (AL/XLPE)
600/1000V ABC –Aerial Bundled Cables to NFC 33-209 (AL/XLPE)
600/1000V ABC –Aerial Bundled Cables to HD 626 S1 (AL/XLPE)
600/1000V ABC –Aerial Bundled Cables to IEC 60502 & TNB Specification (AL/PE)
600/1000V ABC –Aerial Bundled Cables to AS/NZS 3560.1 (AL/XLPE)
600/1000V ABC –Aerial Bundled Cables to DES/LVC/ABC Specification & IEC 60502 (AL/XLPE)
MV
6.35/11kV & 12.7/22kV Non Screened ABC –Aerial Bundled Cables to AS/NZS 3599.1(AL/XLPE/HDPE)
6.35/11kV Screened ABC –Aerial Bundled Cables to AS/NZS 3599.1(AL/XLPE /CWS/HDPE)
12.7/22kV Screened ABC –Aerial Bundled Cables to AS/NZS 3599.1(AL/XLPE /CWS/HDPE)
0.6/1 KV ABC (Aerial Bundle) Cable- AS/NZS 3560.1 (AL/XLPE) | ||||
Number of Cores x Nominal Cross Section | Overall Diameter | Weight | Minimum Breaking Load | Current Rating |
No.mm^2 | mm | Kg/Km | KN | A |
2x16 RM | 15 | 140 | 4.4 | 78 |
2x25 RM | 17.6 | 210 | 7 | 105 |
2x35 RM | 19.6 | 270 | 9.8 | 125 |
2x50 RM | 22.8 | 370 | 11.4 | 150 |
2x95 RM | 30.6 | 680 | 15.3 | 230 |
3x25 RM | 19 | 310 | 8.8 | 97 |
3x35 RM | 21.1 | 410 | 9.8 | 120 |
3x50 RM | 24.6 | 550 | 11.4 | 140 |
4x16 RM | 18.1 | 290 | 8.8 | 74 |
4x25 RM | 21.2 | 410 | 14 | 97 |
4x35 RM | 23.7 | 550 | 19.6 | 120 |
4x50 RM | 27.5 | 740 | 28 | 140 |
4x70 RM | 31.9 | 1000 | 39.2 | 175 |
4x95 RM | 36.9 | 1370 | 53.2 | 215 |
4x120 RM | 40.6 | 1690 | 67.2 | 250 |
4x150 RM | 43.9 | 2020 | 84 | 280 |
0.6/1 KV ABC-Aerial Bundled Cable- ES/LVC- IEC 60502-(AL/XLPE) | ||||
Number of cores x nominal cross section | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
mm^2 | kN | A | mm | kg/km |
4x25 RM | 3.5 | 84 | 21.5 | 420 |
4x35 RM | 4.9 | 104 | 23.9 | 550 |
4x120+1x25 RM | 16.8 | 246 | 43.8 | 1800 |
4x185+1x25 RM | 25.9 | 332 | 50.7 | 2700 |
0.6/1 KV ABC-Aerial Bundle Cable- IEC 60502 & TNB-(AL/PE) | ||||
Number of cores x nominal cross section | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
mm^2 | kN | A | mm | kg/km |
1x16+1x 25 RM | 6.4 | 61 | 15.3 | 160 |
3x16+1x 25 RM | 6.4 | 61 | 19 | 290 |
3x25+1x 25 RM | 6.4 | 84 | 23.2 | 400 |
3x35+1x 25 RM | 6.4 | 104 | 25.6 | 500 |
3x50+1x 35 RM | 8.9 | 129 | 30 | 680 |
3x70+1x 50 RM | 12.1 | 167 | 34.9 | 920 |
3x95+1x 70 RM | 18 | 209 | 40.6 | 1270 |
3x120+1x 70 RM | 18 | 246 | 44.1 | 1510 |
3x150+1x 95 RM | 24.2 | 283 | 49.2 | 1870 |
3x185+1x120 RM | 30.8 | 332 | 54.9 | 2340 |
3x25+1x25+1x16 RM | 6.4 | 84 | 23.2 | 470 |
3x35+1x25+1x16 RM | 6.4 | 104 | 25.6 | 560 |
3x50+1x35+1x16 RM | 8.9 | 129 | 30 | 740 |
3x70+1x50+1x16 RM | 12.1 | 167 | 34.9 | 980 |
3x95+1x70+1x16 RM | 18 | 209 | 40.6 | 1330 |
3x120+1x70+1x16 RM | 18 | 246 | 44.1 | 1580 |
3x150+1x95+1x16 RM | 24.2 | 283 | 49.2 | 1940 |
3x185+1x120+1x16 RM | 30.8 | 332 | 54.9 | 2410 |
0.6/1 KV ABC –Aerial Bundled Cables- BS 7870-5 (AL/XLPE) | |||||
Number of Cores x Nominal Cross Section | Overall Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
No.mm^2 | mm | Kg/Km | Ω/Km | KN | A |
1x16 RM | 8 | 74 | 1.91 | 2.5 | 72 |
1x25 RM | 9 | 106 | 1.2 | 4 | 107 |
1x35 RM | 10.5 | 138 | 0.868 | 5.5 | 132 |
1x50 RM | 11.8 | 182 | 0.641 | 8 | 165 |
1x70 RM | 13 | 252 | 0.443 | 10.7 | 205 |
1x95 RM | 15.4 | 333 | 0.32 | 13.7 | 240 |
1x120 RM | 17 | 408 | 0.253 | 18.6 | 290 |
1x150 RM | 19 | 502 | 0.206 | 23.2 | 334 |
1x185 RM | 21 | 611 | 0.164 | 28.7 | 389 |
1x240 RM | 24 | 801 | 0.125 | 37.2 | 467 |
2x16 RM | 15.6 | 147 | 1.91 | 2.5 | 72 |
2x25 RM | 18 | 208 | 1.2 | 4 | 107 |
2x35 RM | 20 | 277 | 0.868 | 5.5 | 132 |
2x50 RM | 23.5 | 361 | 0.641 | 8 | 165 |
2x70 RM | 25.4 | 505 | 0.443 | 10.7 | 205 |
2x95 RM | 30.3 | 666 | 0.32 | 13.7 | 240 |
2x150 RM | 38 | 1004 | 0.206 | 23.2 | 334 |
4x16 RM | 18.8 | 286 | 1.91 | 2.5 | 72 |
4x25 RM | 21.2 | 430 | 1.2 | 4 | 107 |
4x35 RM | 24.1 | 553 | 0.868 | 5.5 | 132 |
4x50 RM | 27.8 | 746 | 0.641 | 8 | 165 |
4x70 RM | 31.8 | 1009 | 0.443 | 10.7 | 205 |
4x95 RM | 37.8 | 1332 | 0.32 | 13.7 | 240 |
4x120 RM | 54.4 | 1632 | 0.253 | 18.6 | 290 |
4x50 + 1x25 RM | 31.9 | 814 | 0.641/1.200 | 8.0/4.0 | 165/107 |
4x50 + 1x35 RM | 31.9 | 845 | 0.641/0.868 | 8.5/5.5 | 165/132 |
4x70 + 1x25 RM | 36 | 1105 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x70 + 2x25 RM | 40 | 1217 | 0.443/1.200 | 10.7/4.0 | 205/107 |
4x95 + 1x25 RM | 41.8 | 1438 | 0.320/1.200 | 13.7/4.0 | 240/107 |
4x95 + 2x25 RM | 42 | 1544 | 0.320/1.200 | 13.7/4.0 | 240/107 |
4x120 + 1x25 RM | 59 | 2050 | 0.253/1.200 | 18.6/4.0 | 290/107 |
0.6/1 KV ABC –Aerial Bundled Cables – NFC 33-209 (AL/XLPE) | |||||
Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
No.mm^2 | mm | Kg/Km | Ω/Km | KN | A |
2x10 RM | 12.8 | 93 | 3.08 | 1.5 | 38 |
4x10 RM | 15.4 | 183 | 3.08 | 1.5 | 38 |
2x16 RM | 14.8 | 129 | 1.91 | 2.3 | 72 |
2x16 RN + 2x1.5 RE | 14.8 | 176 | 1.910/12.100 | 2.3 | 72 |
4x16 RM | 17.8 | 257 | 1.91 | 2.3 | 72 |
4x16 RN + 2x1.5 RE | 17.8 | 304 | 1.910/12.100 | 2.3 | 72 |
2x25 RM | 18 | 202 | 1.2 | 3.8 | 107 |
2x25 RM + 2x1.5 RE | 18 | 249 | 1.200/12.100 | 3.8 | 107 |
4x25 RM | 21.7 | 404 | 1.2 | 3.8 | 107 |
4x25 RM + 2x1.5 RE | 21.7 | 451 | 1.200/12.100 | 3.8 | 107 |
2x35 RM | 20.8 | 269 | 0.868 | 5.2 | 132 |
2x35 RM + 2x1.5 RE | 20.8 | 316 | 0.868/12.100 | 5.2 | 132 |
4x35 RM | 25.1 | 539 | 0.868 | 5.2 | 132 |
4x35 RM + 2x1.5 RE | 25.1 | 586 | 0.868/12.100 | 5.2 | 132 |
2x50 RM | 23.4 | 352 | 0.641 | 7.6 | 165 |
2x50 RM + 2x1.5 RE | 23.4 | 399 | 0.641/12.100 | 7.6 | 165 |
1x54.6 RM + 3x25 RM | 21.7 | 507 | 0.630/1.200 | 3.8 | 107 |
1x54.6 RM + 3x25 RM + 1x16 RM | 24.3 | 573 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x25 RM + 2x16 RM | 29.7 | 639 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x25 RM + 3x16 RM | 31.1 | 705 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
1x54.6 RM + 3x35 RM | 25.1 | 615 | 0.630/0.868 | 5.2 | 132 |
1x54.6 RM + 3x35 RM + 1x16 RM | 28.1 | 680 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 2x16 RM | 34.3 | 748 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 3x16 RM | 35.9 | 814 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
1x54.6 RM + 3x35 RM + 1x25 RM | 28.1 | 714 | 0.630/0.868/1.200 | 5.2/3.8 | 132/107 |
1x54.6 RM + 3x50 RM | 28.2 | 741 | 0.630/0.641 | 7.6 | 165 |
1x54.6 RM + 3x50 RM + 1x16 RM | 31.6 | 806 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 2x16 RM | 38.6 | 875 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 3x16 RM | 40.4 | 940 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
1x54.6 RM + 3x50 RM + 1x25 RM | 31.6 | 841 | 0.630/0.641/1.200 | 7.6/3.8 | 165/107 |
1x54.6 RM + 3x70 RM | 33 | 950 | 0.630/0.443 | 10.2 | 205 |
1x54.6 RM + 3x70 RM + 1x16 RM | 37 | 1014 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 2x16 RM | 45.2 | 1083 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 3x16 RM | 47.3 | 1148 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
1x54.6 RM + 3x70 RM + 1x25 RM | 37 | 1048 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x70 RM + 2x25 RM | 45.2 | 1150 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x70 RM + 3x25 RM | 47.3 | 1250 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
1x54.6 RM + 3x95 RM | 37.4 | 1176 | 0.630/0.320 | 13.5 | 240 |
1x54.6 RM + 3x95 RM + 1x16 RM | 41.9 | 1243 | 0.630/0.320/1.910 | 13.5/2.3 | 240/72 |
0.6/1 KV-ABC -Aerial Bundle Cable- HD 626 S1 (AL/XLPE) | ||||
Number of cores x nominal cross section | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
mm^2 | kN | A | mm | kg/km |
2x 16 RM | 1910 | 2,5 | 72 | 147 |
2x 25 RM | 1200 | 4,0 | 107 | 208 |
2x 35 RM | 0,868 | 5,5 | 132 | 277 |
2x 50 RM | 0,641 | 8,0 | 165 | 361 |
4x 16 RM | 1910 | 2,5 | 72 | 286 |
4x 25 RM | 1200 | 4,0 | 107 | 430 |
4x 35 RM | 0,868 | 5,5 | 132 | 553 |
4x 50 RM | 0,641 | 8,0 | 165 | 746 |
4x 70 RM | 0,443 | 10,7 | 205 | 1009 |
4x 95 RM | 0,320 | 13,7 | 240 | 1332 |
4x 120 RM | 0,253 | 18,6 | 290 | 1632 |
4x 35 + 1x 35 RM | 0,868 / 0,868 | 5,5 / 5,5 | 132 / 132 | 694 |
4x 50 + 1x 25 RM | 0,641 / 1,200 | 8,0 / 4,0 | 165 / 107 | 814 |
4x 50 + 1x 35 RM | 0,641 / 0,868 | 8,5 / 5,5 | 165 / 132 | 845 |
4x 70 + 1x 25 RM | 0,443 / 1,200 | 10,7 / 4,0 | 205 / 107 | 1105 |
4x 70 + 2x 25 RM | 0,443 / 1,200 | 10,7 / 4,0 | 205 / 107 | 1217 |
4x 70 + 1x 35 RM | 0,443 / 0,868 | 10,7 / 5,5 | 205 / 132 | 1150 |
4x 70 + 2x 35 RM | 0,443 / 0,868 | 10,7 / 5,5 | 205 / 132 | 1289 |
4x 95 + 1x 25 RM | 0,320 / 1,200 | 13,7 / 4,0 | 240 / 107 | 1438 |
4x 95 + 1x 35 RM | 0,320 / 0,868 | 13,7 / 5,5 | 240 / 132 | 1467 |
4x 95 + 2x 25 RM | 0,320 / 1,200 | 13,7 / 4,0 | 240 / 107 | 1544 |
6.35/11kV & 12.7/22kV Al/XlPE /HDPE Non-Screened Cables ABC Cable-AS/NZS 3599.1 Standard | ||||||||||
number of cores x nominal cross section | Nominal conductor diameter | Nominal insulation thickness | Nominal insulation screen thickness | Nominal sheath thickness | AAAC/1120 support conductor size | Nominal overall diameter | Weight | Continuous current rating, A | ||
Still air | 1m/s wind | 2m/s wind | ||||||||
mm^2 | mm | mm | mm | mm | No/mm | mm | kg/km | A | A | A |
6.35/11kV | ||||||||||
3x35 | 6.9 | 3.4 | 0.8 | 1.2 | 7/4.75 | 52.4 | 1370 | 110 | 155 | 185 |
3x50 | 8.1 | 3.4 | 0.8 | 1.2 | 7/4.75 | 54.6 | 1530 | 130 | 185 | 225 |
3x70 | 9.7 | 3.4 | 0.8 | 1.2 | 7/4.75 | 57.8 | 1790 | 160 | 235 | 280 |
3x95 | 11.4 | 3.4 | 0.8 | 1.2 | 7/4.75 | 61.3 | 2100 | 195 | 285 | 345 |
3x120 | 12.8 | 3.4 | 0.8 | 1.2 | 19/3.50 | 67.3 | 2540 | 230 | 335 | 405 |
3x150 | 14.2 | 3.4 | 0.8 | 1.2 | 19/3.50 | 70.1 | 2840 | 255 | 380 | 460 |
3x185 | 15.7 | 3.4 | 0.8 | 1.2 | 19/3.50 | 73.1 | 3190 | 295 | 440 | 530 |
12.7/22kV | ||||||||||
3x35 | 6.9 | 5.5 | 0.8 | 1.2 | 7/4.75 | 61 | 1780 | 110 | 155 | 180 |
3x50 | 8.1 | 5.5 | 0.8 | 1.2 | 7/4.75 | 63.3 | 1970 | 130 | 185 | 220 |
3x70 | 9.7 | 5.5 | 0.8 | 1.2 | 7/4.75 | 66.5 | 2260 | 160 | 230 | 275 |
3x95 | 11.4 | 5.5 | 0.8 | 1.2 | 7/4.75 | 69.9 | 2600 | 195 | 285 | 335 |
3x120 | 12.8 | 5.5 | 0.8 | 1.2 | 19/3.50 | 75.9 | 3070 | 225 | 330 | 395 |
3x150 | 14.2 | 5.5 | 0.8 | 1.2 | 19/3.50 | 78.7 | 3390 | 255 | 375 | 450 |
3x185 | 15.7 | 5.5 | 0.8 | 1.2 | 19/3.50 | 81.7 | 3760 | 290 | 435 | 520 |
6.35/11kV & 12.7/22kV AL/XLPE /CWS/HDPE Screened Cables ABC Cable-AS/NZS 3599.1 Standard | ||||||||
Number of Cores x Nominal Cross Section | Diameter of Conductor | Thickness of Insulation | Thickness of Insulation Screen | Copper Wire Screen Stranding | Thickness of Sheath | Galvanized Steel Wire Stranding | Nominal Sectional Area | Breaking Load |
No.mm^2 | mm | mm | mm | No.mm | mm | No.mm | mm^2 | KN |
6.35/11 kV Light Duty Screen | ||||||||
3x35 | 6.9 | 3.4 | 0.8 | 25/0.85 | 1.8 | 7/2.00 | 54.1 | 1820 |
3x35 | 6.9 | 3.4 | 0.8 | 25/0.85 | 1.8 | 19/2.00 | 58.1 | 2130 |
3x50 | 8.1 | 3.4 | 0.8 | 25/0.85 | 1.8 | 19/2.00 | 60.4 | 2300 |
3x70 | 9.7 | 3.4 | 0.8 | 25/0.85 | 1.8 | 19/2.00 | 63.6 | 2570 |
3x95 | 11.4 | 3.4 | 0.8 | 25/0.85 | 1.8 | 19/2.00 | 67 | 2900 |
3x120 | 12.8 | 3.4 | 0.8 | 25/0.85 | 1.8 | 19/2.00 | 69.8 | 3190 |
3x150 | 14.2 | 3.4 | 0.8 | 25/0.85 | 1.9 | 19/2.00 | 73 | 3530 |
3x185 | 15.7 | 3.4 | 0.8 | 25/0.85 | 1.9 | 19/2.00 | 76 | 3890 |
6.35/11 kV Heavy Duty Screen | ||||||||
3x35 | 6.9 | 3.4 | 0.8 | 40/0.85 | 1.8 | 7/2.00 | 54.1 | 2050 |
3x35 | 6.9 | 3.4 | 0.8 | 40/0.85 | 1.8 | 19/2.00 | 58.1 | 2360 |
3x50 | 8.1 | 3.4 | 0.8 | 23/1.35 | 1.8 | 19/2.00 | 62.4 | 2820 |
3x70 | 9.7 | 3.4 | 0.8 | 32/1.35 | 1.8 | 19/2.00 | 65.6 | 3440 |
3x95 | 11.4 | 3.4 | 0.8 | 39/1.35 | 1.8 | 19/2.00 | 69 | 4030 |
3x120 | 12.8 | 3.4 | 0.8 | 39/1.35 | 1.8 | 19/2.00 | 71.8 | 4320 |
3x150 | 14.2 | 3.4 | 0.8 | 39/1.35 | 1.9 | 19/2.00 | 75 | 4670 |
3x185 | 15.7 | 3.4 | 0.8 | 39/1.35 | 1.9 | 19/2.00 | 78 | 5020 |
12.7/22 kV Light Duty Screen | ||||||||
3x35 | 6.9 | 5.5 | 0.8 | 25/0.85 | 1.8 | 7/2.00 | 62.7 | 2280 |
3x35 | 6.9 | 5.5 | 0.8 | 25/0.85 | 1.8 | 19/2.00 | 66.7 | 2580 |
3x50 | 8.1 | 5.5 | 0.8 | 25/0.85 | 1.8 | 19/2.00 | 69 | 2780 |
3x70 | 9.7 | 5.5 | 0.8 | 25/0.85 | 1.9 | 19/2.00 | 72.6 | 3110 |
3x95 | 11.4 | 5.5 | 0.8 | 25/0.85 | 1.9 | 19/2.00 | 76 | 3460 |
3x120 | 12.8 | 5.5 | 0.8 | 25/0.85 | 2 | 19/2.00 | 79.2 | 3810 |
3x150 | 14.2 | 5.5 | 1 | 25/0.85 | 2 | 19/2.00 | 82.8 | 4230 |
3x185 | 15.7 | 5.5 | 1 | 25/0.85 | 2.1 | 19/2.00 | 86.2 | 4650 |
12.7/22 kV Heavy Duty Screen | ||||||||
3x35 | 6.9 | 5.5 | 0.8 | 40/0.85 | 1.8 | 7/2.00 | 62.7 | 2510 |
3x35 | 6.9 | 5.5 | 0.8 | 40/0.85 | 1.8 | 19/2.00 | 66.7 | 2810 |
3x50 | 8.1 | 5.5 | 0.8 | 23/1.35 | 1.8 | 19/2.00 | 71 | 3300 |
3x70 | 9.7 | 5.5 | 0.8 | 32/1.35 | 1.9 | 19/2.00 | 74.6 | 3970 |
3x95 | 11.4 | 5.5 | 0.8 | 39/1.35 | 1.9 | 19/2.00 | 78 | 4600 |
3x120 | 12.8 | 5.5 | 0.8 | 39/1.35 | 2 | 19/2.00 | 81.2 | 4950 |
3x150 | 14.2 | 5.5 | 1 | 39/1.35 | 2 | 19/2.00 | 84.8 | 5360 |
3x185 | 15.7 | 5.5 | 1 | 39/1.35 | 2.1 | 19/2.00 | 88.2 | 5790 |
IEC 60502 6.35/11kV 19/33 kV ABC for Overhead Distribution Lines | |||||||
IEC 60502 6.35/11 kV ABC for Overhead Distribution Lines | |||||||
Number of Cores x Nominal Cross Section | Phase Conductor | Messenger Suspension Unit | Continuous current rating at 300C ambient temp | ||||
Stranding | Nominal Sectional Area | Maximum Conductor Resistance | Stranding | Nominal Sectional Area | Breaking Load | ||
No.mm^2 | No.mm | mm^2 | Ω/Km | No.mm | mm^2 | KN | A |
3X50 + 1X25 | 19/1.78 | 50 | 0.641 | 7/3.0 | 50 | 60 | 116 |
3X70 + 1X50 | 19/.14 | 70 | 0.443 | 7/3.15 | 50 | 62 | 210 |
3X95+ 1X50 | 19/2.52 | 95 | 0.32 | 7/3.0 | 50 | 60 | 173 |
3X185+1X120 | 37/2.52 | 185 | 0.164 | 7/4.67 | 120 | 150 | 259 |
3X150 +1X50 | 37/2.25 | 150 | 0.206 | 7/3.15 | 50 | 62 | 365 |
3X240 +1X50 | 61/2.25 | 240 | 0.125 | 7/3.15 | 50 | 62 | 500 |
IEC 60502 19/33 kV ABC for Overhead Distribution Lines | |||||||
Number of Cores x Nominal Cross Section | Phase Conductor | Messenger Suspension Unit | Continuous current rating at 300C ambient temp | ||||
Stranding | Nominal Sectional Area | Maximum Conductor Resistance | Stranding | Nominal Sectional Area | Breaking Load | ||
No.mm^2 | No.mm | mm^2 | Ω/Km | No.mm | mm^2 | KN | A |
3X50 + 1X50 | 19/1.78 | 50 | 0.641 | 7/3.0 | 50 | 60 | 165 |
3X150+ 1X50 | 37/2.25 | 150 | 0.206 | 7/3.0 | 50 | 60 | 315 |
3X185+1X70 | 37/2.52 | 185 | 0.164 | 7/3.57 | 70 | 91 | 355 |
3X70 +1X50 | 19/2.14 | 7 | 0.443 | 7/3.15 | 50 | 62 | 250 |
3X150 +1X50 | 37/2.25 | 150 | 0.206 | 7/3.15 | 50 | 62 | 370 |
The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
