This product is suitable for fixed installation in AC 50Hz, rated voltage 3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35kV distribution networks or industrial facilities.
Considered when selecting medium voltage cables:
Voltage level: Make sure the rated voltage of the cable matches the application.
Current load: Select the appropriate required load based on the amount of current transmitted
Urban distribution network: distributes the power from high-voltage substation pipelines to various users.
Industry and mining: provides power for large industrial equipment and mines.
Building power supply: used for power supply of large buildings, shopping malls, airports, etc.
New energy power generation: including power pipelines in wind power, photovoltaic and other places.
Durability: Medium voltage cables use high-performance insulation materials with good anti-aging, heat resistance, and moisture resistance, suitable for long-term operation.
Anti-electric interference: The suppression layer can reduce the electromagnetic interference of the cable to young children and prevent discharge.
Flexibility and low voltage: Medium voltage cables can be installed in multiple places such as underground, overhead, indoors, and pipelines, with strong grounding.
Safety: The insulation and enhanced design of medium voltage cables can ensure that the cables have high safety during operation and reduce the risk of electrical accidents.

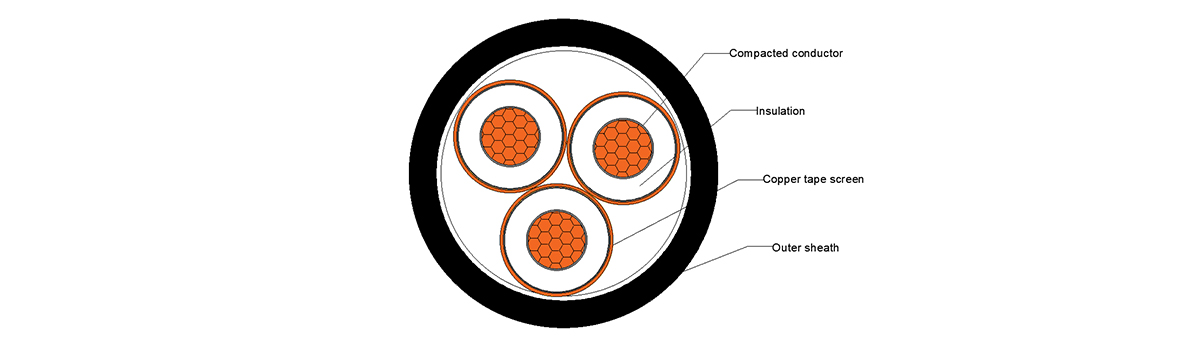

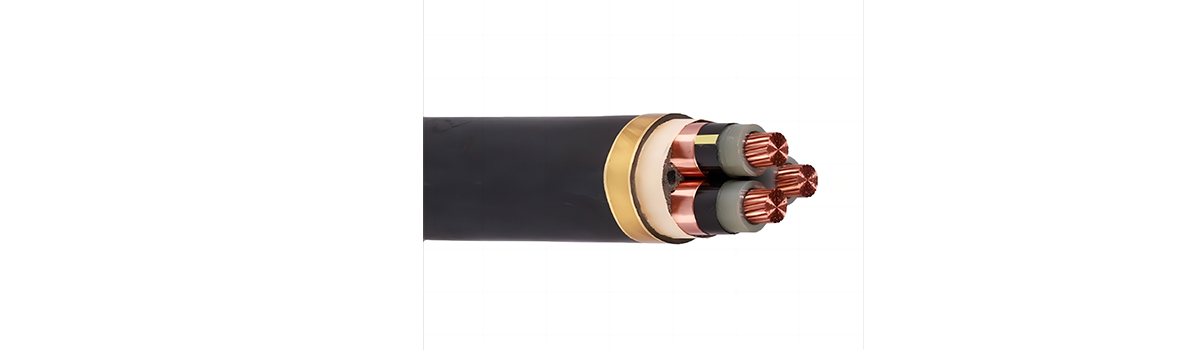

| Medium Voltage Three-core 3.6kV-35kV Copper Cable YJV | ||||||||||||
| Rated Voltage | No. of CORES | Cross-section (MM2) | Conductor | Core diameter (MM) | Conductor shield thickness (MM) | Insulation thickness (MM) | Non-metallic shield specification (MM) | Metallic shield specification (MM) | Belt (MM) | Sheath thickness (MM) | Total diameter (MM) | Weight (KG/KM) |
| 3.6/6KV | 3 | 3×25 | 7/2.18 | 6 | 0.8 | 2.5 | 0.7 | 30×0.10 | 60×0.20 | 2.1 | 35.6 | 1674.8 |
| 3 | 3×35 | 7/2.58 | 7 | 0.8 | 2.5 | 0.7 | 30×0.10 | 60×0.20 | 2.1 | 37.8 | 2030.8 | |
| 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 2.5 | 0.7 | 30×0.10 | 60×0.20 | 2.2 | 41 | 2549.1 | |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 2.5 | 0.7 | 30×0.10 | 60×0.20 | 2.4 | 44.8 | 3260.6 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 2.5 | 0.7 | 40×0.10 | 60×0.20 | 2.5 | 48.5 | 4141 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 2.5 | 0.7 | 40×0.10 | 60×0.20 | 2.6 | 51.7 | 4968.7 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 2.5 | 0.7 | 40×0.10 | 60×0.20 | 2.7 | 55.3 | 5955.5 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 2.5 | 0.7 | 40×0.10 | 60×0.20 | 2.8 | 59 | 7081.9 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 2.6 | 0.7 | 40×0.10 | 60×0.20 | 3 | 64.8 | 8892.8 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 2.8 | 0.7 | 40×0.10 | 60×0.20 | 3.2 | 70.5 | 10875.2 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 3 | 0.7 | 40×0.10 | 60×0.20 | 3.4 | 78.7 | 13928.6 | |
| 6/6KV | 3 | 3×25 | 7/2.18 | 6 | 0.8 | 3.4 | 0.7 | 30×0.10 | 60×0.20 | 2.2 | 39.7 | 1913.5 |
| 3 | 3×35 | 7/2.58 | 7 | 0.8 | 3.4 | 0.7 | 30×0.10 | 60×0.20 | 2.3 | 42 | 2299.2 | |
| 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 3.4 | 0.7 | 30×0.10 | 60×0.20 | 2.4 | 45.2 | 2837.2 | |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.5 | 48.9 | 3551.8 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.6 | 52.5 | 4451.6 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.7 | 55.8 | 5298.8 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.8 | 59.4 | 6306.2 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.9 | 63.1 | 7453.3 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 3.1 | 68.4 | 9253.6 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 3.3 | 73.3 | 11175.4 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 3.5 | 80.6 | 14160.5 | |
| 6/10KV | 3 | 3×25 | 7/2.18 | 6 | 0.8 | 3.4 | 0.7 | 30×0.10 | 60×0.20 | 2.2 | 39.7 | 1913.5 |
| 3 | 3×35 | 7/2.58 | 7 | 0.8 | 3.4 | 0.7 | 30×0.10 | 60×0.20 | 2.3 | 42 | 2299.2 | |
| 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 3.4 | 0.7 | 30×0.10 | 60×0.20 | 2.4 | 45.2 | 2837.2 | |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.5 | 48.9 | 3551.8 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.6 | 52.5 | 4451.6 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.7 | 55.8 | 5298.8 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.8 | 59.4 | 6306.2 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 2.9 | 63.1 | 7453.3 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 3.1 | 68.4 | 9253.6 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 3.3 | 73.3 | 11175.4 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 3.4 | 0.7 | 40×0.10 | 60×0.20 | 3.5 | 80.6 | 14160.5 | |
| 8.7/10KV | 3 | 3×25 | 7/2.18 | 6 | 0.8 | 4.5 | 0.7 | 30×0.10 | 60×0.20 | 2.4 | 44.8 | 2251.6 |
| 3 | 3×35 | 7/2.58 | 7 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.5 | 47.2 | 2655.9 | |
| 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.6 | 50.4 | 3217.3 | |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.7 | 54 | 3957.2 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.8 | 57.7 | 4884.7 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.9 | 60.9 | 5754.2 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3 | 64.5 | 6788 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3.1 | 68.2 | 7961.6 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3.3 | 73.5 | 9801.3 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3.4 | 78.3 | 11725.3 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3.7 | 85.8 | 14799.2 | |
| 8.7/15KV | 3 | 3×25 | 7/2.18 | 6 | 0.8 | 4.5 | 0.7 | 30×0.10 | 60×0.20 | 2.4 | 44.8 | 2251.6 |
| 3 | 3×35 | 7/2.58 | 7 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.5 | 47.2 | 2655.9 | |
| 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.6 | 50.4 | 3217.3 | |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.7 | 54 | 3957.2 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.8 | 57.7 | 4884.7 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 2.9 | 60.9 | 5754.2 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3 | 64.5 | 6788 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3.1 | 68.2 | 7961.6 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3.3 | 73.5 | 9801.3 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3.4 | 78.3 | 11725.3 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 4.5 | 0.7 | 40×0.10 | 60×0.20 | 3.7 | 85.8 | 14799.2 | |
| 12/20KV | 3 | 3×35 | 7/2.58 | 7 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 2.6 | 51.7 | 2992.9 |
| 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 2.7 | 54.9 | 3574.5 | |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 2.8 | 58.5 | 4337.1 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 2.9 | 62.2 | 5287.4 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 3 | 65.4 | 6177 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 3.1 | 69.1 | 7235 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 3.3 | 72.9 | 8463 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 3.4 | 78.1 | 10304.9 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 3.6 | 83 | 12294.3 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 5.5 | 0.7 | 40×0.10 | 60×0.20 | 3.8 | 90.3 | 15377.9 | |
| 18/30KV | 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 3.1 | 66.5 | 4635.5 |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 3.2 | 70.1 | 5457.3 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 3.3 | 73.8 | 6467.1 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 3.4 | 77 | 7409.2 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 3.5 | 80.6 | 8525 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 3.6 | 84.3 | 9780.7 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 3.8 | 89.6 | 11742.3 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 3.9 | 94.3 | 13770.1 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 8 | 0.7 | 40×0.10 | 60×0.20 | 4.2 | 101.8 | 17015.2 | |
| 21/35KV | 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 3.3 | 72.5 | 5259.5 |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 3.4 | 76.1 | 6112 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 3.5 | 79.8 | 7152.4 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 3.6 | 83 | 8121.8 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 3.7 | 86.6 | 9268.2 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 3.8 | 90.3 | 10554.7 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 4 | 95.6 | 12561.9 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 4.1 | 100.3 | 14629.1 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 9.3 | 0.7 | 40×0.10 | 60×0.20 | 4.4 | 107.8 | 17938.4 | |
| 26/35KV | 3 | 3×50 | 10/2.58 | 8.4 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 3.5 | 78 | 5885 |
| 3 | 3×70 | 19/2.18 | 10 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 3.6 | 81.7 | 6767.6 | |
| 3 | 3×95 | 19/2.58 | 11.6 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 3.7 | 85.3 | 7835.1 | |
| 3 | 3×120 | 24/2.58 | 13 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 3.8 | 88.5 | 8829.7 | |
| 3 | 3×150 | 30/2.58 | 14.6 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 3.9 | 92.2 | 10006.5 | |
| 3 | 3×185 | 37/2.58 | 16.2 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 4 | 95.8 | 11319.8 | |
| 3 | 3×240 | 48/2.58 | 18.5 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 4.2 | 101.2 | 13371.4 | |
| 3 | 3×300 | 60/2.58 | 20.6 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 4.3 | 105.9 | 15475.3 | |
| 3 | 3×400 | 61/2.94 | 23.8 | 0.8 | 10.5 | 0.7 | 40×0.10 | 60×0.20 | 4.6 | 113.4 | 18844.4 | |
