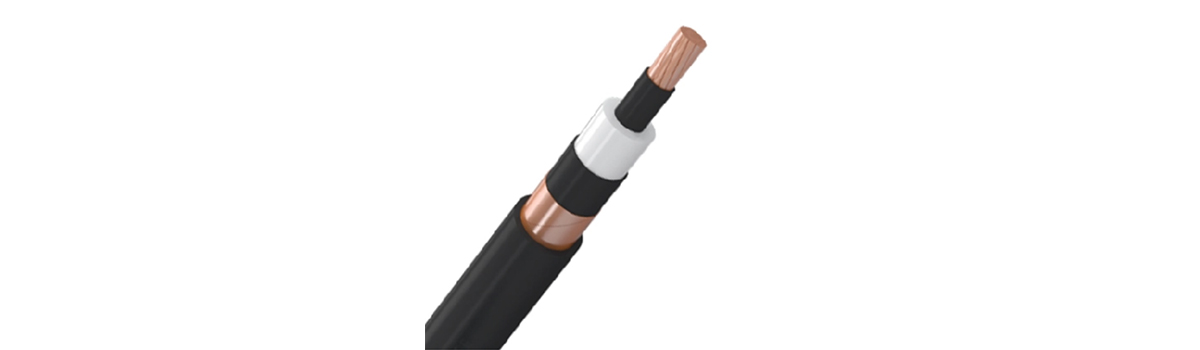

Medium Voltage Power Cable

Medium Voltage Power Cable
Medium Voltage Power Cable

Purpose

MV Power Cables are designed to operate at voltages up to 18/30 (36) kv and are typically used in medium-voltage distribution networks.

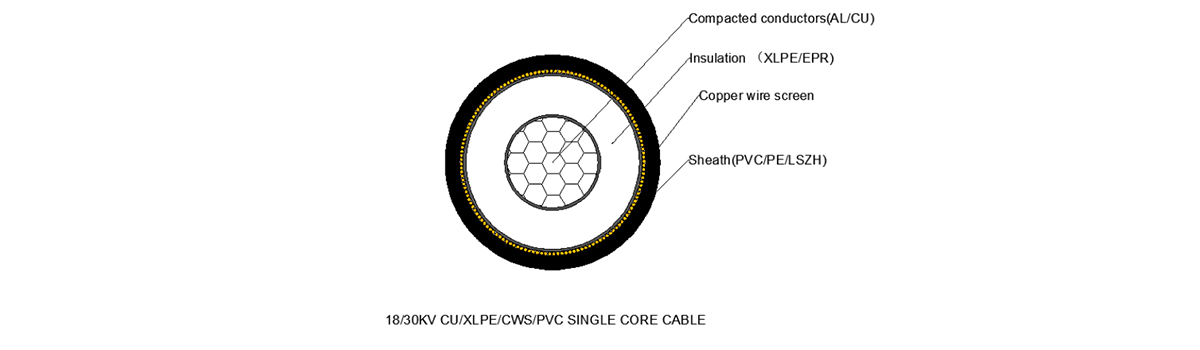

conductor

The conductors can be made from copper or aluminum, and are usually stranded and compacted to form a round, insulated core.Cable sizes can range from 25 up to 630 sq.mm per core, with 1 or 3 insulated cores making up the cable.

Protection

Various protective measures can be employed, such as construction and materials for direct burial, longitudinal and/or radial water tightness, anti-termite protection, and fire safety

5KV 100% TO ICEA STANDARD
CONDUCT OR INSULATIO N
THICKNES S
(MM/MILS)		 SHEATH THICKNES S
(MM/MILS)		 OVERALL DIAMETER (MM/IN.) CABLE WEIGHT (KG/KM/LBS/KFT) AMPACITY(AMPS)
90°C IN DUCT 90°C IN AIR
(D) CU AL CU AL CU AL
4 AWG 2.29/90 1.52/60 17.5 0.69 430 289 299 201 110 86 145 115
2 AWG 2.29/90 1.52/60 18.8 0.74 573 385 366 246 145 115 190 150
1 AWG 2.29/90 1.52/60 19.8 0.78 670 450 406 273 170 130 225 175
1/0 AWG 2.29/90 1.52/60 20.8 0.82 792 532 460 309 195 150 260 200
2/0 AWG 2.29/90 1.52/60 23.1 0.91 989 665 571 384 220 170 300 230
3/0 AWG 2.29/90 2.03/80 24.6 0.97 1178 792 652 438 250 195 345 270
4/0 AWG 2.29/90 2.03/80 25.9 1.02 1409 947 744 500 290 225 400 310
250 MCM 2.29/90 2.03/80 27.2 1.07 1613 1084 829 557 320 250 445 345
350 MCM 2.29/90 2.03/80 29.7 1.17 2129 1431 1031 693 385 305 550 430
500 MCM 2.29/90 2.03/80 33.5 1.32 2913 1958 1345 904 470 370 695 545
750 MCM 2.29/90 2.03/80 38.6 1.52 4187 2814 1821 1224 585 470 900 710
1000 MCM 2.29/90 2.03/80 42.4 1.67 5426 3647 2267 1524 670 545 1075 855
5kV 133 % to ICEA S tandard
4 AWG 2.92/115 1.52/60 18.8 0.74 464 312 335 225 120 86 110 115
2 AWG 2.92/115 1.52/60 20.1 0.79 611 411 405 272 155 115 145 150
1 AWG 2.92/115 1.52/60 21.1 0.83 711 478 448 301 180 130 170 175
1/0 AWG 2.92/115 1.52/60 23.1 0.91 884 594 552 371 210 150 200 200
2/0 AWG 2.92/115 1.52/60 24.6 0.97 1038 698 620 417 235 170 225 230
3/0 AWG 2.92/115 2.03/80 25.7 1.01 1226 824 698 469 270 195 270 270
4/0 AWG 2.92/115 2.03/80 27.2 1.07 1461 982 797 536 310 225 305 310
250 MCM 2.92/115 2.03/80 28.4 1.12 1669 1122 884 594 345 250 355 345
350 MCM 2.92/115 2.03/80 31.2 1.23 2192 1473 1094 735 415 305 430 430
500 MCM 2.92/115 2.03/80 35.1 1.38 2983 2005 1413 950 505 370 530 545
750 MCM 2.92/115 2.03/80 39.9 1.57 4261 2864 1895 1274 630 470 665 710
1000 MCM 2.92/115 2.03/80 45.2 1.78 5654 3800 2495 1677 720 545 770 855
8KV 100% TO ICEA STANDARD
CONDUCTOR INSULATION THICKNESS (MM/MILS) SHEATH
THICKNESS (MM/MILS)		 OVERALL DIAMETER (MMIN.) CABLE WEIGHT (KG/KM/ LBS/KFT) AMPACITY(AMPS)
90掳C IN
DUCT		 90掳CIN
AIR
(D) CU AL CU AL CU AL
4 AWG 2.92/115 2.03/80 36.1 1.42 1775 1193 1382 929 115 89 120 95
2 AWG 2.92/115 2.03/80 39.4 1.55 2254 1515 1629 1095 150 115 165 125
1 AWG 2.92/115 2.03/80 41.7 1.64 2662 1789 1785 1200 170 135 185 145
1/0 AWG 2.92/115 2.80/110 45.2 1.78 3211 2158 2126 1429 195 150 215 170
2/0 AWG 2.92/115 2.80/110 47.8 1.88 3709 2493 2447 1645 220 170 245 190
3/0 AWG 2.92/115 2.80/110 50.5 1.99 4376 2941 2729 1834 250 195 285 220
4/0 AWG 2.92/115 2.80/110 53.6 2.11 5137 3453 3074 2066 285 220 325 255
250 MCM 2.92/115 2.80/110 56.4 2.22 5807 3903 3382 2273 310 245 360 280
350 MCM 2.92/115 2.80/110 62 2.44 7546 5072 4161 2797 375 295 435 345
500 MCM 2.92/115 3.56/140 70.1 2.76 10175 6839 5349 3595 450 355 535 425
750 MCM 2.92/115 3.56/140 81.8 3.22 14624 9829 7372 4955 545 440 670 540
1000 MCM 2.92/115 3.56/140 90.2 3.55 18604 12504 9080 6103 615 510 770 635
8kV 133% to ICEA Standard
2 AWG 3.56/140 2.03/80 42.2 1.66 2415 1623 1791 1204 150 115 165 125
1 AWG 3.56/140 2.80/110 45.7 1.8 2979 2002 2102 1413 170 135 185 145
1/0 AWG 3.56/140 2.80/110 48 1.89 3395 2282 2311 1553 195 150 215 170
2/0 AWG 3.56/140 2.80/110 50.5 1.99 3901 2622 2639 1774 220 170 245 190
3/0 AWG 3.56/140 2.80/110 53.1 2.09 4576 3076 2929 1969 250 195 285 220
4/0 AWG 3.56/140 2.80/110 56.4 2.22 5347 3594 3285 2208 285 220 325 255
250 MCM 3.56/140 2.80/110 59.2 2.33 6027 4051 3602 2421 310 245 360 280
350 MCM 3.56/140 2.80/110 64.8 2.55 7784 5232 4399 2957 375 295 435 345
500 MCM 3.56/140 3.56/140 74.4 2.93 10682 7180 5856 3936 450 355 535 425
750 MCM 3.56/140 3.56/140 84.6 3.33 14929 10034 7679 5161 545 440 670 540
1000 MCM 3.56/140 3.56/140 93 3.66 18937 12728 9413 6327 615 510 770 635
5KV 100% TO ICEA STANDARD
CONDUCT OR INSULATIO N
THICKNES S(MM/		 SHEATH THICKNES S
(MM/MILS)		 OVERALL DIAMETER (MM/IN.) CABLE WEIGHT (KG/KM/ LBS/KFT) AMPACITY(AMPS)
90掳CIN
DUCT		 90掳C IN
AIR
(D) CU AL CU AL CU AL
2 AWG 4.45/175 2.80/110 47.5 1.87 2809 1888 2186 1469 150 115 165 125
1 AWG 4.45/175 2.80/110 49.8 1.96 3242 2179 2366 1590 170 135 185 145
1/0 AWG 4.45/175 2.80/110 51.8 2.04 3669 2466 2583 1736 195 150 215 170
2/0 AWG 4.45/175 2.80/110 54.4 2.14 4185 2813 2924 1965 220 170 245 190
3/0 AWG 4.45/175 2.80/110 56.9 2.24 4873 3275 3226 2168 250 195 285 220
4/0 AWG 4.45/175 2.80/110 60.2 2.37 5658 3803 3595 2416 285 220 325 255
250 MCM 4.45/175 2.80/110 63 2.48 6350 4268 3925 2638 310 245 360 280
350 MCM 4.45/175 3.56/140 69.6 2.74 8226 5529 4841 3254 375 295 435 345
500 MCM 4.45/175 3.56/140 78.2 3.08 11080 7447 6253 4203 450 355 535 425
750 MCM 4.45/175 3.56/140 88.4 3.48 15374 10333 8122 5459 545 440 670 540
1000 MCM 4.45/175 3.56/140 97.5 3.84 19547 13138 10023 6737 615 510 770 635
15kV 133% to ICEA Standard
2 AWG 5.59/220 2.80/110 52.3 2.06 3160 2124 2537 1705 150 115 165 125
1 AWG 5.59/220 2.80/110 54.6 2.15 3606 2424 2729 1834 170 135 185 145
1/0 AWG 5.59/220 2.80/110 56.9 2.24 4045 2719 2959 1989 195 150 215 170
2/0 AWG 5.59/220 2.80/110 59.2 2.33 4575 3075 3313 2227 220 170 245 190
3/0 AWG 5.59/220 2.80/110 62 2.44 5279 3548 3632 2441 250 195 285 220
4/0 AWG 5.59/220 2.80/110 65 2.56 6082 4088 4019 2701 285 220 325 255
250 MCM 5.59/220 2.80/110 68.8 2.71 6884 4627 4459 2997 310 245 360 280
350 MCM 5.59/220 3.56/140 75.9 2.99 8954 6018 5569 3743 375 295 435 345
500 MCM 5.59/220 3.56/140 83.1 3.27 11617 7808 6790 4564 450 355 535 425
750 MCM 5.59/220 3.56/140 93.5 3.68 15969 10733 8717 5859 545 440 670 540
1000 MCM 5.59/220 3.56/140 102.6 4.04 20196 13574 10672 7173 615 510 770 635
25KV 100% TO ICEA STANDARD
CONDUCTO R INSULATION THICKNESS (MM/MILS) SHEATH THICKNESS (MM/MILS) OVERALL DIAMETER (MM/IN.) CABLE WEIGHT (KG/KM/ LBS/KFT) AMPACITY(AMPS)
90掳C IN
DUCT		 90掳C IN
AIR
(D) CU AL CU AL CU AL
1 AWG 6.60/260 2.80/110 57.9 2.28 4038 2714 3248 2183 185 145 210 165
1/0 AWG 6.60/260 2.80/110 60.2 2.37 4510 3031 3492 2347 210 165 240 185
2/0 AWG 6.60/260 2.80/110 62.2 2.45 5117 3439 3867 2599 235 185 275 215
3/0 AWG 6.60/260 2.80/110 65.5 2.58 5874 3948 4291 2884 270 210 315 245
4/0 AWG 6.60/260 3.56/140 68.6 2.7 6698 4502 4707 3164 305 240 360 285
250 MCM 6.60/260 3.56/140 72.9 2.87 7674 5158 5329 3582 335 265 400 315
350 MCM 6.60/260 3.56/140 78.5 3.09 9547 6417 6246 4198 400 315 490 385
500 MCM 6.60/260 3.56/140 85.1 3.35 12216 8211 7509 5047 485 385 600 475
750 MCM 6.60/260 3.56/140 96 3.78 16854 11328 9645 6483 585 475 745 600
1000 MCM 6.60/260 3.56/140 104.4 4.11 21054 14151 11611 7804 660 545 860 705
25kV 13 3% to ICEA S tandard
1/0 AWG 8.76/345 3.56/140 72.1 2.84 5813 3907 4791 3220 210 165 240 185
2/0 AWG 8.76/345 3.56/140 74.2 2.92 6454 4338 5207 3500 235 185 275 215
3/0 AWG 8.76/345 3.56/140 76.7 3.02 7167 4817 5584 3753 270 210 315 245
4/0 AWG 8.76/345 3.56/140 79.8 3.14 8042 5405 6052 4068 305 240 360 285
250 MCM 8.76/345 3.56/140 82.6 3.25 8824 5931 6479 4355 335 265 400 315
350 MCM 8.76/345 3.56/140 87.9 3.46 10770 7239 7469 5020 400 315 490 385
500 MCM 8.76/345 3.56/140 95.5 3.76 13658 9180 8951 6016 485 385 600 475
1.8-3 kV RG7H1R RG7H1OR Medium
Formation Approx
conductor
Ø		 Average
insulation
thickness		 Max
external
Ø		 Approx
cable
weight		 Current rating
A
in air buried*
n°xmm2 mm mm mm kg/km trefoil flat trefoil flat
1x10 4,0 2,0 14,0 290 87 111 99 104
1x16 4,8 2,0 15,0 350 114 145 126 133
1x25 6,0 2,0 16,0 450 149 190 162 171
1x35 7,0 2,0 17,0 550 181 230 193 204
1x50 8,1 2,0 18,5 670 219 276 227 241
1x70 9,7 2,0 20,5 880 275 345 278 294
1x95 11,4 2,0 22,0 1100 339 422 332 351
1x120 12,9 2,0 24,5 1400 393 487 377 399
1x150 14,3 2,0 26,0 1650 446 550 421 445
1x185 16,0 2,0 27,5 2000 516 635 477 500
1x240 18,3 2,0 30,0 2550 617 745 550 580
1x300 21,0 2,0 32,5 3150 709 855 621 650
1x400 23,2 2,0 35,5 3950 824 990 702 735
1x500 26,1 2,2 40,0 5050 954 1140 790 830
1x630 30,3 2.4 44 6300 1102 1300 885 93
