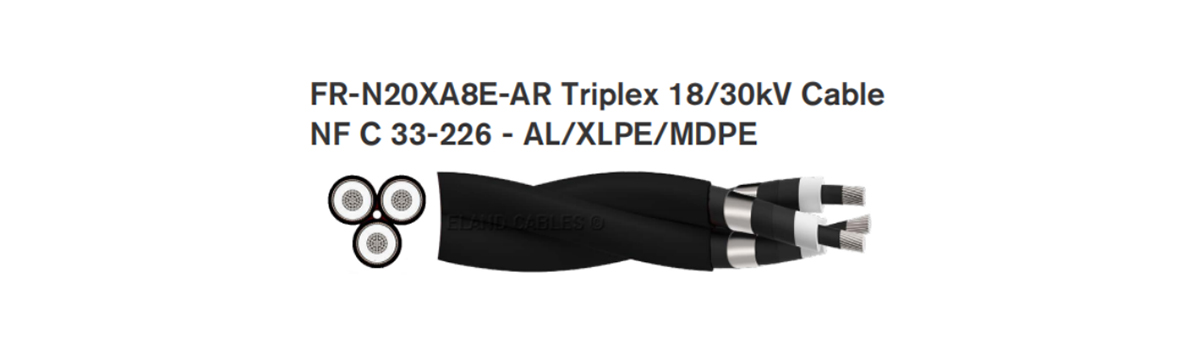

LV & MV Aerial Bundle Cable (ABC Cable)

LV & MV Aerial Bundle Cable (ABC Cable)
LV & MV Aerial Bundle Cable (ABC Cable)

CHARACTERISTICS

Voltage Rating Uo/U18/30 (36)kV

Temperature Rating Maximum conductor operating temperature: 90°C Initial temperature at S.C.C for metallic screen: 80°C Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius 20 x overall diameter

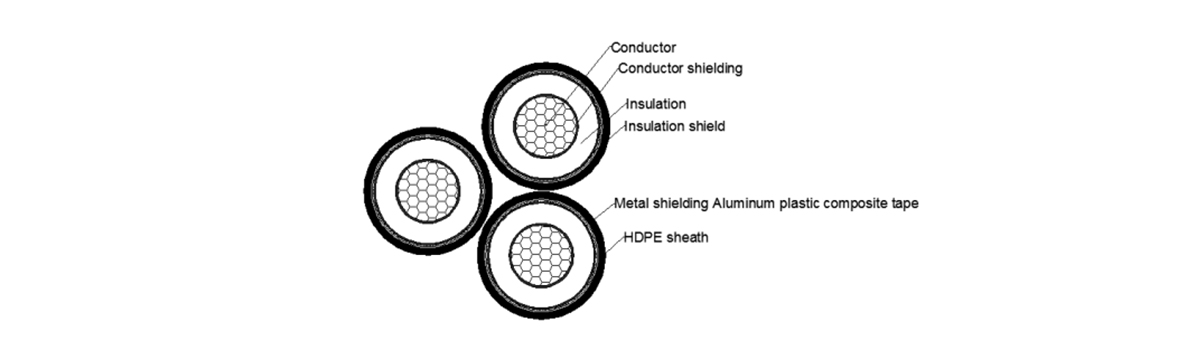

CONSTRUCTION

Conductor Class 2 stranded Aluminium

Conductor Screen Extruded inner Semi Conductor (Bonded Type)

Insulation XLPE (Cross-Linked Polyethylene)

Insulation Screen Extruded Inner Semi Conductor (Strippable Type)

Waterblocking Semi Conductive Longitudinal Waterblocking Tape

Aluminium Tape Applied Longitudinally

She ath MDPE (Medium Density Polyethylene)

She ath Colour Black

NF C33-226 12/20 kV
Section mm
outer Diameter
(mm)
Max DC Resist.
/km
Max.tensile
strength (daN)
Bending radius (mm) Weight Approx.
(kg/km)
single core cables
50 29 0.641 150 377 754 700
95 32 0.32 285 416 832 950
150 32 0.206 450 416 832 1000
240 36.5 0.125 720 475 950 1400
400 42 0.078 1200 546 1092 1950
630 52.5 0.047 1890 683 1365 3100
1200 66 0.025 360o 858 1716 5200
bunched cables
3x1x50 62.5 0.641 450 377 754 2100
3x1x95 69 0.32 855 416 832 2800
3x1x150 69 0.206 1350 416 832 3050
3x1x240 78.5 0.125 2160 475 950 4150
3x1x400 90 0.078 3600 546 1092 5800
