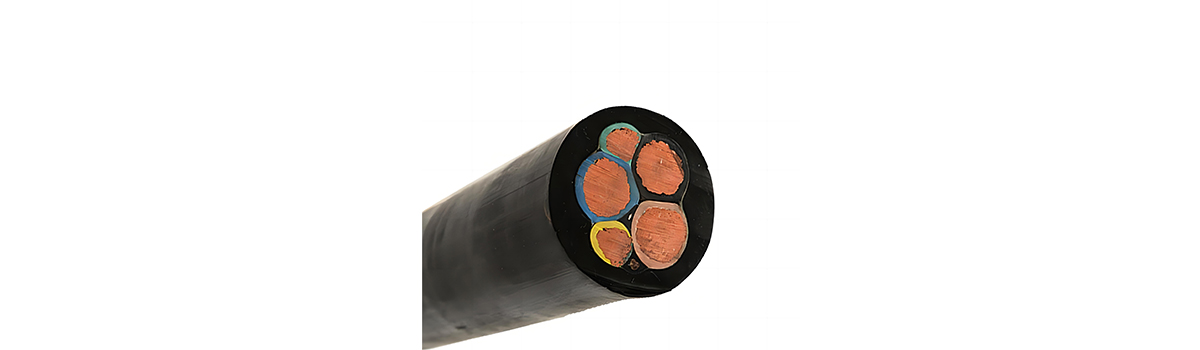

Low Smoke Halogen-free Rubber Cable H07ZZ-F LSZH

Low Smoke Halogen-free Rubber Cable H07ZZ-F LSZH
Low Smoke Halogen-free Rubber Cable H07ZZ-F LSZH

Product Description:

Rubber cable is an outer insulation material made of rubber, which is widely used in industry, construction, mining and outdoor occasions. Due to the excellent wear resistance, softness, oil resistance and weather resistance of rubber material, rubber cable is particularly suitable for applications that require high mechanical strength and flexibility and are exposed to database environments.

H07ZZ-F cables are widely used in almost all industrial fields where installations are subject to moderate mechanical stress, such as powering mobile power supplies, UPS connections, stage lighting and audio-visual equipment.

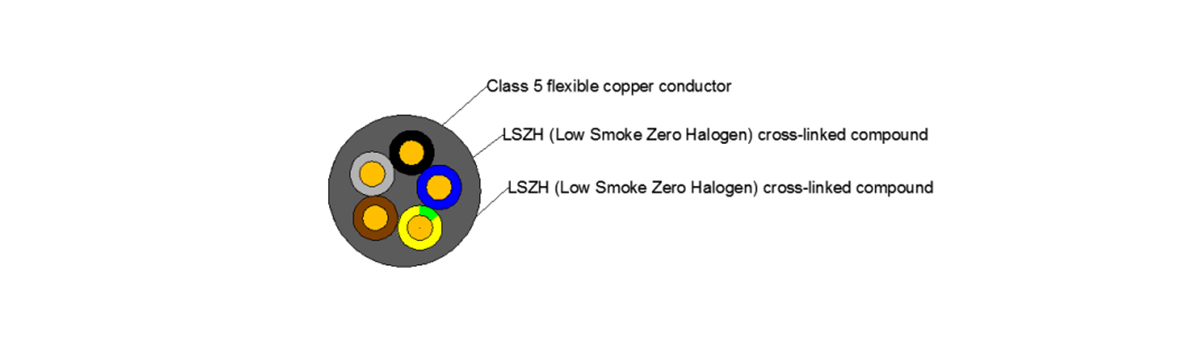

CONSTRUCTION:

Conductor Class 5 flexible copper conductor

Insulation LSZH (Low Smoke Zero Halogen) cross-linked compound

Sheath LSZH (Low Smoke Zero Halogen) cross-linked compound

Core Identification

1 core: Black

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

6 core and above: Black with White numbers

Green/Yellow

Sheath Colour

Black

*Note: Sizes from 5x35mm2 are not harmonised (H07ZZ-F)

Application scenarios of various types of rubber cables:

1.Ordinary rubber cable:

Used in general indoor and outdoor occasions, such as industrial equipment, household appliances and power tools.

2.Mining rubber cable:

It has high wear resistance, tensile resistance and corrosion resistance, suitable for mines and underground working environments.

3.Welding rubber cable:

Specially designed for welding equipment, it can withstand the highest operating current and temperature, and is used for the transmission of arc in welding.

4.Rubber cable for submersible pumps:

It has excellent waterproof and pressure resistance, and is often used for power supply of water pumps and submersible equipment.

5.Cable reel rubber cable:

It is used for mobile, such as cranes, helicopter equipment, driving and other places where cables need to move, and has high bending resistance.

Features:

Voltage Rating Uo/U :450/750V

Temperature Rating

Fixed: -20°C to +90°C

Flexed: -5°C to +50°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 6 x overall diameter



Product Features:

1.High flexibility:

The rubber insulation material is soft, which makes the cable have good bending performance and is suitable for equipment and places that require clearance movement or rotation.

2.Strong wear resistance:

The rubber outer layer has good wear resistance, which can effectively prevent the cable from being physically damaged in the environment and extend its service life.

3.Oil and corrosion resistance:

Rubber cables have good resistance to oils, chemicals and preservative gases, and are suitable for electronic environments such as industrial and chemical plants.

4.High and low temperature resistance:

Rubber materials have extremely high heat resistance and can work stably in high temperature environments. They also have good low temperature resistance.

5.Excellent waterproof performance:

Suitable for applications in ventilation or underwater environments, widely used in ventilation places such as outdoor and mines.

Product Advantages:

Rubber cables have high flexibility, abrasion resistance and anti-oxidant environment ability, making them an ideal choice for a wide range of industrial and outdoor locations. Whether it is a mine, a construction site, or an automation industry, rubber cables can meet the special needs of various environments and provide reliable power and signal transmission. Choosing the right rubber cable can significantly improve the safety and service life of the equipment.

Implementation Standards:

H07ZZ-F EN 50525-3-21, HD 22-13, CEI 20-19 Part 13, EN 60228 Flame Retardant according to IEC/EN 60332-3-10



ELAND PART NO. NO. OF
CORES
NOMINAL CROSS
SECTIONAL AREA
mm2
NOMINAL
OVERALL DIAMETER
mm
NOMINAL
WEIGHT
kg/km
A2 GLANDS
Brass
A2PL GLAND
Plastic
A6Z10015 1 1.5 6.4 63 - -
A6Z10025 1 2.5 7.1 76 - -
A6Z1004 1 4 8.1 107 20S 20
A6Z1006 1 6 8.85 140 20S 20
A6Z1010 1 10 10.7 213 20S 20
A6Z1016 1 16 12.1 291 20 25
A6Z1025 1 25 14.25 415 25 25
A6Z1035 1 35 16.1 539 25 25
A6Z1050 1 50 18.55 740 25 32
A6Z1070 1 70 20.95 989 32 32
A6Z1095 1 95 23.4 1290 32 40
A6Z1120 1 120 25.7 1592 40 40
A6Z1150 1 150 28.3 1957 40 40
A6Z1185 1 185 31 2350 50S 50
A6Z1240 1 240 34.45 3099 50 63
A6Z1300 1 300 37.7 3687 50 -
A6Z1400 1 400 42.1 4850 63S -
A6Z1500 1 500 46.65 5998 63 -
A6Z02010 2 1 8.58 112 - -
A6Z02015 2 1.5 9.75 135 20S 20
A6Z02025 2 2.5 11.65 190 20 25
A6Z02040 2 4 13.45 255 25 -
A6Z02060 2 6 14.95 335 25 -
A6Z0210 2 10 20.15 590 323 -
A6Z0216 2 16 22.95 821 32 -
A6Z0225 2 25 27.5 1172 40 -
A6Z03010 3 1 9.5 125 - -
A6Z03015 3 1.5 10.55 129 20 20
A6Z03025 3 2.5 12.45 250 25 25
A6Z03040 3 4 14.45 330 25 -
A6Z03060 3 6 16.05 440 25 -
A6Z0310 3 10 21.65 800 32 -
A6Z0316 3 16 24.7 1150 40 -
A6Z0325 3 25 29.55 1680 50S -
A6Z0335 3 35 33.2 2170 50S -
A6Z04010 4 1 10.55 170 20S -
A6Z04015 4 1.5 11.65 196 20 25
A6Z04025 4 2.5 13.8 275 25 25
A6Z04040 4 4 15.95 388 25 25
A6Z04060 4 6 17.85 515 32 32
A6Z0410 4 10 23.7 882 40 40
A6Z0416 4 16 26.95 1234 40 40
A6Z0425 4 25 32.75 1811 50S 50
A6Z0435 4 35 36.8 2365 50 63
A6Z0450 4 50 42.6 3212 63S -
A6Z0470 4 70 48.35 4320 63 -
A6Z0495 4 95 54.7 5572 73S -
A6Z04120 4 120 59.5 6930 75 -
A6Z04150 4 150 65.5 8419 - -
A6Z04185 4 185 72 10165 - -
A6Z04240 4 240 81.5 13420 - -
A6Z05010 5 1 11.65 205 20 -
A6Z05015 5 1.5 12.8 242 25 25
A6Z05025 5 2.5 15.15 341 25 25
A6Z05040 5 4 17.75 495 32 32
A6Z05060 5 6 19.85 642 32 32
A6Z0510 5 10 26 1090 40 40
A6Z0516 5 16 29.85 1534 50S 50
A6Z0525 5 25 36.2 2291 50 63
A6Z0535 5 35 39.5 2700 - -
A6Z0550 5 50 44.2 3730 63S -
A6Z0570 5 70 50.4 5022 - -
A6Z0595 5 95 56.2 6520 - -
A6Z05120 5 120 64.1 8080 - -
A6Z05150 5 150 70.1 8660 - -
A6Z07015 7 1.5 16.7 355 25 32
A6Z12015 12 1.5 20 660 32 32
A6Z19015 19 1.5 27.5 788 40 40
A6Z27015 27 1.5 31.5 1077 40 40
A6Z37015 37 1.5 36.5 1358 50S 50
