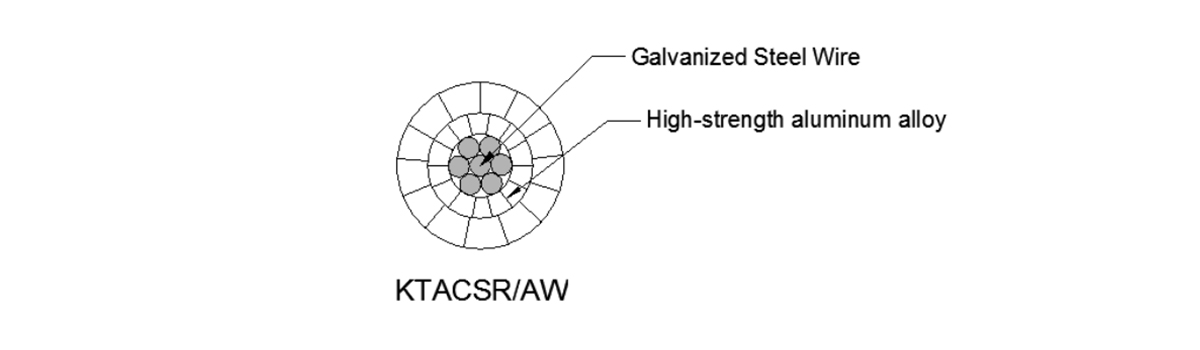

KTACSR & KTACSR/AW- The full name: HIGH STRENGTH – THERMAL RESISTANT ALUMINIUM ALLOY CONDUCTOR STEEL REINFORCED.

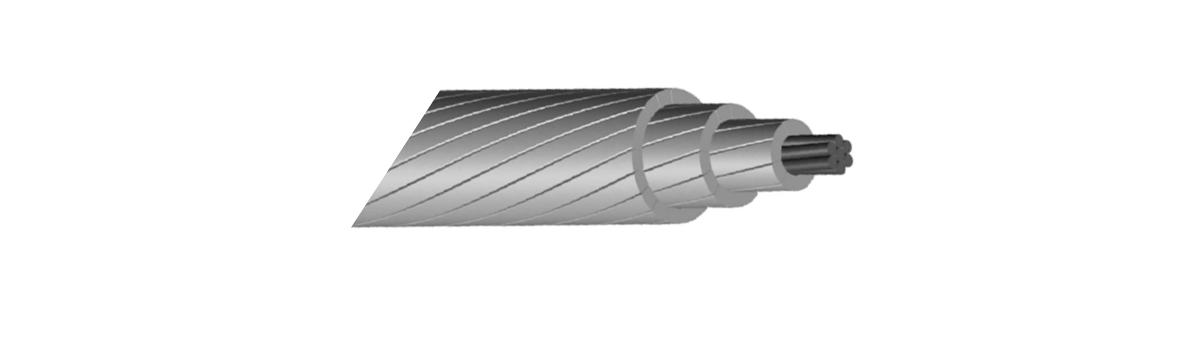

High Temperature Thermal Resistant Alloy Conductor : These are high ampacity conductors with inner core composed of Galvanized steel or Aluminum clad Steel & outer layer composed of high Strength – thermal resistant aluminium alloy with round or trapezoidal shaped.
Aluminium-Zirconium wires (Type-AT2), concentrically stranded over a steel core.
| HIGHSTRENGTH-THERMAL RESISTANT1 | ||||||||||||||||||
| No.of Wires | Wire diameter | KTAL | Steel | Total | Complet e Conducto |
KTAL | Steel | Total | Regular Strength | HS | EHS | UHS | Resistan ce@ 20℃ |
|||||
| KTAL | Steel | KTAL | Steel | @85℃ | @150℃ | |||||||||||||
| (m㎡) | (No.) | (No.) | (mm) | (mm) | (m㎡) | (m㎡) | (m㎡) | (mm) | (Kg/Km) | (Kg/Km) | (Kg/Km) | (KN) | (KN) | (KN) | (KN) | (Ω/Km) | (Ampere) | (Ampere) |
| 58 | 6 | 1 | 3.5 | 3.5 | 57.73 | 9.62 | 67.35 | 10.5 | 158.42 | 74.84 | 233.26 | 25.84 | 27.19 | 28.15 | 28.49 | 0.5512 | 190 | 316 |
| 80 | 6 | 1 | 4.2 | 4.2 | 83.13 | 13.85 | 96.98 | 12.6 | 228.12 | 107.75 | 335.87 | 34.91 | 37.26 | 38.79 | 39.2 | 0.3828 | 238 | 399 |
| 80 | 15 | 4 | 2.6 | 2.6 | 79.64 | 21.24 | 100.88 | 13 | 219.14 | 168.22 | 387.36 | 46.94 | 49.7 | 51.93 | 52.67 | 0.4007 | 234 | 394 |
| 95 | 6 | 1 | 4.5 | 4.5 | 95.43 | 15.9 | 111.33 | 13.5 | 261.87 | 123.7 | 385.57 | 40.07 | 42.78 | 44.53 | 45 | 0.3335 | 258 | 436 |
| 100 | 15 | 4 | 2.9 | 2.9 | 99.08 | 26.42 | 125.5 | 14.5 | 272.63 | 209.25 | 481.88 | 58.09 | 61.53 | 64.3 | 65.23 | 0.3221 | 267 | 453 |
| 120 | 15 | 4 | 3.2 | 3.2 | 120.64 | 32.17 | 152.81 | 16 | 331.96 | 254.79 | 586.75 | 68.97 | 73.47 | 76.69 | 77.81 | 0.2645 | 301 | 514 |
| 120 | 30 | 7 | 2.3 | 2.3 | 124.64 | 29.08 | 153.72 | 16.1 | 343.77 | 227.22 | 570.99 | 67.26 | 71.04 | 74.09 | 75.11 | 0.2566 | 327 | 559 |
| 160 | 30 | 7 | 2.6 | 2.6 | 159.28 | 37.17 | 196.45 | 18.2 | 439.32 | 290.43 | 729.75 | 87.08 | 91.91 | 95.81 | 97.11 | 0.2008 | 380 | 655 |
| 200 | 30 | 7 | 2.9 | 2.9 | 198.16 | 46.24 | 244.4 | 20.3 | 546.55 | 361.29 | 907.84 | 107.74 | 113.75 | 118.6 | 120.22 | 0.1614 | 433 | 753 |
| 240 | 30 | 7 | 3.2 | 3.2 | 241.27 | 56.3 | 297.57 | 22.4 | 665.46 | 439.9 | 1105.36 | 127.96 | 135.84 | 141.47 | 143.44 | 0.1326 | 488 | 855 |
| 330 | 26 | 7 | 4 | 3.1 | 326.73 | 52.83 | 379.56 | 25.3 | 902.23 | 412.78 | 1315.01 | 143.27 | 150.67 | 155.95 | 157.8 | 0.098 | 581 | 1029 |
| 410 | 26 | 7 | 4.5 | 3.5 | 413.51 | 67.35 | 480.86 | 28.5 | 1141.86 | 526.24 | 1668.1 | 176.55 | 185.98 | 192.72 | 195.08 | 0.0774 | 669 | 1199 |
| 480 | 45 | 7 | 3.7 | 2.47 | 483.85 | 33.54 | 517.39 | 29.61 | 1337.01 | 262.06 | 1599.07 | 162.93 | 167.29 | 170.81 | 171.98 | 0.0662 | 718 | 1292 |
| 520 | 54 | 7 | 3.5 | 3.5 | 519.54 | 67.35 | 586.89 | 31.5 | 1437.04 | 526.24 | 1963.28 | 208.72 | 218.15 | 224.89 | 227.24 | 0.0617 | 753 | 1363 |
| 560 | 54 | 19 | 3.63 | 2.18 | 558.85 | 70.92 | 629.77 | 32.68 | 1545.77 | 556.01 | 2101.78 | 227.59 | 237.52 | 244.61 | 246.74 | 0.0574 | 786 | 1428 |
| 610 | 54 | 7 | 3.8 | 3.8 | 612.42 | 79.39 | 691.81 | 34.2 | 1693.94 | 620.31 | 2314.25 | 240.48 | 253.98 | 262.71 | 265.09 | 0.0524 | 829 | 1513 |
| 630 | 54 | 19 | 3.85 | 2.31 | 628.65 | 79.63 | 708.28 | 34.65 | 1738.83 | 624.29 | 2363.12 | 251.55 | 261.9 | 270.26 | 273.05 | 0.051 | 842 | 1540 |
| 680 | 45 | 7 | 4.4 | 2.9 | 684.24 | 46.24 | 730.48 | 35.1 | 1890.74 | 361.29 | 2252.03 | 213.14 | 219.15 | 224.01 | 225.63 | 0.0468 | 879 | 1610 |
| 680 | 54 | 7 | 4 | 4 | 678.59 | 87.96 | 766.55 | 36 | 1876.97 | 687.27 | 2564.24 | 264.42 | 279.37 | 289.05 | 291.69 | 0.0473 | 880 | 1616 |
| 710 | 54 | 19 | 4.09 | 2.45 | 709.47 | 89.57 | 799.04 | 36.79 | 1962.38 | 702.22 | 2664.6 | 274.28 | 285.92 | 295.33 | 298.46 | 0.0452 | 904 | 1663 |
| 800 | 54 | 19 | 4.34 | 2.61 | 798.85 | 101.65 | 900.5 | 39.09 | 2209.6 | 796.93 | 3006.53 | 309.85 | 323.07 | 333.74 | 337.3 | 0.0402 | 968 | 1793 |
| 810 | 45 | 7 | 4.8 | 3.2 | 814.3 | 56.3 | 870.6 | 38.4 | 2250.14 | 439.9 | 2690.04 | 244.89 | 252.77 | 258.4 | 260.37 | 0.0394 | 972 | 1798 |
| 1120 | 72 | 19 | 4.45 | 1.78 | 1119.81 | 47.28 | 1167.09 | 44.5 | 3097.07 | 370.67 | 3467.74 | 313.89 | 320.51 | 325.24 | 326.66 | 0.0286 | 1172 | 2214 |
| 1160 | 84 | 7 | 4.2 | 4.2 | 1163.77 | 96.98 | 1260.75 | 46.2 | 3221.17 | 757.75 | 3978.92 | 375.31 | 391.8 | 402.47 | 405.38 | 0.0276 | 1203 | 2283 |
| 1250 | 84 | 19 | 4.35 | 2.61 | 1248.39 | 101.65 | 1350.04 | 47.85 | 3455.38 | 796.93 | 4252.31 | 411 | 424.21 | 434.89 | 438.45 | 0.0257 | 1251 | 2385 |
| 1520 | 84 | 7 | 4.8 | 4.8 | 1520 | 126.67 | 1646.7 | 52.8 | 4207.25 | 989.73 | 5196.98 | 475.01 | 487.68 | 510.48 | 514.28 | 0.0211 | 1387 | 2687 |
| HIGHSTRENGTH-THERMAL RESISTANT2 | ||||||||||||||||
| Conductor Size | Stranding | Cross-Sectional Area | Diameter of Complete Conductor |
Weight | Rated Strength | DC Resistanc e@20℃ |
Current Capacity | |||||||||
| No.of Wires | Wire diameter | KTAL | Steel | Total | KTAL | Steel | Total | High Strength |
Extra High Strength | |||||||
| KTAL | Steel | KTAL | Steel | @85℃ | @150℃ | |||||||||||
| (m㎡) | (No.) | (No.) | (mm) | (mm) | (m㎡) | (m㎡) | (m㎡) | (mm) | (Kg/Km) | (Kg/Km) | (Kg/Km) | (KN) | (KN) | (Ω/Km) | (Ampere) | (Ampere) |
| 58 | 6 | 1 | 3.5 | 3.5 | 57.73 | 9.62 | 67.35 | 10.5 | 158.42 | 63.39 | 221.81 | 24.88 | 26.71 | 0.538 | 192.57 | 320.32 |
| 80 | 6 | 1 | 4.2 | 4.2 | 83.13 | 13.85 | 96.98 | 12.6 | 228.12 | 91.27 | 319.39 | 33.53 | 36.71 | 0.3737 | 240.4 | 404.22 |
| 80 | 15 | 4 | 2.6 | 2.6 | 79.64 | 21.24 | 100.88 | 13 | 219.14 | 142.49 | 361.63 | 45.24 | 48.64 | 0.3647 | 245.01 | 412.77 |
| 95 | 6 | 1 | 4.5 | 4.5 | 95.43 | 15.9 | 111.33 | 13.5 | 261.87 | 104.78 | 366.65 | 37.85 | 42.14 | 0.3255 | 261.45 | 441.51 |
| 100 | 15 | 4 | 2.9 | 2.9 | 99.08 | 26.42 | 125.5 | 14.5 | 272.63 | 177.24 | 449.87 | 55.98 | 60.21 | 0.2932 | 279.75 | 474.62 |
| 120 | 15 | 4 | 3.2 | 3.2 | 120.64 | 32.17 | 152.81 | 16 | 331.96 | 215.82 | 547.78 | 67.68 | 71.86 | 0.2408 | 315.24 | 538.43 |
| 120 | 30 | 7 | 2.3 | 2.3 | 124.64 | 29.08 | 153.72 | 16.1 | 343.77 | 192.47 | 536.24 | 64.93 | 69.58 | 0.2363 | 341.17 | 582.97 |
| 160 | 30 | 7 | 2.6 | 2.6 | 159.28 | 37.17 | 196.45 | 18.2 | 439.32 | 246.01 | 685.33 | 84.1 | 90.05 | 0.1849 | 395.76 | 682.28 |
| 200 | 30 | 7 | 2.9 | 2.9 | 198.16 | 46.24 | 244.4 | 20.3 | 546.55 | 306.03 | 852.58 | 104.03 | 111.43 | 0.1486 | 451.57 | 785.07 |
| 240 | 30 | 7 | 3.2 | 3.2 | 241.27 | 56.3 | 297.57 | 22.4 | 665.46 | 372.61 | 1038.07 | 125.71 | 133.02 | 0.122 | 508.49 | 891.13 |
| 330 | 26 | 7 | 4 | 3.1 | 326.73 | 52.83 | 379.56 | 25.3 | 902.23 | 349.64 | 1251.87 | 141.16 | 148.02 | 0.0925 | 598.14 | 1059.45 |
| 410 | 26 | 7 | 4.5 | 3.5 | 413.51 | 67.35 | 480.86 | 28.5 | 1141.86 | 445.75 | 1587.61 | 169.82 | 182.61 | 0.073 | 688.93 | 1233.87 |
| 480 | 45 | 7 | 3.7 | 2.47 | 483.85 | 33.54 | 517.39 | 29.61 | 1337.01 | 221.98 | 1558.99 | 156.85 | 162.22 | 0.0646 | 726.87 | 1307.22 |
| 520 | 54 | 7 | 3.5 | 3.5 | 519.54 | 67.35 | 586.89 | 31.5 | 1437.04 | 445.75 | 1882.79 | 201.98 | 214.78 | 0.0589 | 770.64 | 1394.24 |
| 560 | 54 | 19 | 3.63 | 2.18 | 558.85 | 70.92 | 629.77 | 32.68 | 1545.77 | 470.96 | 2016.73 | 219.79 | 233.26 | 0.0548 | 804.18 | 1460.53 |
| 610 | 54 | 7 | 3.8 | 3.8 | 612.42 | 79.39 | 691.81 | 34.2 | 1693.94 | 525.43 | 2219.37 | 234.92 | 250.8 | 0.05 | 848.5 | 1548.62 |
| 630 | 54 | 19 | 3.85 | 2.31 | 628.65 | 79.63 | 708.28 | 34.65 | 1738.83 | 528.8 | 2267.63 | 245.17 | 257.91 | 0.0487 | 861.64 | 1574.88 |
| 680 | 45 | 7 | 4.4 | 2.9 | 684.24 | 46.24 | 730.48 | 35.1 | 1890.74 | 306.03 | 2196.77 | 209.44 | 216.84 | 0.0457 | 889.44 | 1629.05 |
| 680 | 54 | 7 | 4 | 4 | 678.59 | 87.96 | 766.55 | 36 | 1876.97 | 582.15 | 2459.12 | 258.26 | 275.85 | 0.0451 | 901.03 | 1653.98 |
| 710 | 54 | 19 | 4.09 | 2.45 | 709.47 | 89.57 | 799.04 | 36.79 | 1962.38 | 594.81 | 2557.19 | 267.12 | 281.45 | 0.0432 | 923.84 | 1700.1 |
| 800 | 54 | 19 | 4.34 | 2.61 | 798.85 | 101.65 | 900.5 | 39.09 | 2209.6 | 675.03 | 2884.63 | 301.72 | 317.98 | 0.0384 | 989.12 | 1833.39 |
| 810 | 45 | 7 | 4.8 | 3.2 | 814.3 | 56.3 | 870.6 | 38.4 | 2250.14 | 372.61 | 2622.75 | 242.63 | 249.95 | 0.0384 | 983.55 | 1820.68 |
| 1120 | 72 | 19 | 4.45 | 1.78 | 1119.81 | 47.28 | 1167.09 | 44.5 | 3097.07 | 313.97 | 3411.04 | 308.7 | 317.68 | 0.0282 | 1179.57 | 2228.93 |
| 1160 | 84 | 7 | 4.2 | 4.2 | 1163.77 | 96.98 | 1260.75 | 46.2 | 3221.17 | 641.85 | 3863.02 | 365.62 | 387.92 | 0.0268 | 1219.59 | 2314.31 |
| 1250 | 84 | 19 | 4.35 | 2.61 | 1248.39 | 101.65 | 1350.04 | 47.85 | 3455.38 | 675.03 | 4130.41 | 402.86 | 419.13 | 0.025 | 1266.16 | 2415.49 |
| 1520 | 84 | 7 | 4.8 | 4.8 | 1520.03 | 126.67 | 1646.7 | 52.8 | 4207.25 | 838.34 | 5045.59 | 453.47 | 491.48 | 0.0205 | 1403.81 | 2722.06 |
