Cables mensajeros, cables aéreos de tierra o estáticos para líneas de distribución y transmisión, líneas de comunicación y señal, torres de antenas, mástiles, chimeneas y otras estructuras.
ASTM A-475,IEC 61089,BS 183
Debido a su alta resistencia y durabilidad, juega un papel importante en muchos campos industriales.

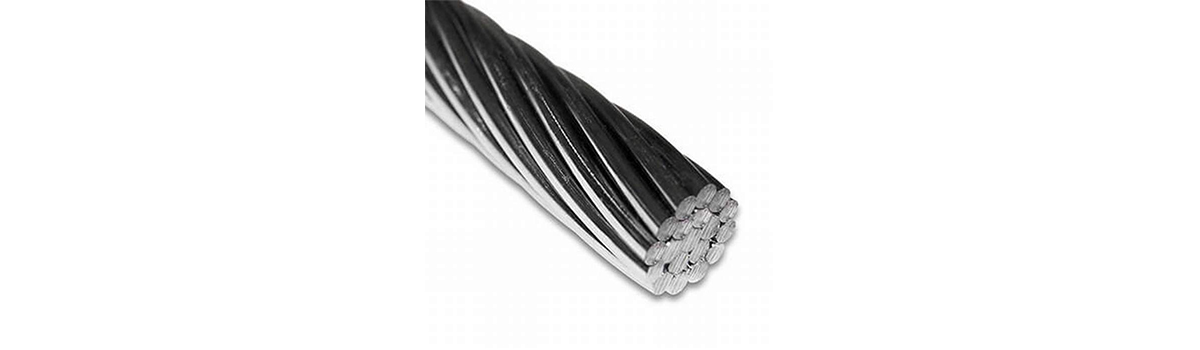

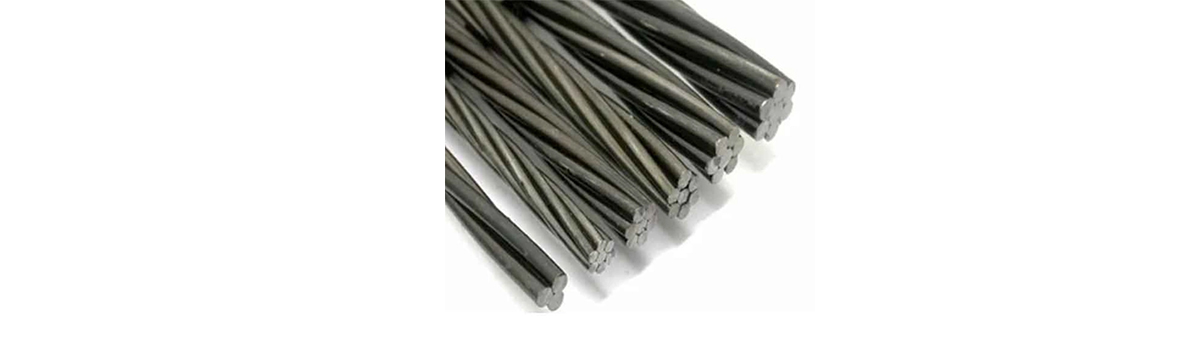

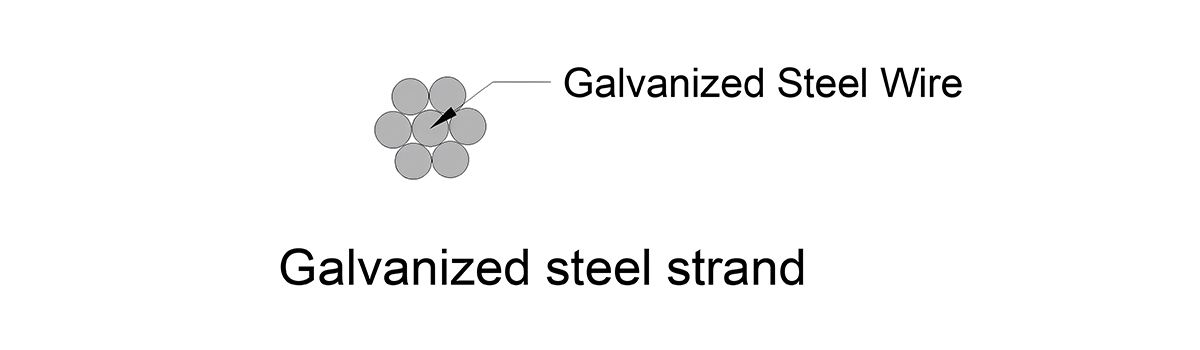

3 4 5 7 19 alambres de acero galvanizado trenzados entre sí
GSW Wire ASTM A 475 | |||||||||
Diámetro nominal de la hebra |
Número de cables en la hebra | Diámetro nominal del alambre revestido en la hebra |
Peso aproximado de la hebra | Resistencia mínima a la rotura del cordón | |||||
Utilidades Grado |
Grado común | Siemens-Martin Grado |
Grado de alta resistencia | Grado de resistencia extraalta | |||||
In | mm | mm | kg/km | KN | kN | kN | KN | kN | |
1/8 | 3.18 | 7 | 1.04 | 48 | - | 2.402 | 4.048 | 5.916 | 8.14 |
5/32 | 3.97 | 7 | 1.32 | 76 | - | 3.87 | 6.539 | 9.519 | 13.078 |
3/16 | 4.76 | 7 | 1.57 | 109 | - | 5.115 | 8.452 | 12.677 | 17.748 |
3/16 | 4.76 | 7 | 1.65 | 119 | 10.676 | - | - | - | |
7/32 | 5.56 | 3 | 2.64 | 131 | - | 6.228 | 10.409 | 15.569 | 21.796 |
7/32 | 5.56 | 7 | 1.83 | 146 | - | 6.85 | 11.387 | 17.126 | 24.02 |
1/4 | 6.35 | 3 | 3.05 | 174 | 14.012 | 8.274 | 13.523 | 21.04 | 29.981 |
1/4 | 6.35 | 3 | 3.05 | 174 | 20.017 | - | - | - | - |
1/4 | 6.35 | 7 | 2.03 | 180 | - | 8.452 | 14.012 | 21.129 | 29.581 |
9/32 | 7.14 | 3 | 3.3 | 204 | - | 9.252 | 15.035 | 23.398 | 33.362 |
9/32 | 7.14 | 7 | 2.36 | 244 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 |
5/16 | 7.94 | 3 | 3.68 | 255 | 28.913 | 11.076 | 18.193 | 28.246 | 40.479 |
5/16 | 7.94 | 7 | 2.64 | 305 | - | 14.234 | 23.798 | 35.586 | 49.82 |
5/16 | 7.94 | 7 | 2.77 | 335 | 26.689 | - | - | - | - |
3/8 | 9.52 | 3 | 4.19 | 328 | 37.81 | 14.813 | 24.732 | 37.187 | 52.489 |
3/8 | 9.52 | 7 | 3.05 | 407 | 51.155 | 18.905 | 30.915 | 48.04 | 68.503 |
7/16 | 11.11 | 7 | 3.68 | 595 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 |
1/2 | 12.7 | 7 | 4.19 | 770 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 |
1/2 | 12.7 | 19 | 2.54 | 751 | - | 33.895 | 56.492 | 84.961 | 118.768 |
9/16 | 14.29 | 7 | 4.78 | 1000 | - | 42.703 | 69.837 | 108.981 | 155.688 |
9/16 | 14.29 | 19 | 2.87 | 949 | - | 42.881 | 71.616 | 107.202 | 149.905 |
5/8 | 15.88 | 7 | 5.26 | 1211 | - | 51.599 | 84.961 | 131.667 | 188.605 |
5/8 | 15.88 | 19 | 3.18 | 1186 | - | 48.93 | 80.513 | 124.995 | 178.819 |
3/4 | 19.05 | 19 | 3.81 | 1721 | - | 71.172 | 116.543 | 181.487 | 259.331 |
7/8 | 22.22 | 19 | 4.5 | 2356 | - | 97.416 | 159.691 | 248.211 | 354.523 |
1/1 | 25.4 | 19 | 5.08 | 3089 | - | 127.664 | 209.066 | 325.61 | 464.839 |
1/1 | 25.4 | 37 | 3.63 | 3065 | - | 125.885 | 205.508 | 319.827 | 456.832 |
1/1 | 28.58 | 37 | 4.09 | 4010 | 160.136 | 262 | 407.457 | 581.827 | |
1/1 | 31.75 | 37 | 4.55 | 4840 | 198.391 | 324.72 | 505.318 | 721.502 |
GSW Wire BS 183 | |||||||||||
Área seccional | Varamiento | Diámetro del CABLE DE TIERRA |
Peso | Resistencia nominal | |||||||
Número de cables |
Diámetro de cada cable |
Grade 350 |
Grade 480 |
Grade 700 |
Grade 850 |
Grade 1000 |
Grade 1150 |
Grade 1300 |
|||
mm² | No. | mm | mm | Kg/km | KN | KN | KN | KN | KN | KN | KN |
7.63 | 3 | 1.8 | 3.9 | 60 | 2.65 | 3.66 | - | - | - | - | - |
16.55 | 3 | 2.65 | 5.7 | 130 | 5.8 | 7.95 | - | - | - | - | - |
24.89 | 3 | 3.25 | 7 | 195 | 8.7 | 11.95 | - | - | - | - | 一 |
37.7 | 3 | 4 | 8.6 | 295 | 13.2 | 18.1 | - | - | - | - | - |
10.18 | 4 | 1.8 | 4.4 | 80 | 3.55 | 4.9 | - | - | - | - | - |
22.06 | 4 | 2.65 | 6.4 | 172 | 7.7 | 10.6 | - | - | |||
33.18 | 4 | 3.25 | 7.9 | 260 | 11.6 | 15.9 | - | - | - | - | - |
50.27 | 4 | 4 | 9.7 | 390 | 17.6 | 24.1 | 35.2 | - | - | - | - |
8.84 | 5 | 1.5 | 4.1 | 69 | 3.1 | 4.24 | 6.18 | - | |||
12.72 | 5 | 1.8 | 4.9 | 95 | 4.45 | 6.1 | 8.9 | - | - | - | - |
27.58 | 5 | 2.65 | 7.2 | 220 | 9.65 | 13.25 | 19.3 | - | - | ||
41.48 | 5 | 3.25 | 8.8 | 320 | 14.5 | 19.9 | 29 | - | - | - | - |
62.83 | 5 | 4 | 10.8 | 490 | 22 | 30.15 | 43.95 | - | - | ||
1.72 | 7 | 0.56 | 1.7 | 14 | 0.6 | 0.83 | 1.2 | 1.7 | 1.98 | 2.24 | |
2.77 | 7 | 0.71 | 2.1 | 28 | 0.97 | 1.33 | 1.94 | - | 2.75 | 3.19 | 3.6 |
3.97 | 7 | 0.85 | 2.6 | 31 | 1.39 | 1.9 | 2.8 | 3.95 | 4.57 | 5.15 | |
4.45 | 7 | 0.9 | 2.7 | 35 | 1.55 | 2.14 | 3.1 | - | 4.45 | 5.12 | 5.8 |
5.5 | 7 | 1 | 3 | 43 | 1.92 | 2.64 | 3.85 | - | 5.5 | 6.32 | 7.15 |
8.59 | 7 | 1.25 | 3.8 | 67 | 3.01 | 4.1 | 6 | - | 8.55 | 9.88 | 11.15 |
10.78 | 7 | 1.4 | 4.2 | 84 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14 |
11.24 | 7 | 1.43 | 4.3 | 86 | 3.85 | 5.28 | 7.7 | 9.35 | 11 | 12.65 | 14.3 |
14.07 | 7 | 1.6 | 4.8 | 110 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 |
17.81 | 7 | 1.8 | 5.4 | 140 | 6.23 | 8.55 | 12.45 | - | 17.8 | 20.5 | 23.2 |
21.99 | 7 | 2 | 6 | 170 | 7.7 | 10.55 | 15.4 | - | 22 | 25.3 | 38.6 |
30.62 | 7 | 2.36 | 7.1 | 240 | 10.7 | 14.7 | 21.4 | - | 30.6 | 35.2 | 39.8 |
38.61 | 7 | 2.65 | 8 | 300 | 13.5 | 18.5 | 27 | - | 38.6 | 44.4 | 50.2 |
49.48 | 7 | 3 | 9 | 392 | 17.3 | 23.75 | 34.65 | - | 49.5 | 56.9 | 64.3 |
54.55 | 7 | 3.15 | 9.5 | 430 | 19.1 | 26.2 | 38.2 | - | 54.55 | 62.75 | 70.9 |
58.07 | 7 | 3.25 | 9.8 | 460 | 20.3 | 27.85 | 40.65 | - | 58.05 | 66.8 | 75.5 |
73.24 | 7 | 3.65 | 11 | 570 | 25.6 | 35.15 | 51.25 | - | 73.25 | 84.2 | 95.2 |
87.96 | 7 | 4 | 12 | 690 | 30.9 | 42.2 | 61.6 | - | 88 | 101 | 114 |
99.3 | 7 | 4.25 | 12.8 | 780 | 34.75 | 47.65 | 69.5 | - | 99.3 | 114 | 129 |
124.04 | 7 | 4.75 | 14 | 970 | 43.4 | 59.45 | 86.8 | - | 124 | 142.7 | 161.3 |
14.92 | 19 | 1 | 5 | 120 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.4 |
23.32 | 19 | 1.25 | 6.3 | 180 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 |
29.25 | 19 | 1.4 | 7 | 230 | 10.24 | 14.04 | 14.04 | - | 29.25 | 33.64 | 38.02 |
38.2 | 19 | 1.6 | 8 | 300 | 13.37 | 18.34 | 26.75 | - | 38.2 | 43.93 | 49.66 |
59.69 | 19 | 2 | 10 | 470 | 20.9 | 28.65 | 41.78 | 50.7 | 59.69 | 68.64 | 77.6 |
93.27 | 19 | 2.5 | 12.5 | 730 | 32.65 | 44.8 | 65.29 | 79.3 | 93.27 | 107.3 | 121.3 |
134.3 | 19 | 3 | 15 | 1050 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 |
188.06 | 19 | 3.55 | 17.8 | 1470 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 |
238.76 | 19 | 4 | 20 | 1870 | 83.55 | 114.6 | 167.1 | 203 | 238.7 | 274.6 | 310.4 |
336.69 | 19 | 4.75 | 23.8 | 2630 | 117.85 | 161.6 | 235.7 | 286 | 336.7 | 387.2 | 437.7 |
GSW Wire AS 1222.1 | ||||||
Diámetro del alambre y del pie | Diámetro total aprox. |
Área de sección transversal |
Masa aproximada por km |
Carga de rotura calculada (CBL) |
Área equivalente de aluminio |
Resistencia típica de corriente continua por km a 20℃ |
mm | mm | m㎡ | kg | KN | m㎡ | Ω |
3/2.00 | 4.31 | 9.426 | 74 | 11.7 | 1.4 | 20 |
3/2.75 | 5.93 | 17.82 | 140 | 22.2 | 2.6 | 11 |
7/2.00 | 6 | 21.99 | 173 | 26 | 3.2 | 8.7 |
7/2.75 | 8.25 | 41.58 | 328 | 49 | 6.1 | 4.6 |
7/3.25 | 9.75 | 58.07 | 458 | 68.7 | 8.6 | 3.3 |
7/3.75 | 11.3 | 77.28 | 609 | 91.3 | 11 | 2.5 |
19/2.00 | 10 | 59.7 | 473 | 70.5 | 8.8 | 3.2 |
19/2.75 | 13.8 | 112.9 | 894 | 133 | 17 | 1.7 |
19/3.25 | 16.3 | 157.6 | 1250 | 186 | 23 | 1.2 |
GSW Wire DIN 48201 | |||||||||
Área nominal |
Área seccional |
Varamiento | Diámetro de CABLE DE TIERRA |
Peso | Resistencia nominal | ||||
Número de cables | Diámetro de alambre individual |
STI | ST II | ST III | ST IV | ||||
m㎡ | m㎡ | No. | mm | mm | Kg/km | KN | KN | KN | KN |
25 | 24.25 | 7 | 2.1 | 6.3 | 192 | 8.98 | 15.9 | 30.18 | 36.17 |
35 | 34.36 | 7 | 2.5 | 7.5 | 272 | 12.73 | 22.52 | 42.76 | 51.25 |
50 | 49.48 | 7 | 3 | 9 | 391 | 18.33 | 32.43 | 61.58 | 73.8 |
50 | 48.35 | 19 | 1.8 | 9 | 384 | 17.91 | 31.69 | 60.17 | 72.11 |
70 | 65.81 | 19 | 2.1 | 10.5 | 522 | 24.38 | 43.14 | 81.9 | 98.16 |
95 | 93.27 | 19 | 2.5 | 12.5 | 741 | 34.56 | 61.14 | 116.07 | 139.11 |
120 | 116.99 | 19 | 2.8 | 14 | 929 | 43.34 | 76.69 | 145.59 | 174.49 |
GSW Wire GOST 3063 | ||||||||||
Área funcional | Cable central de trenzado en el interior de Laver | Diámetro del CABLE DE TIERRA | Peso | Resistencia nominal | ||||||
1370 | 1570 | 1670 | 1770KN | 1880KN | 1960KN | |||||
m㎡ | 1 wire | 18 wire | mm | Kg/km | KN | KN | KN | |||
29.48 | 1.5 | 1.4 | 7.1 | 253 | 36.35 | 41.55 | 44.1 | 45.85 | 48 | 50.560. |
33.82 | 1.6 | 1.5 | 7.6 | 290.5 | 41.65 | 47.65 | 50.55 | 52.75 | 55.05 | |
38.46 | 1.7 | 1.6 | 8.1 | 330 | 44.4 | 54.2 | 57.6 | 59.95 | 62.6 | 65.974. |
43.4 | 1.8 | 1.7 | 8.6 | 372.5 | 53.55 | 61.2 | 65 | 67.7 | 70.65 | |
48.64 | 19 | 1.8 | 9.1 | 417.5 | 59.95 | 68.6 | 72.85 | 75.9 | 79.2 | 83.3 |
60.35 | .2.2 | 2 | 10 | 519 | 74.45 | 85.1 | 94.1 | 93.5 | 98 | 102 |
72.95 | 2.4 | 2.2 | 11 | 627.4 | 89.95 | 102 | 109 | 112.5 | 118.5 | 123.5 |
86.74 | 2.6 | 2.4 | 12 | 746 | 106 | 122 | 129 | 134 | 140.5 | 147 |
101.72 | 2.8 | 2.6 | 13 | 873 | 124.5 | 143 | 151.5 | 158 | 165 | 173.5 |
117.9 | 3 | 2.8 | 14 | 1050 | 145.5 | 166 | 176 | 183.5 | 190 | 200 |
135.28 | 3.2 | 3 | 15 | 1160 | 166.5 | 190 | 202 | 210.5 | 220 | 231.5 |
153.84 | 3.4 | 3.2 | 16 | 1320 | 189.5 | 216.5 | 226 | 236.5 | - |
The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
