Service Entrance Cable, Type SE, Style SER and SE Stype U. Service Entrance Cable, 600 Volt.Individual Conductors Rated XHHW-2 or THHN/THWN. Jacket and individual Conductors Sunlight Resistant.
Shuobang Type SE, service entrance cable is primarily used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard; however, the cable may be used in all applications where Type SE cable is permitted. SER may be used in wet or dry locations at temperatures not to exceed 90℃. Voltage rating is 600 volts.

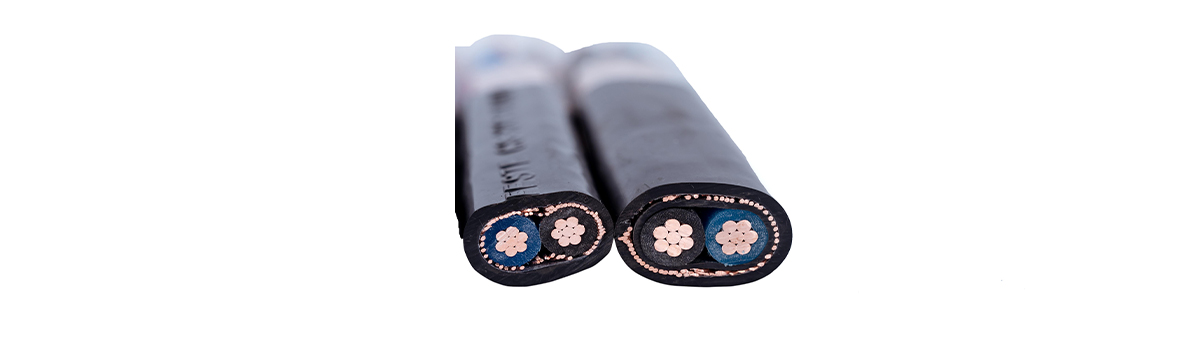

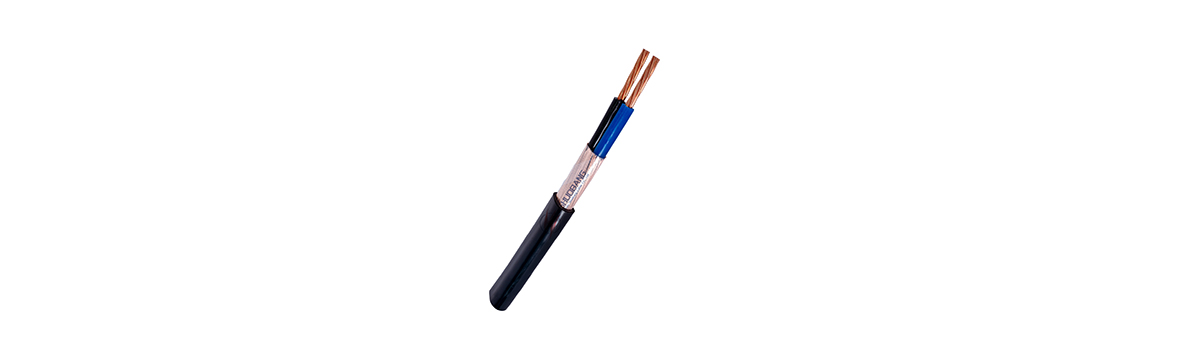

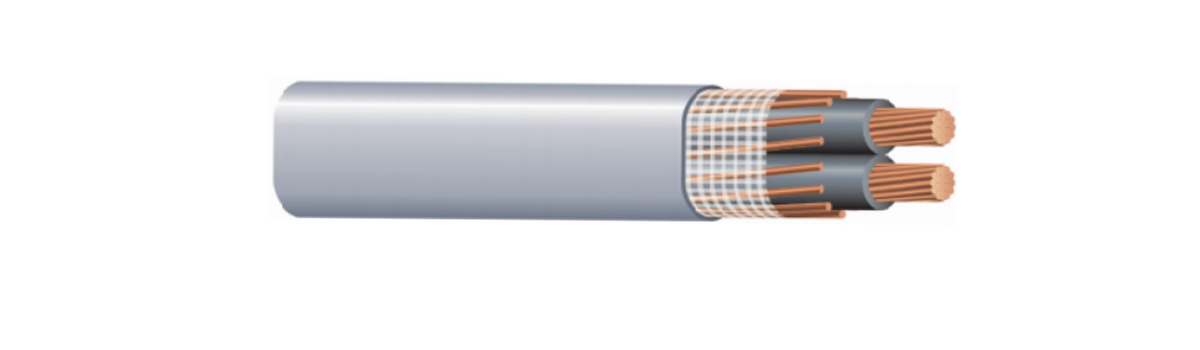

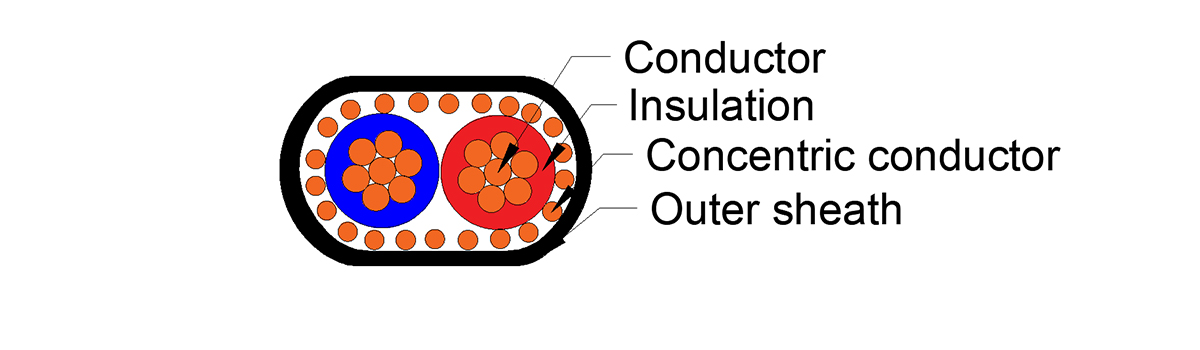

Shuobang Type SE cable is constructed with sunlight resistant Type XHHW-2 conductors or Type THHN/THWN conductors. Copper conductors are annealed (soft) copper. Cable assembly plus reinforcement tape are jacketed with sunlight resistant gray polyvinyl chloride (PVC). Available as 1 conductor with a concentric ground, 2 conductor with a round or concentric ground, or 3conductor with a bare ground. SE cable is jacketed with gray sunlight resistant polyvinyl chloride (PVC).
Excellent conductivity: Copper has better conductivity than aluminum, so concentric copper cables can provide peripheral resistance and higher current carrying capacity under the same specifications.
High tensile strength: The concentric structure enhances the tensile strength of the cable, which is suitable for long-distance and high-load applications.
Strong heat resistance: Copper has good heat resistance and is suitable for high temperature environments.
High stability: The electrical performance of copper cables is stable and reliable in long-term use.
Anti-electromagnetic interference: Copper has good conductivity and can effectively reduce electromagnetic interference.
Concentric copper cables inherit excellent conductivity and stability and are widely evaluated in power transmission and distribution systems. Reasonable selection and application of concentric copper cables can improve the efficiency and safety of power systems
Shuobang Type SE cable complies with: ASTM- All applicable standards UL Standard 44 for XHHW-2 conductors UL Standard 83 for THHN/THWN conductors UL Standard 854 Federal Specification A-A-59544 National Electrical Code,NFPA 70.2011 Edition RoHS/ REACH
SER Two-Conductor Wih Bare Cotentric Ground (Formerly referred to as "Three Conductor") | |||||||||
Conductor | Strandng | Nomnina 0.D.(MIs) |
Allowable Ampacties | Approdimat e Net Weight Per 1000(Lbs) |
Standard Package |
||||
SizeConst, AWG or kcmil | Phase Conductor & Neutral | EquipmentGround Conduclor |
60℃ | 75℃ | 90℃ | Dwelling | |||
8-8-8-8 | 7 | - | 586 | 40 | 50 | 55 | - | 231 | B |
6-6-6 | 7 | - | 669 | 55 | 65 | 75 | - | 338 | B |
4-4-4 | 7 | - | 764 | 70 | 85 | 95 | 100 | 498 | B |
3-3-3 | 7 | - | 829 | 85 | 100 | 110 | 110 | 611 | B |
2-2-2 | 7 | - | 896 | 95 | 115 | 130 | 125 | 752 | B |
1-1-1 | 19 | - | 1021 | 110 | 130 | 150 | 150 | 948 | C |
1/0-1/0-1/0 | 19 | - | 1114 | 125 | 150 | 170 | 175 | 1169 | C |
2/0-2/0-2/0 | 19 | - | 1209 | 145 | 175 | 195 | 200 | 1444 | C |
3/0-3/0-3/0 | 19 | - | 1317 | 165 | 200 | 225 | 225 | 1792 | C |
4/0-4/0-4/0 | 19 | - | 1438 | 195 | 230 | 260 | 250 | 2226 | C |
SER Three Conduclor With Bare Ground (Formerly relerred to as "Four Conductor") | |||||||||
8-8-8-8 | 7 | 7 | 645 | 40 | 50 | 55 | - | 286 | B |
6-6-6-6 | 7 | 7 | 738 | 55 | 65 | 75 | - | 424 | B |
4-4-4-6 | 7 | 7 | 844 | 70 | 85 | 95 | 100 | 585 | B |
3-3-3-5 | 7 | 7 | 910 | 85 | 100 | 110 | 110 | 719 | B |
2-2-2-4 | 7 | 7 | 984 | 95 | 115 | 130 | 125 | 887 | B |
1-1-1-3 | 19 | 19 | 1132 | 110 | 130 | 150 | 150 | 1117 | C |
1/0-1/0-1/0-2 | 19 | 19 | 1235 | 125 | 150 | 170 | 175 | 1382 | C |
2/0-2/0-2/0-1 | 19 | 19 | 1342 | 145 | 175 | 195 | 200 | 1713 | C |
3/0-3/0-3/0-1/0 | 19 | 19 | 1462 | 165 | 175 | 195 | 225 | 2129 | C |
4/0-4/0-4/0-2/0 | 19 | 19 | 1598 | 195 | 230 | 260 | 250 | 2650 | C |
Table values reflect XHHW-2 conductors | Package Codes: A-250' B-500' C- 1,000' D-100' E-150' |
||||||||
Alow able ampacities shown are for general use as specified by the National Electrical Code, 2011 Edition section 310.15 and 240.4(D). | |||||||||
Unless the is marked for use at higher temperatures the conductor ampacities shall be limited to the following per NEC 110.14(C) | |||||||||
60 °C When terminated to equipment for circuits rated 100 amperes orless or marked for 14 - 1 AWG conductors. | |||||||||
75 ° C When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG. | |||||||||
90 °C XHHW wet or Dry locations for ampacity adjustment purposes using NEC section 310.1 5For dwelling ampacity use section 310.15(B)(7) |
SEU Two Conductor With Bare Conentric Ground (Formerly relerred to as "Three Conductor") | |||||||||
Conductor | Strandng | Nomnina 0.D.(MIs) |
Allowable Ampacties | ApprodimateNet Weight Per 1000(Lbs) |
Standard Package |
||||
SizeConst, AWG or kcmil | Phase Conductor & Neutral | EquipmentGround Conduclor |
60℃ | 75℃ | 90℃ | Dwelling | |||
10-10-10 | 1 | 12 | 428x283 | 30 | 30 | 30 | - | 127 | ABC |
8-8-8 | 7 | 8 | 587x380 | 40 | 50 | 60 | - | 211 | ABC |
6-6-6 | 7 | 12 | 659x416 | 55 | 65 | 75 | - | 308 | BCE |
4-4-4 | 7 | 12 | 815x506 | 70 | 85 | 95 | 100 | 471 | BCE |
3-3-3 | 7 | 12 | 883x548 | 85 | 100 | 110 | 110 | 583 | B |
2-2-2 | 7 | 15 | 994x578 | 95 | 115 | 130 | 125 | 718 | BD |
1-1-1 | 19 | 14 | 1093x664 | 110 | 130 | 150 | 150 | 904 | B |
1/0-1/0-1/0 | 19 | 18 | 1179x707 | 125 | 150 | 170 | 175 | 1123 | BC |
2/0-2/0-2/0 | 19 | 18 | 1283x767 | 145 | 175 | 195 | 200 | 1379 | BC |
3/0-3/0-3/0 | 19 | 14 | 1429x862 | 165 | 200 | 225 | 225 | 1712 | BD |
4/0-4/0-4/0 | 19 | 18 | 1541x918 | 195 | 230 | 260 | 250 | 2146 | BC |
SEU Two Conductor With Bare Conentric Ground(Formerly relerred to as "Three Conductor")(Reduced Neutral) | |||||||||
6-6-8 | 7 | 8 | 659x416 | 55 | 65 | 75 | - | 281 | BC |
4-4-6 | 7 | 12 | 790x481 | 70 | 85 | 95 | 100 | 420 | BC |
3-3-5 | 7 | 15 | 843x508 | 85 | 100 | 110 | 110 | 515 | BC |
2-2-4 | 7 | 15 | 929x563 | 95 | 115 | 130 | 125 | 639 | BC |
Table values reflect XHHW-2 conductors | Package Codes: A-250' B-500' C- 1,000' D-100' E-150' |
||||||||
Alow able ampacities shown are for general use as specified by the National Electrical Code, 2011 Edition section 310.15 and 240.4(D). | |||||||||
Unless the is marked for use at higher temperatures the conductor ampacities shall be limited to the following per NEC 110.14(C) | |||||||||
60 °C When terminated to equipment for circuits rated 100 amperes orless or marked for 14 - 1 AWG conductors. | |||||||||
75 ° C When terminated to equipment for circuits rated over 100 amperes or marked for conductors larger than 1 AWG. | |||||||||
90 °C XHHW wet or Dry locations for ampacity adjustment purposes using NEC section 310.1 5For dwelling ampacity use section 310.15(B)(7) |
