Type SE, Style SER and SEU Service Entrance Cable. 600 Volt. Alumaflex" Brand Aluminum Alloy(AA-8176) Conductors. individual Conductors Rated XHHW or THHN/THWN Jacket and inner Conductors are Sunlight Resistant.
Shuobang Type SE, service entrance cable is used to convey power fromthe service drop to the meter base and from the meter base to the distributionpanelboard; however, it may be used in all applications where Type SE cableis permitted.SE may be used in wet or dry above ground locations attemperatures not to exceed 90℃. The voltage rating is 600 volts.

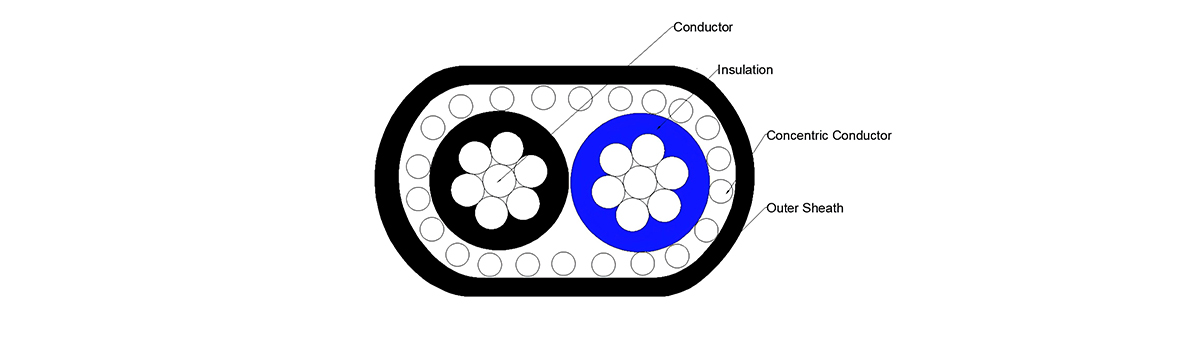

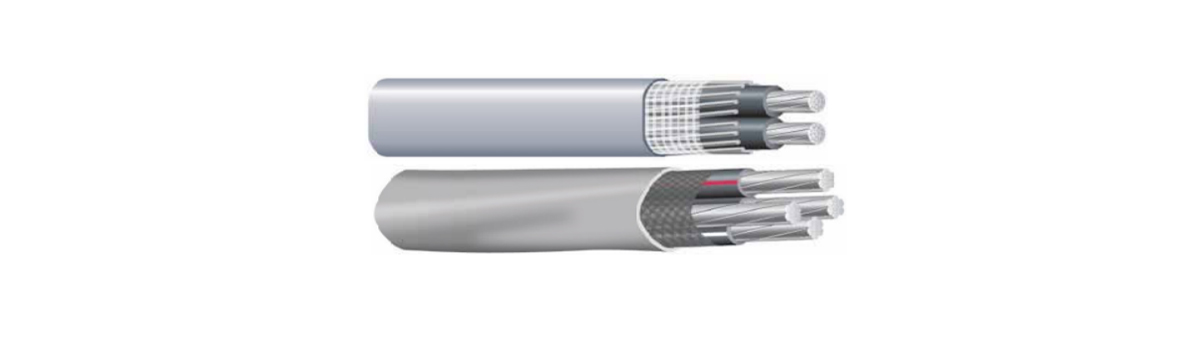

Shuobang Type SE cable is constructed with Alumaflex" AA-8000 series aluminum alloy, compactedstranded conductors. The conductors are covered with a sunlight resistant Type XHHW-2 or TypeTHHN/THWN-2-insulation. A reinforcement tape is wrapped around the conductors for added strengthand conformity. A gray sunlight-resistant polyvinyl chloride (PVC) outer jacket covers the entire assemblyStyle SEU cable has two phase conductors surrounded by a concentric neutral while the SER style hastwo,three or four phase conductors and a bare neutral. Shuobang Type SER Cable's phase conductors are identified by a colored stripe on the insulation.3 conductor-Black and Black with Red Stripe4 conductor- Black, Black with White Stripe and Black with Red Stripe5 conductor - Black, Black with White Stripe, Black with Red Stripe and Black with Blue Stripe
1.Lightweight: Compared with copper cables, aluminum cables are lighter and easier to install and maintain.
2.Low cost: The cost of aluminum is usually lower than that of copper, so concentric aluminum cables are more economical in large projects.
3.Good conductivity: Although aluminum is not as conductive as copper, concentric aluminum cables can still meet most power transmission needs with proper design.
4.High tensile strength: The concentric structure improves the tensile strength of the cable and enhances its mechanical properties.
5.Strong weather resistance: Suitable for various harsh environmental conditions, such as high temperature, humidity and corrosive environments.
Shuobang Type SE cable complies with the following:ASTM-B-800 and B-801 UL Standard 44 for XHHW-2 UL Standard 83 for THHN/THWN-2 FederalSpecification A-A-59544 National Electrical Code, NFPA 70,2011 Edition RoHS
| SEU Aluminum Two Conductor With Bare Conentric Ground (Formerly relerred to as "Three Conductor") | |||||||||
| Conductor | Strandng | Nomnina 0.D.(MIs) |
Allowable Ampacties | Approdimat e Net Weight Per 1000(Lbs) |
Standard Package |
||||
| SizeConst, AWG or kcmil | Phase Conductor & Neutral | EquipmentGround Conduclor |
60℃ | 75℃ | 90℃ | Dwelling | |||
| 6-6-6 | 7 | 8 | 430x687 | 40 | 50 | 60 | - | 145 | B,C,E |
| 4-4-4 | 7 | 12 | 499x800 | 55 | 65 | 75 | - | 198 | B |
| 4-4-6 | 7 | 15 | 474x775 | 55 | 65 | 75 | - | 181 | B |
| 2-2-2 | 7 | 14 | 569x925 | 75 | 90 | 100 | 100 | 283 | B,C,G |
| 2-2-4 | 7 | 18 | 554x910 | 75 | 90 | 100 | 100 | 259 | B,C,G |
| 2/0-2/0-2/0 | 18 | 18 | 736x1221 | 115 | 135 | 150 | 150 | 514 | C |
| 2/0-2/0-1 | 18 | 14 | 720x1205 | 115 | 135 | 150 | 150 | 468 | C |
| 4/0-4/0-4/0 | 18 | 18 | 878x1462 | 150 | 180 | 205 | 205 | 765 | C |
| 4/0-4/0-2/0 | 18 | 18 | 835x1419 | 150 | 180 | 205 | 205 | 691 | C |
| Table values rellect XHHW-2 conduclors, Alowable ampacities shown are for general use as specifed by the Nalional EleclricalCcde.2011 Edilion,Seclion 310.15. | Package Codes: B-1.000' C- 500' E-250' G-200' |
||||||||
| 60℃ - When terminated to equipment for circults ra ted 100 amperes or less or marked for 14 through 1 AWG conductors, SecNEC Anicle 338,10 (B)(4). | |||||||||
| 75℃ - When terminated to equipment for circuls ra ted 100 amperes or marked for conductors larger than 1 AWG conductorsMay not apply, see NEC Aricle 338,10 (B)(4). | |||||||||
| 90℃-Wet or cnylocations, For ampacity de-rating purposes. | |||||||||
| Dwelling - For units, conductors shal be permitled at isled ampacllies as 120/240-vot, 3-wire, singie-phase services and feedersper NEC Article 310,15. | |||||||||
| *For compact-stranded construction,the number of wires, as perm lted by U Standard 854 and ASTM B-801 may be reduced asfollows:19-wire constructions-i8 wires minimum. | |||||||||
