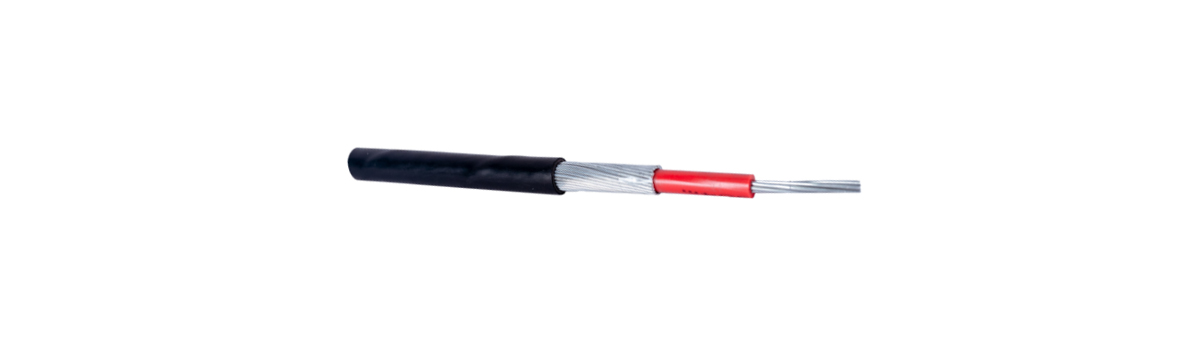

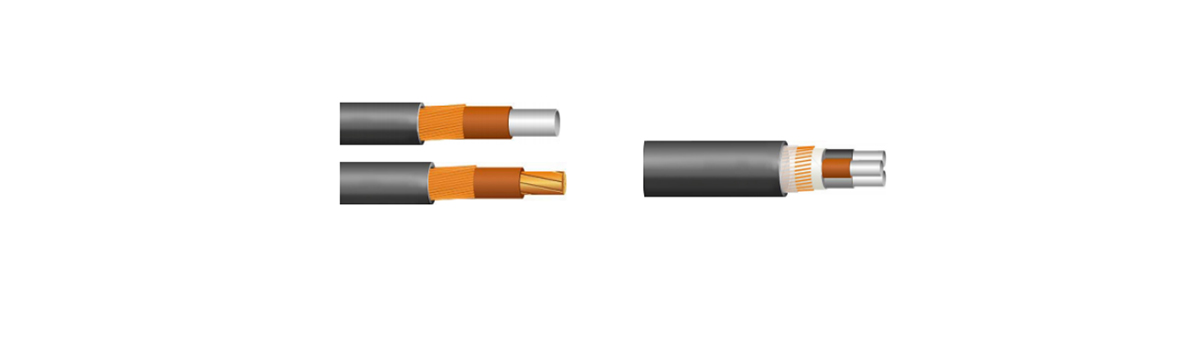

CNE Cable

CNE Cable
CNE Cable
CNE Cable
CNE Cable

Low voltageApplication:

600/1000 V A.C. Service cable Conductor temperature Max.90°C Short circuit temperature Max.250°C Installation temperature Min.-10 ℃

Min. radius of bend

8 x D on 3-core cables, 10x D on single core cables

Max. pullings tension

Directly on conductor max 50 N/mm2of total conductor

Cross section (Cu-cables)

Directly on conductor max 30 N/mm2 of total conductor cross section (AL-cables)

CPR class

Eca

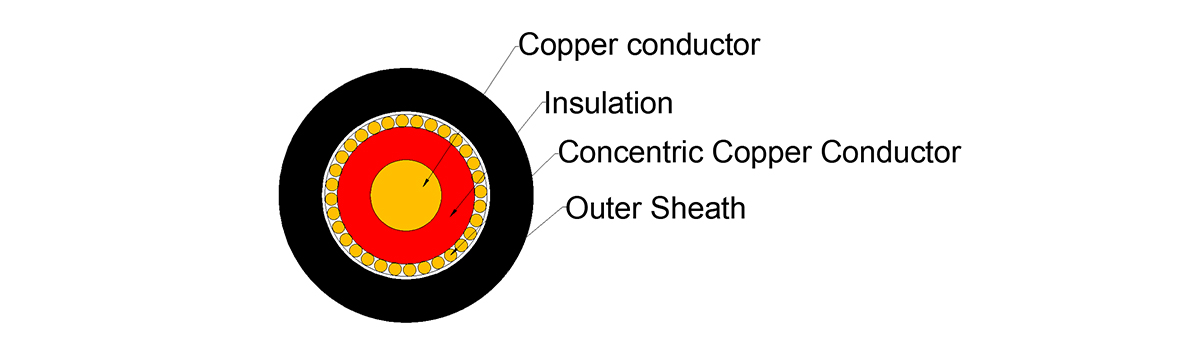

Construction:

Conductor Round stranded copper or solid aluminum conductor

Insulation

XLPE

Colour marking of core

Brown, black and grey

Screen

concentric layer of copper wires

Outer sheath

PVC, black

Technical Standard

BS 7870-3.11:2011

Marking of sheath

ELECTRIC CABLE600/1000V B57870-3.11 SHUOBANG 3x"Dimension" "Year" "Meters"+"Year, month,date

Rated voltage

1000 V between phases

CNE cable
Material deseription Material
of conductor
Number of cores Cross
section
Cable
diameter
Weight Max.conductor resistance Max.resistance concentrie conduetor Drum type Material code
mm2 mm kg/m Ω/km Ω/km
CNE 1x4 Cu Plywood D100 Cu 1 4 10,6 0,133 4,61 4,8 Plywood (0,4 m) 112715002S0100
CNE 1x4 Cu D250 Cu 1 4 12,0 0,133 4,61 4,8 Plastic 0,4 m 112715002D0250
CNE 1x16 CU D100 Cu 1 16 12,0 0,340 1,15 1,2 K6 112715001D0100
CNE 1x16 CU D250 Cu 1 16 12,0 0,340 1,15 1,2 K6 112715001D0250
CNE 1x25 AL C30 AL 1 25 12,0 0,280 1,2 1,3 Coil 110715002C0030
CNE 1x25 AL C60 AL 1 25 12,0 0,280 1,2 1,3 Coil 110715002C0060
CNE 1x25 AL D100 AL 1 25 12,0 0,280 1,2 1,3 Plastic 0,4 m 110715002D0100
CNE 1x25 AL Plywood D100 AL 1 25 12,0 0,280 1,2 1,3 Plywood (0,4 m) 110715002S0100
CNE 1x25 AL D250 AL 1 25 12,0 0,280 1,2 1,3 K6 110715002D0250
CNE 1x25 AL D3000 AL 1 25 12,0 0,280 1,2 1,3 K12 110715002D3000
CNE 3x25 AL D250 AL 3 25 21,3 0,621 1,2 1,3 K9 110715001D0250
CNE 1x35 AL C30 AL 1 35 12,8 0,358 0,868 0,91 Coil 110715003C0030
CNE 1x35 AL C60 AL 1 35 12,8 0,358 0,868 0,91 Coil 110715003C0060
CNE 1x35 AL D100 AL 1 35 12,8 0,358 0,868 0,91 Plastic 0,4 m 110715003D0100
CNE 1x35 AL Plywood D100 AL 1 35 12,8 0,358 0,868 0,91 Plywood (0,4 m) 110715003S0100
CNE 1x35 AL D250 AL 1 35 12,8 0,358 0,868 0,91 K6 110715003D0250
CNE 1x35 AL D3000 AL 1 35 12,8 0,358 0,868 0,91 K12 110715003D3000
CNE 3x35 AL D250 AL 3 35 24,6 0,826 0,868 0,91 K9 110715004D0250
