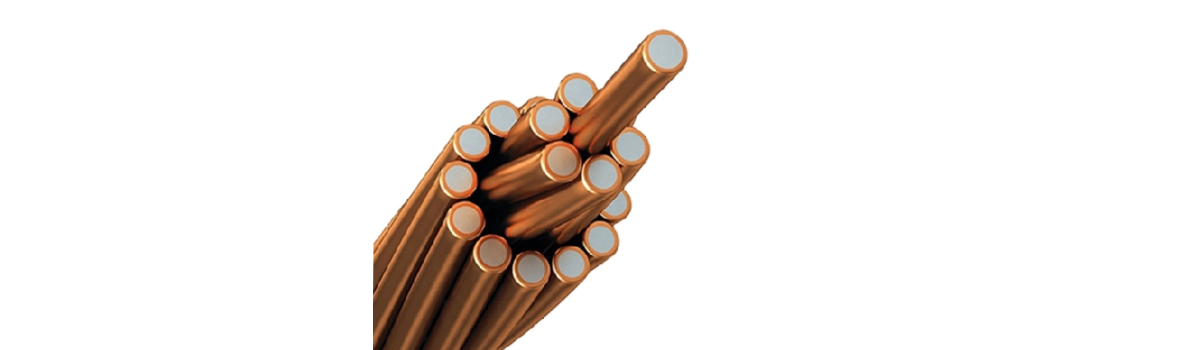

CCS-Copper Clad Steel Strand

CCS-Copper Clad Steel Strand
CCS-Copper Clad Steel Strand

Product Description:

Copper clad steel wire (CCS Wire) combines the high tensile strength of steel as its core and the conductivity properties of copper as its outer layer. The core material is usually low carbon steel and is typically used as either grounding wire or the inner conductor of coaxial cables.

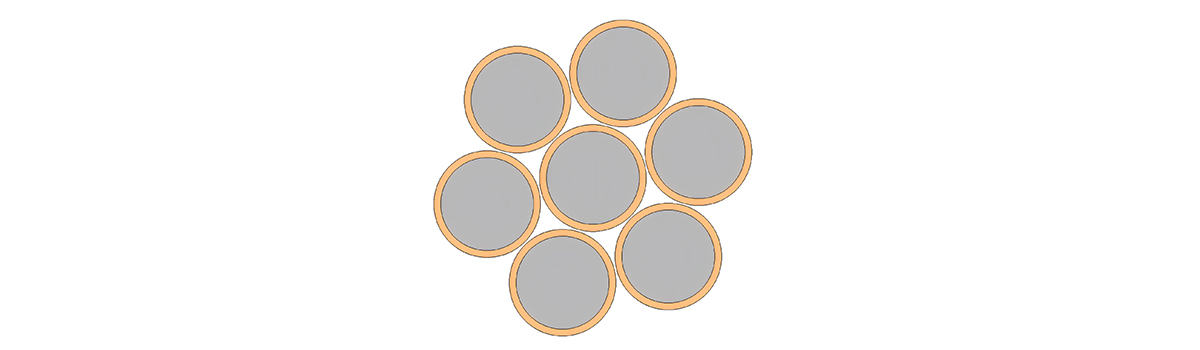

Conductor structure:

conductors are classified as follows: Grade 40 HS, Grade 30 HS, Grade 30 EHS, Grade 40 DSA, and Grade 30 DSA.CCS strand wire is divided into soft state and hard state with perfect conductivity, which is a good choice for various industries such as communications, electrical power and electronics.

Product Application:

DSA Copper Clad Steel stranded conductors are used in place of copper conductors in grounding applications and systems.

CCS-Copper Clad Steel Strand
CCS(Conducti vity20.3)
Size Designat ion
Conductor
Area
No.of
Wires
Diameter
  mm
Min.Rated
Breaking Strength kN
Weight
kg/km
Max.D.C.Resistan ce at 20℃
Ω/km
AWG m㎡ in Wire Cond. Grade 40 HS Grade 40DSA Grade 40
19 No.5 318.71 0.494 19 4.62 23.11 216.66 76.68 2660.8 0.14423
19 No.6 252.71 0.3917 19 4.115 20.57 179.45 60.81 2110.2 0.18183
19 No.7 200.45 0.3107 19 3.665 18.31 148.29 48.23 1674.2 0.22937
19 No. 8 158.97 0.2464 19 3.264 16.31 122.46 38.27 1327.4 0.28896
19 No.9 126.06 0.1954 19 2.906 14.53 100.86 30.33 1052.6 0.36452
7 No. 4 148.06 0.2295 7 5.189 15.57 96.15 35.61 1231.5 0.3093
7 No. 5 117.42 0.182 7 4.62 13.87 79.84 28.25 976.5 0.38978
7 No. 6 93.1 0.1443 7 4.115 12.34 66.1 22.41 774.3 0.4915
7 No.7 73.87 0.1145 7 3.665 11 54.63 17.76 614.5 0.6201
7 No. 8 58.56 0.09077 7 3.264 9.78 45.12 14.1 487.1 0.7812
7 No. 9 46.44 0.07198 7 2.906 8.71 37.16 11.18 386.2 0.9859
7 No. 10 36.83 0.05708 7 2.588 7.77 30.73 8.87 306.3 1.2422
3 No. 5 50.32 0.078 3 4.62 9.96 36.1 12.78 417.7 0.9082
3 No. 6 39.9 0.06185 3 4.115 8.86 29.91 10.14 331.3 1.1447
3 No. 7 31.65 0.04905 3 3.665 7.9 24.71 8.04 262.7 1.444
3 NO. 8 25.1 0.0389 3 3.264 7.04 20.41 6.38 208.3 1.8193
3 No. 9 19.9 0.03085 3 2.906 6.27 16.81 5.05 165.2 2.2957
3 No. 10 15.78 0.02446 3 2.588 5.59 13.9 4.01 131 2.8929
3 No. 12 9.93 0.01539 3 2.052 4.42 7.32 2.55 82.4 4.5573



Size
Designat ion
Conductor Area Diameter
mm
Min.Rated Breaking
Strength kN
Weight
kg/km
Max.
Resistan ce at 20℃Ω/km
AWG in No.of
wires
Wire Cond. Grade
30HS
Grade 30EHS Grade 30DSA Grade 30
19 No.5 318.71 0.494 19 4.62 23.11 239.64 288.54 86.28 2634 0.19227
19 No.6 252.71 0.3917 19 4.115 20.57 197.68 239.51 68.41 2087.9 0.2424
19 No.7 200.45 0.3107 19 3.665 18.31 162.74 197.72 54.23 1656.3 0.30576
19 No. 8 158.97 0.2464 19 3.264 16.31 133.98 162.65 43.06 1313.6 0.3852
19 No.9 126.06 0.1954 19 2.906 14.53 109.93 132.02 34.12 1041.7 0.4862
7 No. 4 148.06 0.2295 7 5.189 15.57 106.86 126.87 40.07 1218.7 0.4124
7 No. 5 117.42 0.182 7 4.62 13.87 88.28 106.28 31.78 966.4 0.5197
7 No. 6 93.1 0.1443 7 4.115 12.34 72.86 88.24 25.21 766.3 0.6552
7 No.7 73.87 0.1145 7 3.665 11 59.97 72.86 19.99 608.1 0.8268
7 No 8 58.56 0.09077 7 3.264 9.78 49.34 59.92 15.86 482 1.0414
.
7 No. 9
46.44 0.07198 7 2.906 8.71 40.51 48.63 12.57 382.2 1.3144
7 No. 10 36.83 0.05708 7 2.588 7.77 33.48 39.69 9.97 303.1 1.6559
3 No. 5 50.32 0.078 3 4.62 9.96 39.94 48.1 14.38 413.4 1.2104
3 No. 6 39.9 0.06185 3 4.115 8.86 32.95 39.92 11.41 327.8 1.526
3 No. 7 31.65 0.04905 3 3.665 7.9 27.12 32.95 9.04 260 1.925
3 NO. 8 25.1 0.0389 3 3.264 7.04 22.33 27.11 7.17 206.1 2.4253
3 No. 9 19.9 0.03085 3 2.906 6.27 18.32 22 5.69 163.5 3.0605
3 No. 10 15.78 0.02446 3 2.588 5.59 15.14 17.95 4.51 129.6 3.855
3 No. 12 9.93 0.01539 3 2.052 4.42 7.64 11.4 2.87 81.6 6.073
