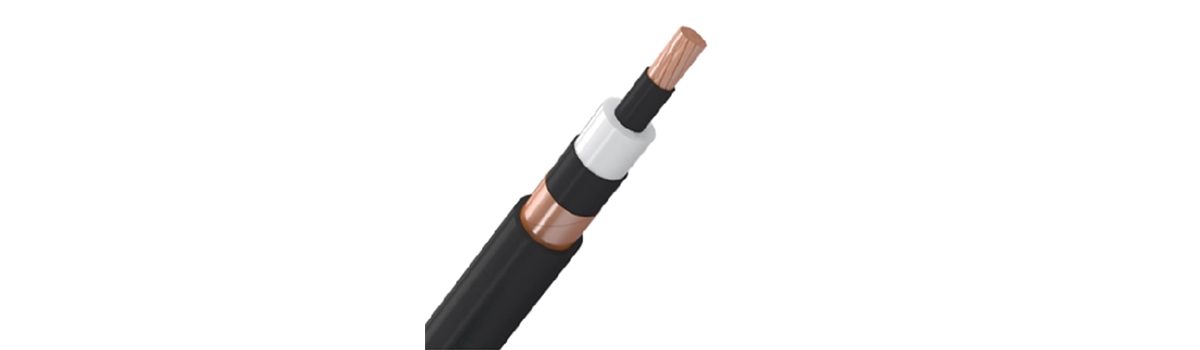

Los cables de media tensión están diseñados para funcionar a tensiones de hasta 18/30 (36) kv y se utilizan normalmente en redes de distribución de media tensión.

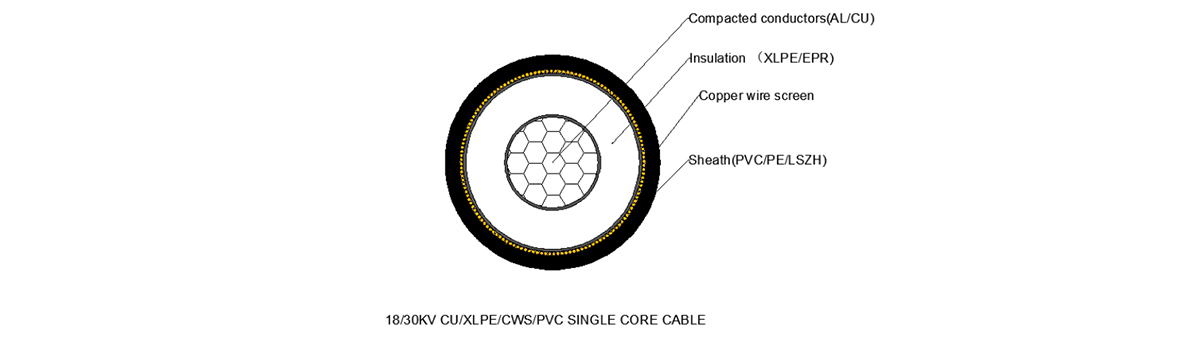

Los conductores pueden estar hechos de cobre o aluminio y suelen estar trenzados y compactados para formar un núcleo redondo y aislado.
Los tamaños de los cables pueden variar de 25 a 630 mm2 por núcleo, con 1 o 3 núcleos aislados que forman el cable.
Se pueden emplear diversas medidas de protección, como la construcción y los materiales para enterramiento directo, estanqueidad longitudinal y/o radial, protección contra termitas y seguridad contra incendios.
BS6622-BS7835(1) | ||||||
SECCIÓN TRANSVERSAL NOMINAL DE LOS CABLES |
SECCIÓN TRANSVERSAL TOTAL | RESISTENCIA MÁXIMA DE CC DE LA PANTALLA DE ALAMBRE DE COBRE A 20 ℃ |
||||
3.8/6.6KV (UM=7.2KV) |
6.35/11KV (UM=12KV) |
8.7/15KV (UM=17.5KV) |
12.7/22KV (UM=24KV) |
19/33KV (UM=36KV) |
||
MM2 | MM2 | Ω | ||||
70 | 16 | 16 | 16 | 16 | 16 | 1.19 |
95 | 16 | 16 | 16 | 16 | 16 | 1.19 |
120 | 16 | 16 | 16 | 16 | 16 | 1.19 |
150 | 25 | 25 | 25 | 25 | 25 | 0.759 |
185 | 25 | 25 | 25 | 25 | 25 | 0.759 |
240 | 25 | 25 | 25 | 25 | 25 | 0.759 |
300 | 25 | 25 | 25 | 25 | 25 | 0.759 |
400 | 35 | 35 | 35 | 35 | 35 | 0.271 |
500 | 35 | 35 | 35 | 35 | 35 | 0.271 |
630 | 35 | 35 | 35 | 35 | 35 | 0.271 |
BS6622-BS7835 (2) | ||||||
SECCIÓN TRANSVERSAL NOMINAL DE LOS CABLES |
SECCIÓN TRANSVERSAL TOTAL | RESISTENCIA MÁXIMA DE CC DE LA PANTALLA DE ALAMBRE DE COBRE A 20 ℃ | ||||
3.8/6.6KV (UM=7.2KV) |
6.35/11KV (UM=12KV) |
8.7/15KV (UM=17.5KV) |
12.7/22KV (UM=24KV) |
19/33KV (UM=36KV) |
||
MM2 | MM2 | Ω | ||||
70 | 16 | 16 | 16 | 16 | 16 | 1.19 |
95 | 16 | 16 | 16 | 16 | 16 | 1.19 |
120 | 16 | 16 | 16 | 16 | 16 | 1.19 |
150 | 25 | 25 | 25 | 25 | 25 | 0.759 |
185 | 25 | 25 | 25 | 25 | 25 | 0.759 |
240 | 25 | 25 | 25 | 25 | 25 | 0.759 |
300 | 25 | 25 | 25 | 25 | 25 | 0.759 |
400 | 35 | 35 | 35 | 35 | 35 | 0.271 |
500 | 35 | 35 | 35 | 35 | 35 | 0.271 |
630 | 35 | 35 | 35 | 35 | 35 | 0.271 |
IEC 60502(1) | ||||||
ÁREA NOMINAL DE LA SECCIÓN TRANSVERSAL DEL CONDUCTOR | SECCIÓN TRANSVERSAL TOTAL | RESISTENCIA MÁXIMA DE CC A 20 ℃ | ||||
3.6/6KV (UM=7.2KV) | 6/10KV (UM=12KV) | 8.7/15KV (UM=17.5KV) |
12/20KV (UM=24KV) | 18/30KV (UM=36KV) | ||
MM2 | MM | MM | MM | MM | MM | Ω |
10 | 10 | 10 | 10 | 10 | 10 | 1.075 |
16 | 16 | 16 | 16 | 16 | 16 | 1.075 |
25 | 16 | 16 | 16 | 16 | 16 | 1.075 |
35 | 16 | 16 | 16 | 16 | 16 | 1.075 |
50 | 16 | 16 | 16 | 16 | 16 | 1.075 |
70 | 16 | 16 | 16 | 16 | 16 | 1.075 |
95 | 16 | 16 | 16 | 16 | 16 | 1.075 |
120 | 16 | 16 | 16 | 16 | 16 | 1.075 |
150 | 25 | 25 | 25 | 25 | 25 | 0.688 |
185 | 25 | 25 | 25 | 25 | 25 | 0.688 |
240 | 25 | 25 | 25 | 25 | 25 | 0.688 |
300 | 25 | 25 | 25 | 25 | 25 | 0.688 |
400 | 35 | 35 | 35 | 35 | 35 | 0.491 |
500 | 35 | 35 | 35 | 35 | 35 | 0.491 |
630 | 35 | 35 | 35 | 35 | 35 | 0.491 |
800 | 50 | 50 | 50 | 50 | 50 | 0.344 |
IEC 60502(2) | ||||||
SECCIÓN TRANSVERSAL | 3.6/6KV (UM=7.2KV) |
6/10KV (UM=12KV) |
8.7/15KV (UM=17.5KV) |
12/20KV (UM=24KV) |
18/30KV (UM=36KV) |
RESISTENCIA A 20℃ |
MM2 | MM | MM | MM | MM | MM | Ω |
10 | 10 | 10 | 10 | 10 | 10 | 1.075 |
16 | 16 | 16 | 16 | 16 | 16 | 1.075 |
25 | 16 | 16 | 16 | 16 | 16 | 1.075 |
35 | 16 | 16 | 16 | 16 | 16 | 1.075 |
50 | 16 | 16 | 16 | 16 | 16 | 1.075 |
70 | 16 | 16 | 16 | 16 | 16 | 1.075 |
95 | 16 | 16 | 16 | 16 | 16 | 1.075 |
120 | 16 | 16 | 16 | 16 | 16 | 1.075 |
150 | 25 | 25 | 25 | 25 | 25 | 0.688 |
185 | 25 | 25 | 25 | 25 | 25 | 0.688 |
240 | 25 | 25 | 25 | 25 | 25 | 0.688 |
300 | 25 | 25 | 25 | 25 | 25 | 0.688 |
400 | 35 | 35 | 35 | 35 | 35 | 0.491 |
500 | 35 | 35 | 35 | 35 | 35 | 0.491 |
630 | 35 | 35 | 35 | 35 | 35 | 0.491 |
800 | 50 | 50 | 50 | 50 | 50 | 0.344 |
1000 | 50 | 50 | 50 | 50 | 50 | 0.344 |
VDE 0276 | ||||||
SECCIÓN TRANSVERSAL NOMINAL DE LOS CABLES MM |
SECCIÓN TRANSVERSAL TOTAL | RESISTENCIA MÁXIMA DE CC DE LA PANTALLA DE ALAMBRE DE COBRE A 20 ℃ | ||||
3.6/6KV (UM=7.2KV) |
6/10KV (UM=12KV) |
8.7/15KV (UM=17.5KV) |
12/20KV (UM=24KV) |
18/30KV (UM=36KV) |
||
MM2 | MM2 | Ω | ||||
70 | 16 | 16 | 16 | 16 | 16 | 1.19 |
95 | 16 | 16 | 16 | 16 | 16 | 1.19 |
120 | 16 | 16 | 16 | 16 | 16 | 1.19 |
150 | 25 | 25 | 25 | 25 | 25 | 0.759 |
185 | 25 | 25 | 25 | 25 | 25 | 0.759 |
240 | 25 | 25 | 25 | 25 | 25 | 0.759 |
300 | 25 | 25 | 25 | 25 | 25 | 0.759 |
400 | 35 | 35 | 35 | 35 | 35 | 0.271 |
500 | 35 | 35 | 35 | 35 | 35 | 0.217 |
630 | 35 | 35 | 35 | 35 | 35 | 0.271 |
5KV 100% SEGÚN ESTÁNDAR ICEA | ||||||||||||
CONDUCTA O | ESPESOR DE AISLAMIENTO (MM/MILS) |
ESPESOR DE LA FUNDA (MM/MILS) |
DIÁMETRO TOTAL (MM/PULG.) | PESO DEL CABLE (KG/KM/LBS/KFT) | AMPACIDAD (AMPERIOS) | |||||||
90°C EN CONDUCTO | 90°C EN EL AIRE | |||||||||||
(D) | CU | AL | CU | AL | CU | AL | ||||||
4 AWG | 2.29/90 | 1.52/60 | 17.5 | 0.69 | 430 | 289 | 299 | 201 | 110 | 86 | 145 | 115 |
2 AWG | 2.29/90 | 1.52/60 | 18.8 | 0.74 | 573 | 385 | 366 | 246 | 145 | 115 | 190 | 150 |
1 AWG | 2.29/90 | 1.52/60 | 19.8 | 0.78 | 670 | 450 | 406 | 273 | 170 | 130 | 225 | 175 |
1/0 AWG | 2.29/90 | 1.52/60 | 20.8 | 0.82 | 792 | 532 | 460 | 309 | 195 | 150 | 260 | 200 |
2/0 AWG | 2.29/90 | 1.52/60 | 23.1 | 0.91 | 989 | 665 | 571 | 384 | 220 | 170 | 300 | 230 |
3/0 AWG | 2.29/90 | 2.03/80 | 24.6 | 0.97 | 1178 | 792 | 652 | 438 | 250 | 195 | 345 | 270 |
4/0 AWG | 2.29/90 | 2.03/80 | 25.9 | 1.02 | 1409 | 947 | 744 | 500 | 290 | 225 | 400 | 310 |
250 MCM | 2.29/90 | 2.03/80 | 27.2 | 1.07 | 1613 | 1084 | 829 | 557 | 320 | 250 | 445 | 345 |
350 MCM | 2.29/90 | 2.03/80 | 29.7 | 1.17 | 2129 | 1431 | 1031 | 693 | 385 | 305 | 550 | 430 |
500 MCM | 2.29/90 | 2.03/80 | 33.5 | 1.32 | 2913 | 1958 | 1345 | 904 | 470 | 370 | 695 | 545 |
750 MCM | 2.29/90 | 2.03/80 | 38.6 | 1.52 | 4187 | 2814 | 1821 | 1224 | 585 | 470 | 900 | 710 |
1000 MCM | 2.29/90 | 2.03/80 | 42.4 | 1.67 | 5426 | 3647 | 2267 | 1524 | 670 | 545 | 1075 | 855 |
5kV 133 | % to ICEA S | tandard | ||||||||||
4 AWG | 2.92/115 | 1.52/60 | 18.8 | 0.74 | 464 | 312 | 335 | 225 | 120 | 86 | 110 | 115 |
2 AWG | 2.92/115 | 1.52/60 | 20.1 | 0.79 | 611 | 411 | 405 | 272 | 155 | 115 | 145 | 150 |
1 AWG | 2.92/115 | 1.52/60 | 21.1 | 0.83 | 711 | 478 | 448 | 301 | 180 | 130 | 170 | 175 |
1/0 AWG | 2.92/115 | 1.52/60 | 23.1 | 0.91 | 884 | 594 | 552 | 371 | 210 | 150 | 200 | 200 |
2/0 AWG | 2.92/115 | 1.52/60 | 24.6 | 0.97 | 1038 | 698 | 620 | 417 | 235 | 170 | 225 | 230 |
3/0 AWG | 2.92/115 | 2.03/80 | 25.7 | 1.01 | 1226 | 824 | 698 | 469 | 270 | 195 | 270 | 270 |
4/0 AWG | 2.92/115 | 2.03/80 | 27.2 | 1.07 | 1461 | 982 | 797 | 536 | 310 | 225 | 305 | 310 |
250 MCM | 2.92/115 | 2.03/80 | 28.4 | 1.12 | 1669 | 1122 | 884 | 594 | 345 | 250 | 355 | 345 |
350 MCM | 2.92/115 | 2.03/80 | 31.2 | 1.23 | 2192 | 1473 | 1094 | 735 | 415 | 305 | 430 | 430 |
500 MCM | 2.92/115 | 2.03/80 | 35.1 | 1.38 | 2983 | 2005 | 1413 | 950 | 505 | 370 | 530 | 545 |
750 MCM | 2.92/115 | 2.03/80 | 39.9 | 1.57 | 4261 | 2864 | 1895 | 1274 | 630 | 470 | 665 | 710 |
1000 MCM | 2.92/115 | 2.03/80 | 45.2 | 1.78 | 5654 | 3800 | 2495 | 1677 | 720 | 545 | 770 | 855 |
8KV 100% SEGÚN NORMA ICEA | ||||||||||||
CONDUCTOR | ESPESOR DEL AISLAMIENTO (MM/MILS) | ESPESOR DE LA FUNDA (MM/MILS) |
DIÁMETRO TOTAL (MMIN.) | PESO DEL CABLE (KG/KM/LBS/KFT) | AMPACIDAD (AMPERIOS) | |||||||
90°C IN DUCT |
90°CIN AIR |
|||||||||||
(D) | CU | AL | CU | AL | CU | AL | ||||||
4 AWG | 2.92/115 | 2.03/80 | 36.1 | 1.42 | 1775 | 1193 | 1382 | 929 | 115 | 89 | 120 | 95 |
2 AWG | 2.92/115 | 2.03/80 | 39.4 | 1.55 | 2254 | 1515 | 1629 | 1095 | 150 | 115 | 165 | 125 |
1 AWG | 2.92/115 | 2.03/80 | 41.7 | 1.64 | 2662 | 1789 | 1785 | 1200 | 170 | 135 | 185 | 145 |
1/0 AWG | 2.92/115 | 2.80/110 | 45.2 | 1.78 | 3211 | 2158 | 2126 | 1429 | 195 | 150 | 215 | 170 |
2/0 AWG | 2.92/115 | 2.80/110 | 47.8 | 1.88 | 3709 | 2493 | 2447 | 1645 | 220 | 170 | 245 | 190 |
3/0 AWG | 2.92/115 | 2.80/110 | 50.5 | 1.99 | 4376 | 2941 | 2729 | 1834 | 250 | 195 | 285 | 220 |
4/0 AWG | 2.92/115 | 2.80/110 | 53.6 | 2.11 | 5137 | 3453 | 3074 | 2066 | 285 | 220 | 325 | 255 |
250 MCM | 2.92/115 | 2.80/110 | 56.4 | 2.22 | 5807 | 3903 | 3382 | 2273 | 310 | 245 | 360 | 280 |
350 MCM | 2.92/115 | 2.80/110 | 62 | 2.44 | 7546 | 5072 | 4161 | 2797 | 375 | 295 | 435 | 345 |
500 MCM | 2.92/115 | 3.56/140 | 70.1 | 2.76 | 10175 | 6839 | 5349 | 3595 | 450 | 355 | 535 | 425 |
750 MCM | 2.92/115 | 3.56/140 | 81.8 | 3.22 | 14624 | 9829 | 7372 | 4955 | 545 | 440 | 670 | 540 |
1000 MCM | 2.92/115 | 3.56/140 | 90.2 | 3.55 | 18604 | 12504 | 9080 | 6103 | 615 | 510 | 770 | 635 |
8 kV 133 % según la norma ICEA | ||||||||||||
2 AWG | 3.56/140 | 2.03/80 | 42.2 | 1.66 | 2415 | 1623 | 1791 | 1204 | 150 | 115 | 165 | 125 |
1 AWG | 3.56/140 | 2.80/110 | 45.7 | 1.8 | 2979 | 2002 | 2102 | 1413 | 170 | 135 | 185 | 145 |
1/0 AWG | 3.56/140 | 2.80/110 | 48 | 1.89 | 3395 | 2282 | 2311 | 1553 | 195 | 150 | 215 | 170 |
2/0 AWG | 3.56/140 | 2.80/110 | 50.5 | 1.99 | 3901 | 2622 | 2639 | 1774 | 220 | 170 | 245 | 190 |
3/0 AWG | 3.56/140 | 2.80/110 | 53.1 | 2.09 | 4576 | 3076 | 2929 | 1969 | 250 | 195 | 285 | 220 |
4/0 AWG | 3.56/140 | 2.80/110 | 56.4 | 2.22 | 5347 | 3594 | 3285 | 2208 | 285 | 220 | 325 | 255 |
250 MCM | 3.56/140 | 2.80/110 | 59.2 | 2.33 | 6027 | 4051 | 3602 | 2421 | 310 | 245 | 360 | 280 |
350 MCM | 3.56/140 | 2.80/110 | 64.8 | 2.55 | 7784 | 5232 | 4399 | 2957 | 375 | 295 | 435 | 345 |
500 MCM | 3.56/140 | 3.56/140 | 74.4 | 2.93 | 10682 | 7180 | 5856 | 3936 | 450 | 355 | 535 | 425 |
750 MCM | 3.56/140 | 3.56/140 | 84.6 | 3.33 | 14929 | 10034 | 7679 | 5161 | 545 | 440 | 670 | 540 |
1000 MCM | 3.56/140 | 3.56/140 | 93 | 3.66 | 18937 | 12728 | 9413 | 6327 | 615 | 510 | 770 | 635 |
5KV 100% TO ICEA STANDARD | ||||||||||||
CONDUCTA O | ESPESOR DE AISLAMIENTO (MM/ |
ESPESOR DE LA FUNDA (MM/MILS) |
DIÁMETRO TOTAL (MM/PULG.) | PESO DEL CABLE (KG/KM/LBS/KFT) | AMPACIDAD (AMPERIOS) | |||||||
90°CIN DUCT |
90°C IN AIR |
|||||||||||
(D) | CU | AL | CU | AL | CU | AL | ||||||
2 AWG | 4.45/175 | 2.80/110 | 47.5 | 1.87 | 2809 | 1888 | 2186 | 1469 | 150 | 115 | 165 | 125 |
1 AWG | 4.45/175 | 2.80/110 | 49.8 | 1.96 | 3242 | 2179 | 2366 | 1590 | 170 | 135 | 185 | 145 |
1/0 AWG | 4.45/175 | 2.80/110 | 51.8 | 2.04 | 3669 | 2466 | 2583 | 1736 | 195 | 150 | 215 | 170 |
2/0 AWG | 4.45/175 | 2.80/110 | 54.4 | 2.14 | 4185 | 2813 | 2924 | 1965 | 220 | 170 | 245 | 190 |
3/0 AWG | 4.45/175 | 2.80/110 | 56.9 | 2.24 | 4873 | 3275 | 3226 | 2168 | 250 | 195 | 285 | 220 |
4/0 AWG | 4.45/175 | 2.80/110 | 60.2 | 2.37 | 5658 | 3803 | 3595 | 2416 | 285 | 220 | 325 | 255 |
250 MCM | 4.45/175 | 2.80/110 | 63 | 2.48 | 6350 | 4268 | 3925 | 2638 | 310 | 245 | 360 | 280 |
350 MCM | 4.45/175 | 3.56/140 | 69.6 | 2.74 | 8226 | 5529 | 4841 | 3254 | 375 | 295 | 435 | 345 |
500 MCM | 4.45/175 | 3.56/140 | 78.2 | 3.08 | 11080 | 7447 | 6253 | 4203 | 450 | 355 | 535 | 425 |
750 MCM | 4.45/175 | 3.56/140 | 88.4 | 3.48 | 15374 | 10333 | 8122 | 5459 | 545 | 440 | 670 | 540 |
1000 MCM | 4.45/175 | 3.56/140 | 97.5 | 3.84 | 19547 | 13138 | 10023 | 6737 | 615 | 510 | 770 | 635 |
15 kV 133 % según la norma ICEA | ||||||||||||
2 AWG | 5.59/220 | 2.80/110 | 52.3 | 2.06 | 3160 | 2124 | 2537 | 1705 | 150 | 115 | 165 | 125 |
1 AWG | 5.59/220 | 2.80/110 | 54.6 | 2.15 | 3606 | 2424 | 2729 | 1834 | 170 | 135 | 185 | 145 |
1/0 AWG | 5.59/220 | 2.80/110 | 56.9 | 2.24 | 4045 | 2719 | 2959 | 1989 | 195 | 150 | 215 | 170 |
2/0 AWG | 5.59/220 | 2.80/110 | 59.2 | 2.33 | 4575 | 3075 | 3313 | 2227 | 220 | 170 | 245 | 190 |
3/0 AWG | 5.59/220 | 2.80/110 | 62 | 2.44 | 5279 | 3548 | 3632 | 2441 | 250 | 195 | 285 | 220 |
4/0 AWG | 5.59/220 | 2.80/110 | 65 | 2.56 | 6082 | 4088 | 4019 | 2701 | 285 | 220 | 325 | 255 |
250 MCM | 5.59/220 | 2.80/110 | 68.8 | 2.71 | 6884 | 4627 | 4459 | 2997 | 310 | 245 | 360 | 280 |
350 MCM | 5.59/220 | 3.56/140 | 75.9 | 2.99 | 8954 | 6018 | 5569 | 3743 | 375 | 295 | 435 | 345 |
500 MCM | 5.59/220 | 3.56/140 | 83.1 | 3.27 | 11617 | 7808 | 6790 | 4564 | 450 | 355 | 535 | 425 |
750 MCM | 5.59/220 | 3.56/140 | 93.5 | 3.68 | 15969 | 10733 | 8717 | 5859 | 545 | 440 | 670 | 540 |
1000 MCM | 5.59/220 | 3.56/140 | 102.6 | 4.04 | 20196 | 13574 | 10672 | 7173 | 615 | 510 | 770 | 635 |
25KV 100% SEGÚN ESTÁNDAR ICEA | ||||||||||||
CONDUCTO R | ESPESOR DEL AISLAMIENTO (MM/MILS) | ESPESOR DE LA FUNDA (MM/MILS) | DIÁMETRO TOTAL (MM/PULG.) | CABLE WEIGHT (KG/KM/ LBS/KFT) | AMPACIDAD (AMPERIOS) | |||||||
90°C IN DUCT |
90°C IN AIR |
|||||||||||
(D) | CU | AL | CU | AL | CU | AL | ||||||
1 AWG | 6.60/260 | 2.80/110 | 57.9 | 2.28 | 4038 | 2714 | 3248 | 2183 | 185 | 145 | 210 | 165 |
1/0 AWG | 6.60/260 | 2.80/110 | 60.2 | 2.37 | 4510 | 3031 | 3492 | 2347 | 210 | 165 | 240 | 185 |
2/0 AWG | 6.60/260 | 2.80/110 | 62.2 | 2.45 | 5117 | 3439 | 3867 | 2599 | 235 | 185 | 275 | 215 |
3/0 AWG | 6.60/260 | 2.80/110 | 65.5 | 2.58 | 5874 | 3948 | 4291 | 2884 | 270 | 210 | 315 | 245 |
4/0 AWG | 6.60/260 | 3.56/140 | 68.6 | 2.7 | 6698 | 4502 | 4707 | 3164 | 305 | 240 | 360 | 285 |
250 MCM | 6.60/260 | 3.56/140 | 72.9 | 2.87 | 7674 | 5158 | 5329 | 3582 | 335 | 265 | 400 | 315 |
350 MCM | 6.60/260 | 3.56/140 | 78.5 | 3.09 | 9547 | 6417 | 6246 | 4198 | 400 | 315 | 490 | 385 |
500 MCM | 6.60/260 | 3.56/140 | 85.1 | 3.35 | 12216 | 8211 | 7509 | 5047 | 485 | 385 | 600 | 475 |
750 MCM | 6.60/260 | 3.56/140 | 96 | 3.78 | 16854 | 11328 | 9645 | 6483 | 585 | 475 | 745 | 600 |
1000 MCM | 6.60/260 | 3.56/140 | 104.4 | 4.11 | 21054 | 14151 | 11611 | 7804 | 660 | 545 | 860 | 705 |
25kV 13 | 3% to ICEA S | tandard | ||||||||||
1/0 AWG | 8.76/345 | 3.56/140 | 72.1 | 2.84 | 5813 | 3907 | 4791 | 3220 | 210 | 165 | 240 | 185 |
2/0 AWG | 8.76/345 | 3.56/140 | 74.2 | 2.92 | 6454 | 4338 | 5207 | 3500 | 235 | 185 | 275 | 215 |
3/0 AWG | 8.76/345 | 3.56/140 | 76.7 | 3.02 | 7167 | 4817 | 5584 | 3753 | 270 | 210 | 315 | 245 |
4/0 AWG | 8.76/345 | 3.56/140 | 79.8 | 3.14 | 8042 | 5405 | 6052 | 4068 | 305 | 240 | 360 | 285 |
250 MCM | 8.76/345 | 3.56/140 | 82.6 | 3.25 | 8824 | 5931 | 6479 | 4355 | 335 | 265 | 400 | 315 |
350 MCM | 8.76/345 | 3.56/140 | 87.9 | 3.46 | 10770 | 7239 | 7469 | 5020 | 400 | 315 | 490 | 385 |
500 MCM | 8.76/345 | 3.56/140 | 95.5 | 3.76 | 13658 | 9180 | 8951 | 6016 | 485 | 385 | 600 | 475 |
1,8-3 kV RG7H1R RG7H1OR Medio | ||||||||
Formación | Aprox. Ø del conductor |
Espesor promedio de aislamiento |
Máximo Ø externo |
Peso aproximado del cable |
Calificación actual A |
|||
in air | buried* | |||||||
n°xmm2 | mm | mm | mm | kg/km | trefoil | flat | trefoil | flat |
1x10 | 4,0 | 2,0 | 14,0 | 290 | 87 | 111 | 99 | 104 |
1x16 | 4,8 | 2,0 | 15,0 | 350 | 114 | 145 | 126 | 133 |
1x25 | 6,0 | 2,0 | 16,0 | 450 | 149 | 190 | 162 | 171 |
1x35 | 7,0 | 2,0 | 17,0 | 550 | 181 | 230 | 193 | 204 |
1x50 | 8,1 | 2,0 | 18,5 | 670 | 219 | 276 | 227 | 241 |
1x70 | 9,7 | 2,0 | 20,5 | 880 | 275 | 345 | 278 | 294 |
1x95 | 11,4 | 2,0 | 22,0 | 1100 | 339 | 422 | 332 | 351 |
1x120 | 12,9 | 2,0 | 24,5 | 1400 | 393 | 487 | 377 | 399 |
1x150 | 14,3 | 2,0 | 26,0 | 1650 | 446 | 550 | 421 | 445 |
1x185 | 16,0 | 2,0 | 27,5 | 2000 | 516 | 635 | 477 | 500 |
1x240 | 18,3 | 2,0 | 30,0 | 2550 | 617 | 745 | 550 | 580 |
1x300 | 21,0 | 2,0 | 32,5 | 3150 | 709 | 855 | 621 | 650 |
1x400 | 23,2 | 2,0 | 35,5 | 3950 | 824 | 990 | 702 | 735 |
1x500 | 26,1 | 2,2 | 40,0 | 5050 | 954 | 1140 | 790 | 830 |
1x630 | 30,3 | 2.4 | 44 | 6300 | 1102 | 1300 | 885 | 93 |
The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
