El cable de acero revestido de cobre (CCS Wire) combina la alta resistencia a la tracción del acero como núcleo y las propiedades de conductividad del cobre como capa exterior. El material del núcleo suele ser acero con bajo contenido de carbono y se utiliza normalmente como cable de puesta a tierra o como conductor interno de cables coaxiales.
Los conductores trenzados de acero revestido de cobre DSA se utilizan en lugar de conductores de cobre en aplicaciones y sistemas de puesta a tierra. Los conductores se clasifican de la siguiente manera: Grado 40 HS, Grado 30 HS, Grado 30 EHS, Grado 40 DSA y Grado 30 DSA. El cable trenzado CCS se divide en estado blando y estado duro con una conductividad perfecta, lo que lo convierte en una buena opción para diversas industrias, como las comunicaciones, la energía eléctrica y la electrónica.

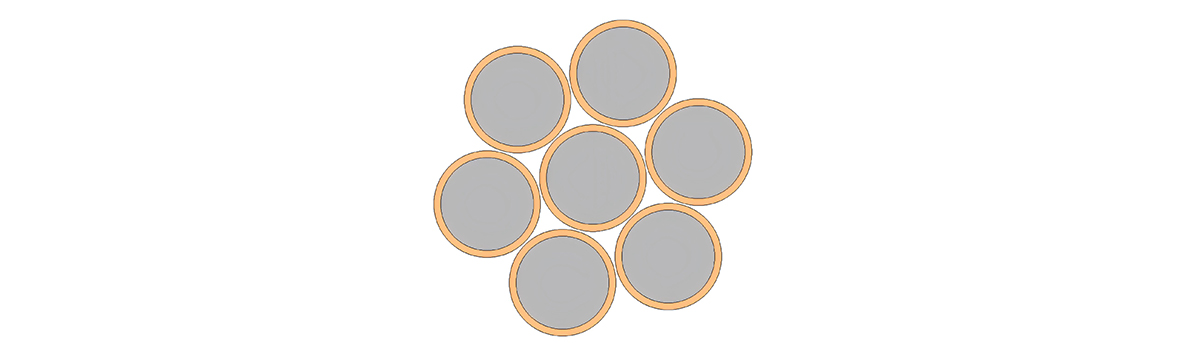

CCS-Copper Clad Steel Strand | |||||||||
CCS(Vidad de conducta20.3) Designación de tamaño |
Conductor Área |
Número de cables |
Diámetro mm |
Resistencia a la rotura nominal mínima en kN | Peso kg/km |
Resistencia máxima de CC a 20 ℃ Oh/km |
|||
AWG | m㎡ | in | Wire | Cond. | Grado 40 de secundaria | Grado 40DSA | Grade 40 | ||
19 No.5 | 318.71 | 0.494 | 19 | 4.62 | 23.11 | 216.66 | 76.68 | 2660.8 | 0.14423 |
19 No.6 | 252.71 | 0.3917 | 19 | 4.115 | 20.57 | 179.45 | 60.81 | 2110.2 | 0.18183 |
19 No.7 | 200.45 | 0.3107 | 19 | 3.665 | 18.31 | 148.29 | 48.23 | 1674.2 | 0.22937 |
19 No. 8 | 158.97 | 0.2464 | 19 | 3.264 | 16.31 | 122.46 | 38.27 | 1327.4 | 0.28896 |
19 No.9 | 126.06 | 0.1954 | 19 | 2.906 | 14.53 | 100.86 | 30.33 | 1052.6 | 0.36452 |
7 No. 4 | 148.06 | 0.2295 | 7 | 5.189 | 15.57 | 96.15 | 35.61 | 1231.5 | 0.3093 |
7 No. 5 | 117.42 | 0.182 | 7 | 4.62 | 13.87 | 79.84 | 28.25 | 976.5 | 0.38978 |
7 No. 6 | 93.1 | 0.1443 | 7 | 4.115 | 12.34 | 66.1 | 22.41 | 774.3 | 0.4915 |
7 No.7 | 73.87 | 0.1145 | 7 | 3.665 | 11 | 54.63 | 17.76 | 614.5 | 0.6201 |
7 No. 8 | 58.56 | 0.09077 | 7 | 3.264 | 9.78 | 45.12 | 14.1 | 487.1 | 0.7812 |
7 No. 9 | 46.44 | 0.07198 | 7 | 2.906 | 8.71 | 37.16 | 11.18 | 386.2 | 0.9859 |
7 No. 10 | 36.83 | 0.05708 | 7 | 2.588 | 7.77 | 30.73 | 8.87 | 306.3 | 1.2422 |
3 No. 5 | 50.32 | 0.078 | 3 | 4.62 | 9.96 | 36.1 | 12.78 | 417.7 | 0.9082 |
3 No. 6 | 39.9 | 0.06185 | 3 | 4.115 | 8.86 | 29.91 | 10.14 | 331.3 | 1.1447 |
3 No. 7 | 31.65 | 0.04905 | 3 | 3.665 | 7.9 | 24.71 | 8.04 | 262.7 | 1.444 |
3 NO. 8 | 25.1 | 0.0389 | 3 | 3.264 | 7.04 | 20.41 | 6.38 | 208.3 | 1.8193 |
3 No. 9 | 19.9 | 0.03085 | 3 | 2.906 | 6.27 | 16.81 | 5.05 | 165.2 | 2.2957 |
3 No. 10 | 15.78 | 0.02446 | 3 | 2.588 | 5.59 | 13.9 | 4.01 | 131 | 2.8929 |
3 No. 12 | 9.93 | 0.01539 | 3 | 2.052 | 4.42 | 7.32 | 2.55 | 82.4 | 4.5573 |
Size Designat ion |
Conductor Area | Diameter mm |
Min.Rated Breaking Strength kN |
Weight kg/km |
Max. Resistan ce at 20℃Ω/km |
|||||
AWG | in | No.of wires |
Wire | Cond. | Grade 30HS |
Grade 30EHS | Grade 30DSA | Grade 30 | ||
19 No.5 | 318.71 | 0.494 | 19 | 4.62 | 23.11 | 239.64 | 288.54 | 86.28 | 2634 | 0.19227 |
19 No.6 | 252.71 | 0.3917 | 19 | 4.115 | 20.57 | 197.68 | 239.51 | 68.41 | 2087.9 | 0.2424 |
19 No.7 | 200.45 | 0.3107 | 19 | 3.665 | 18.31 | 162.74 | 197.72 | 54.23 | 1656.3 | 0.30576 |
19 No. 8 | 158.97 | 0.2464 | 19 | 3.264 | 16.31 | 133.98 | 162.65 | 43.06 | 1313.6 | 0.3852 |
19 No.9 | 126.06 | 0.1954 | 19 | 2.906 | 14.53 | 109.93 | 132.02 | 34.12 | 1041.7 | 0.4862 |
7 No. 4 | 148.06 | 0.2295 | 7 | 5.189 | 15.57 | 106.86 | 126.87 | 40.07 | 1218.7 | 0.4124 |
7 No. 5 | 117.42 | 0.182 | 7 | 4.62 | 13.87 | 88.28 | 106.28 | 31.78 | 966.4 | 0.5197 |
7 No. 6 | 93.1 | 0.1443 | 7 | 4.115 | 12.34 | 72.86 | 88.24 | 25.21 | 766.3 | 0.6552 |
7 No.7 | 73.87 | 0.1145 | 7 | 3.665 | 11 | 59.97 | 72.86 | 19.99 | 608.1 | 0.8268 |
7 No 8 | 58.56 | 0.09077 | 7 | 3.264 | 9.78 | 49.34 | 59.92 | 15.86 | 482 | 1.0414 |
. 7 No. 9 |
46.44 | 0.07198 | 7 | 2.906 | 8.71 | 40.51 | 48.63 | 12.57 | 382.2 | 1.3144 |
7 No. 10 | 36.83 | 0.05708 | 7 | 2.588 | 7.77 | 33.48 | 39.69 | 9.97 | 303.1 | 1.6559 |
3 No. 5 | 50.32 | 0.078 | 3 | 4.62 | 9.96 | 39.94 | 48.1 | 14.38 | 413.4 | 1.2104 |
3 No. 6 | 39.9 | 0.06185 | 3 | 4.115 | 8.86 | 32.95 | 39.92 | 11.41 | 327.8 | 1.526 |
3 No. 7 | 31.65 | 0.04905 | 3 | 3.665 | 7.9 | 27.12 | 32.95 | 9.04 | 260 | 1.925 |
3 NO. 8 | 25.1 | 0.0389 | 3 | 3.264 | 7.04 | 22.33 | 27.11 | 7.17 | 206.1 | 2.4253 |
3 No. 9 | 19.9 | 0.03085 | 3 | 2.906 | 6.27 | 18.32 | 22 | 5.69 | 163.5 | 3.0605 |
3 No. 10 | 15.78 | 0.02446 | 3 | 2.588 | 5.59 | 15.14 | 17.95 | 4.51 | 129.6 | 3.855 |
3 No. 12 | 9.93 | 0.01539 | 3 | 2.052 | 4.42 | 7.64 | 11.4 | 2.87 | 81.6 | 6.073 |
