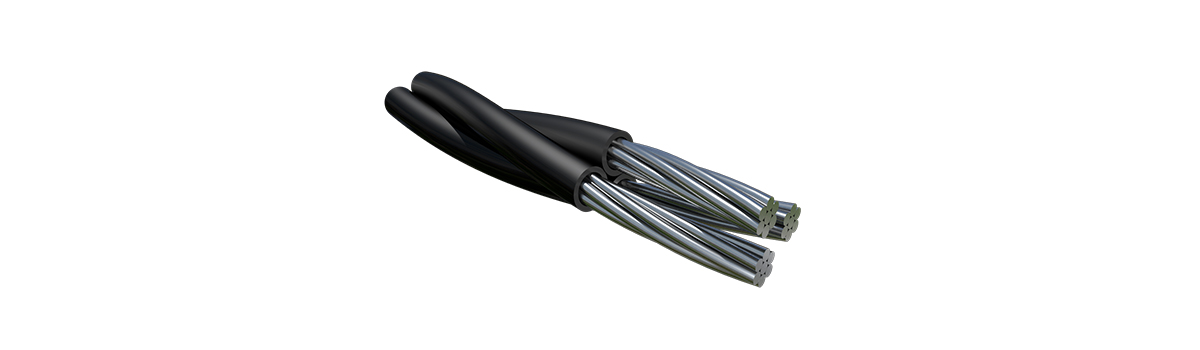

Assembling insulated wire bundles ABC-standard

Assembling insulated wire bundles ABC-standard
Assembling insulated wire bundles ABC-standard
Assembling insulated wire bundles ABC-standard

Product Description :

The voltage of overhead insulated cable is 0.6/1KV. It is an insulated overhead wire. The conductor is generally AAC, AAAC stranded wire, and the insulation material is 90℃ cross-linked polyethylene. Rated voltage: 600/1000V，Insulation material: Cross-linked polyethylene

Application：

1.Power transmission： The power generated by the power plant is transmitted to the substations in various cities and regions through overhead insulated wires

2.Power distribution： The high-voltage power from the substation is converted into low-voltage power and transmitted to homes, commercial buildings, industrial facilities and other places for human use.

3.Power supply for electrified railways： Overhead insulated wires are often used to supply power to electrified railways such as trams and subways.

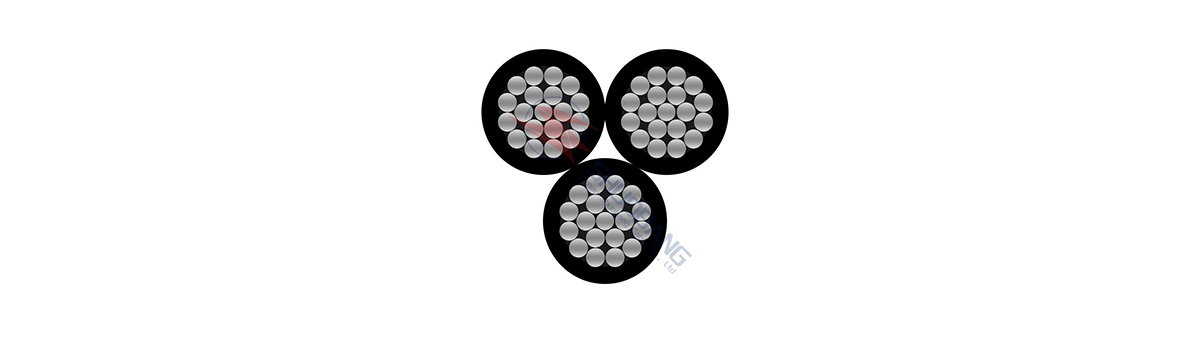

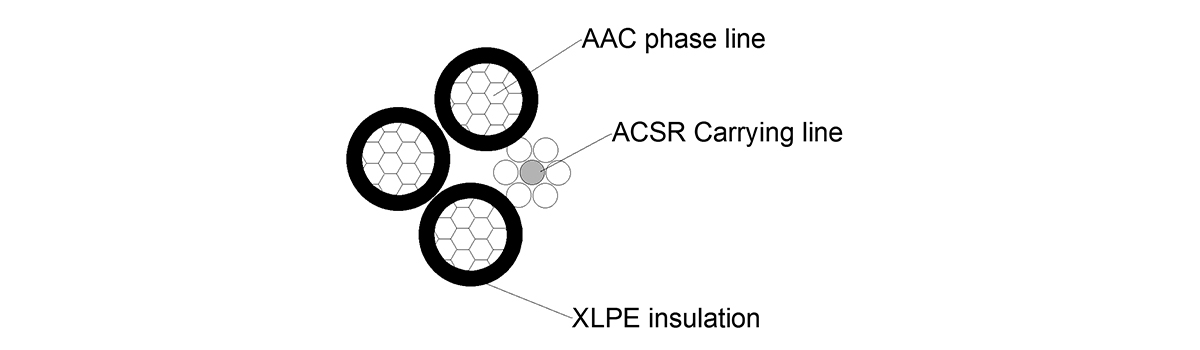

Structure：

1.Conductor： The wire core has a circular cross-section. Bundled conductors with or without supporting cores, auxiliary cores or grounding cores or a combination of the above cores. The outermost stranding direction of the conductor is left. In ABC cables, steel-cored aluminum stranded wires or Aluminum alloy stranded wires make conductors.

2.Insulation： The insulation layer of ABC cables is usually made of cross-linked polyethylene material, which has excellent pressure resistance and insulation properties. The thickness of the insulating layer can be designed and adjusted according to the use environment and electrical requirements

3.Cabling： Multi-core cables (multiple-conductors) should be cabled, the cabled direction is right, and the cabled pitch ratio is 60 times.

Product Advantages:

1. Low operating cost： The construction cost, operating cost and maintenance cost of overhead insulated cables are lower than those of underground cables because they do not need to be laid, excavated, backfilled, etc. underground, and are easier to repair and replace.

2. Troubleshooting： Convenient Overhead insulated cables are easy to find and locate when they fail, and can be repaired at a relatively fast speed to ensure the reliability of power supply. Once an underground cable fails, it may be more troublesome to find and the repair time will be relatively long.

3. Wide scope of application： Overhead insulated cables are suitable for various harsh environments, such as strong winds, lightning strikes, etc., while underground cables are greatly affected by geological conditions and the environment, and may not be suitable for all regions and application scenarios.

4. Fast construction speed Overhead insulated cables can be directly erected in the sky, without being restricted by terrain and buildings, so the construction speed is faster.

Implementation Standards：

GB/T 12527 Standard

Type of conductor or core Nominal cross-sectional area mm2 Number of wires  mm Resistance at 200C
Ω/km
Max		 Diamater of conductor
mm
Min		 Diamater of conductor mm Max Breaking force Min Thickness of dielectric mm Average Thickness of dielectric mm Min  core Outside diameter mm Min core Outside diameter mm Max
Phase or auxiliary or nonstrain- bearing neutral(aluminium) 16 6 1.91 4.6 5.1 2070 1.2 0.98 7 7.8
25 6 1.2 5.8 6.3 3300 1.4 1.16 8.6 9.4
35 6 0.868 6.8 7.3 4500 1.6 1.34 10 10.9
50 6 0.641 7.9 8.4 6200 1.6 1.34 11.1 12
70 12 0.443 9.7 10.2 8900 1.8 1.52 13.3 14.2
95 15 0.32 11 12 12300 1.8 1.52 14.6 16
120 15 0.253 12.5 13.5 15600 1.8 1.52 16.3 17.5
150 15 0.206 13.9 15 19200 1.8 1.52 17.1 18.6
1.52
Service connection (aluminium) 16         25 6            6 1.91   1.2   1.83 1.15 0.727 4.6 5.6 2070     3300 1.2     1.4 0.98      1.16 7.0         8.6 8.0        9.6
Service connection (copper) 10 6 1.83 _ 4.2 3600 1.2 0.98 6.2 7
15 6 1.15 _ 5.3 5700 1.2 0.98 7.2 8
25 6 0.727 _ 6.6 8750 1.4 1.16 8.6 9.6
Supporting (aluminium) 54.6 7*3.15 0.63 9.2 9.6 16600 1.6 1.34 12.3 13
70 7*3.50 0.5 10 10.4 20100 1.6 1.34 12.9 13.6



AAAC Conductor Supported Service Drop Cable- ICEA S-76-474
Code Name Size Al   Phase Core AAAC   Conductor Rated Strength Approx.Overall Dia. Approx.Weight
Cross-section Area Str. Dia. Insulation   Nominal Cross-section   Area Stranding No. Dia.
No. Thickness
AWG/MCM mm2 No.s mm mm mm2 No.s mm KN mm kg/km
Duplex
Chihuahua 1X6AWG+6AWG 13.3 1 4.11 1.14 15.5 7 5.04 4.93 11.43 96
Vizsla 1X6AWG+6AWG 13.3 7 4.65 1.14 15.5 7 5.04 4.93 11.97 98
Harrier 1X4AWG+4AWG 21.15 1 5.19 1.14 24.67 7 6.36 7.82 13.83 146
Whippet 1X4AWG+4AWG 21.15 7 5.7 1.14 24.67 7 6.36 7.82 14.34 148
Schnauzer 1X2AWG+2AWG 33.62 7 7.2 1.14 39.25 7 8.02 12.45 17.5 226
Heeler 1X1/0AWG+1/0AWG 53.49 19 9.2 1.52 62.48 7 10.1 19.83 22.35 364
Triplex
Hippa 2X6AWG+30.58MCM 13.3 7 4.66 1.14 15.5 7 5.04 4.93 13.58 154
Bamacle 2X4AWG+48.69MCM 21.15 7 5.7 1.14 24.67 7 6.36 7.82 16.03 230
Shrimp 2X2AWG+77.47MCM 33.62 7 7.2 1.14 39.25 7 8.01 12.45 19.36 349
Gammarus 2X1/0AWG+123.3MCM 53.51 7 9.2 1.52 62.48 7 10.11 19.83 24.84 562
Cyclops 2X2/0AWG+155.4MCM 67.44 19 10.3 1.52 78.74 7 11.34 23.96 27.3 693
Flustra 2X3/0AWG+195.7MCM 85.03 19 11.6 1.52 99.16 7 12.75 30.18 30.18 858
Lepas 2X4/0AWG+246.9MCM 107.22 19 13 1.52 125.11 7 14.31 38.05 33.31 1064
Crab 2X4AWG+30.58MCM 21.15 7 5.7 1.14 15.5 7 5.04 4.93 15.08 205
Solaster 2X2AWG+48.69MCM 33.62 7 7.2 1.14 24.67 7 6.36 7.82 18.18 309
Sandcrab 2X1/0AWG+77.47MCM 53.51 7 9.2 1.52 39.25 7 8.01 12.45 23.33 498
Sipho 2X2/0AWG+97.65MCM 67.44 19 10.3 1.52 49.48 7 9 15.69 25.62 613
Fulgar 2X3/0AWG+123.3MCM 85.03 19 11.6 1.52 62.48 7 10.11 19.83 28.28 757
Arca 2X4/0AWG+155.4AWG 107.22 19 13 1.52 78.74 7 11.34 23.96 31.18 936
QUADRUPLEX
French Coach 3X6AWG+30.58MCM 13.3 7 4.66 1.14 15.5 7 5.04 4.93426 15.61 211
Arabian 3X4AWG+48.69MCM 21.15 7 5.7 1.14 24.67 7 6.36 7.82369 18.29 312
Belgian 3X2AWG+77.47MCM 33.62 7 7.2 1.14 39.25 7 8.01 12.4468 22 469
Shetland 3X1/0AWG+123.3MCM 53.51 19 9.2 1.52 62.48 7 10.11 19.8259 28.26 757
Thoroughbred 3X2/0AWG+155.4MCM 67.44 19 10.3 1.52 78.74 7 11.34 23.9601 31 932
Trotter 3X3/0AWG+195.7MCM 85.03 19 11.6 1.52 99.16 7 12.75 30.1835 34.2 1151
Walking 3X4/0AWG+246.9MCM 107.2 19 13 1.52 125.1 7 14.31 38.0516 37.68 1424



AAC Conductor Supported Service Drop Cable- ICEA S-76-474
Code Name Size Al Phase Core AAAC Conductor Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area Str. No. Dia. Insulation Nominal Cross-section Area Str. No. Dia.
Thickness
AWG/MCM mm2 No.s mm mm mm2 No.s mm KN mm kg/km
DUPLEX
Collie 1X6+6AWG 13.3 7 4.65 1.14 13.3 7 4.68 2.5 11.6 92
Spaniel 1X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 13.8 138.3
Doberman 1X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6 16.8 211.2
Malemute 1X1/0+1/0AWG 53.5 19 9.2 1.52 53.51 7 9.36 8.8 21.6 339.9
TRIPLEX
Patella 2X6+6AWG 13.3 7 4.65 1.14 13.3 7 4.68 2.5 13.3 149
Oyster 2X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 15.6 221
Clam 2X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6 18.9 334
Murex 2X1/0+1/0AWG 53.49 7 9.2 1.52 53.51 7 9.36 8.8 24.2 538
Nassa 2X2/0+2/0AWG 67.43 7 10.3 1.52 67.44 7 10.5 11.2 26.6 663
Melita 2X3/0+3/0AWG 85.01 19 11.6 1.52 85.03 7 11.79 14.7 29.4 820
Portunus 2X4/0+4/0AWG 107.2 19 13 1.52 107.2 7 13.26 17.9 32.5 1017
Nannynose 2X336.4+336.4MCM 170.45 19 16.56 2.03 170.46 19 16.9 27.3 41.7 1631
QUADRUPLEX
Pinto 3X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 18 302
Mustang 3X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6 21.6 454
Criollo 3X1/0+1/0AWG 53.51 19 9.2 1.52 53.51 7 9.36 8.8 27.8 734
Percheron 3X2/0+2/0AWG 67.44 19 10.3 1.52 67.44 7 10.5 11.2 30.4 902
Hanoverian 3X3/0G+3/0AWG 85.03 19 11.6 1.52 85.03 7 11.79 14.7 33.6 1113
Oldenburg 3X4/0+4/0AWG 107.2 19 13 1.52 107.2 7 13.26 17.9 37 1377
Lippizaner 3X336.4+336.4MCM 170.46 19 16.56 2.03 170.46 19 16.9 27.3 47.5 2212



ACSR Conductor Supported Service Drop Cable- ICEA S-76-474
Code Name Size Al Phase Core ACSR Messenger
Cross-section Area Str. No. Dia. Insulation Nominal Thickness Cross-section Area Al Wire St Wire Stranded Dia.
Str. Dia. Str. No. Dia.
No.
AWG/MCM mm2 No.s mm mm mm2 No.s mm No.s mm mm
DUPLEX
Shepherd 1X6+6 13.3 7 4.68 1.14 13.3 6 1.68 1 1.68 5.04
Terrier 1X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36
Chow 1X2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01
Bull 1X1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11
TRIPLEX
Voluta 2X6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04
Periwinkle 2X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36
Conch 2X2+6 33.6 7 7.2 1.14 13.3 6 2.67 1 2.67 8.01
Neritina 2X1/0+1/0 53.5 7 9.2 1.52 53.51 6 3.37 1 3.34 10.02
Triton 2X2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34
Mursia 2X3/0+3/0 85 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75
Zuzara 2X4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31
Limpet 2X336.4+336.4 170.4 19 16.56 2.03 170.46 18 3.47 1 3.47 17.35
Strombus 2X4+6 21.1 7 5.7 1.14 13.3 6 1.68 1 1.68 5.04
Cockle 2X2+4 33.6 7 7.2 1.14 21.15 6 2.12 1 2.12 6.36
Janthina 2X1/0+2 53.5 7 9.2 1.52 33.62 6 2.67 1 2.67 8.01
Ranella 2X1/0+2 53.5 19 9.2 1.52 33.62 6 2.67 1 2.67 8.01
Clio 2X2/0+1 67.4 19 10.3 1.52 42.41 6 3 1 3 9
Aega 2X3/0+1/0 85 19 11.6 1.52 53.51 6 3.37 1 3.37 10.11
Cerapus 2X4/0+2/0 107.2 19 13 1.52 67.44 6 3.78 1 3.78 11.34
Cowry 2X336.4+4/0 170.4 19 16.59 2.03 107.22 6 4.77 1 4.77 14.31
QUADRUPLEX
Chola 3X6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04
Hackney 3X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36
Pallomino 3X2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01
Costena 3X1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11
Grullo 3X2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34
Suffolk 3X3/0+3/0 85 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75
Appaloosa 3X4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31
Gelding 3X336.4+4/0 170.4 19 16.56 2.03 107.22 6 4.77 1 4.77 14.31
