Tiene una amplia gama de aplicaciones y es adecuado para líneas de transmisión de varios niveles de voltaje, transmisión de energía aérea de gran alcance, áreas con baja niebla salina y también se puede colocar en ríos, cañones y lugares con características geográficas especiales. Alimentadores aéreos y barras colectoras de subestaciones.
GB/T 1179,ASTM B 232,DIN 48204,BS 215-2,BS-EN 50182 ,IEC 61089

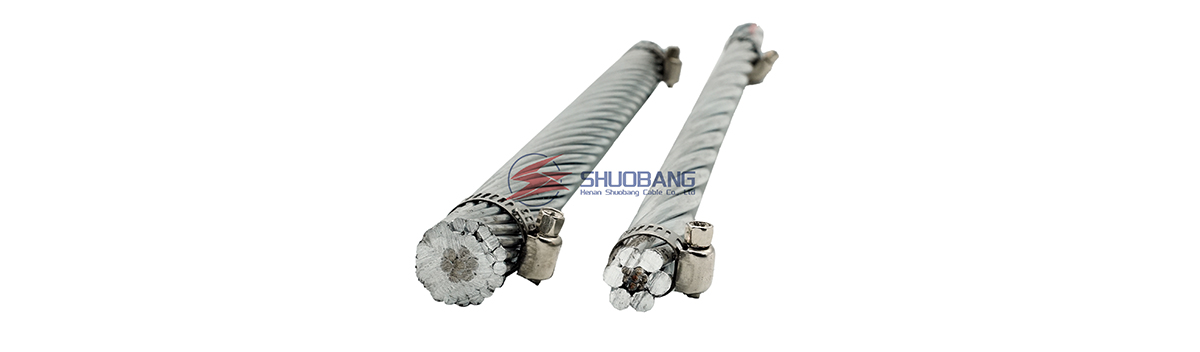

El cable trenzado de aluminio con núcleo de acero tiene las características de una estructura simple, fácil instalación y mantenimiento, bajo costo de línea, gran capacidad de transmisión y es propicio para tenderlo a través de ríos y valles y otras condiciones geográficas especiales. Tiene buena conductividad, suficiente resistencia mecánica, alta resistencia a la tracción y puede expandir la distancia de la torre.

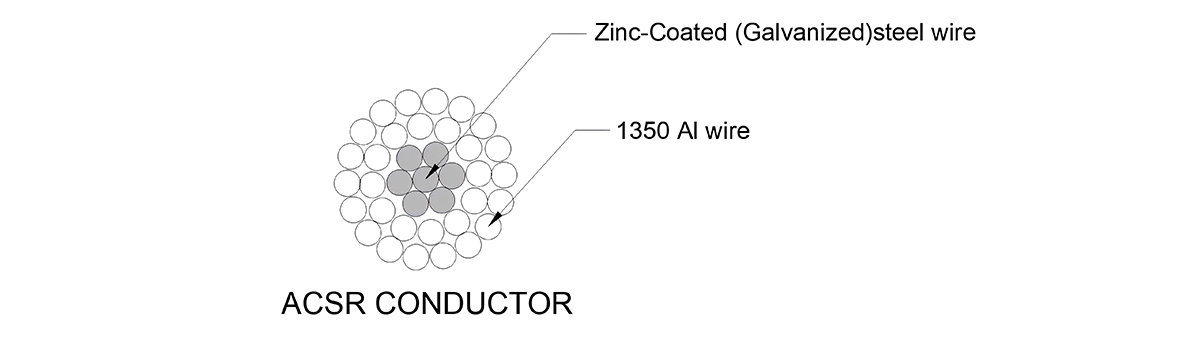

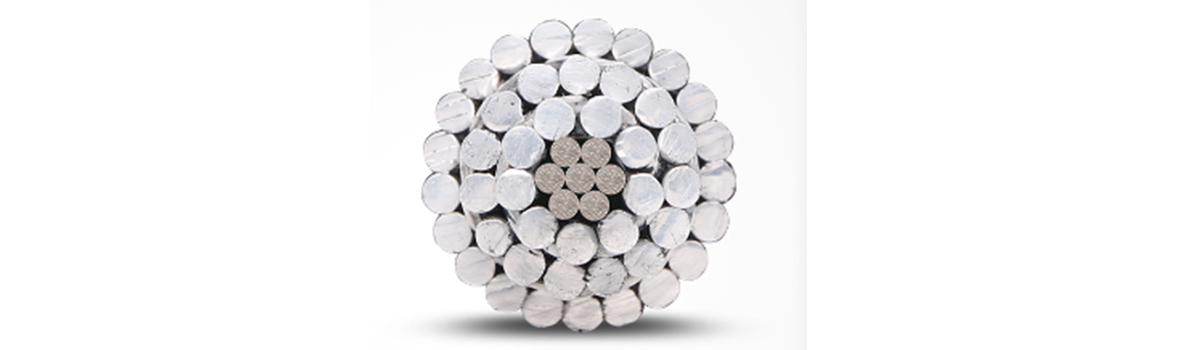

Un núcleo central de acero sólido o trenzado concéntricamente está rodeado por una o más capas de alambre de aluminio trenzado concéntricamente. Los alambres están recubiertos de zinc para protegerlos de la corrosión. El alambre o los alambres que forman el núcleo están hechos de acero galvanizado y la capa o capas externas están hechas de aluminio. El núcleo de acero galvanizado generalmente está compuesto por 1, 7 o 19 alambres. Los alambres de acero y aluminio pueden tener el mismo diámetro o diámetros diferentes.
Características técnicas del ACSR 1179-83 | ||||||||||||||||
Área nominal Aluminio/Acero mm2 | N.º de trenzado/N.º de diámetro/mm | Área calculada mm2 | Diámetro total mm | Resistencia de CC Ω/km | Carga de rotura calculada N | Masa lineal | Capacidad de carga continua (A) | Peso | ||||||||
Aluminio | Acero | Total. | Aluminio | Acero | ||||||||||||
Aluminum | Steel | Aluminum | Steel | Total | kg/km | kg/km | kg/km | 70 ℃ | 80 ℃ | 90 ℃ | kg/km | kg/km | ||||
10/2 | 6/1.50 | 1/1.50 | 10.60 | 1.77 | 12.37 | 4.50 | 2.70600 | 4120 | 28.9 | 13.8 | 42.9 | 66 | 78 | 87 | 28.6 | 13.8 |
16/3 | 6/1.85 | 1/1.85 | 16.13 | 2.69 | 18.82 | 5.55 | 1.77900 | 6130 | 44.0 | 21.0 | 65.2 | 85 | 100 | 113 | 43.6 | 20.9 |
25/4 | 6/2.32 | 1/2.32 | 25.36 | 4.23 | 29.59 | 6.96 | 1.13100 | 9290 | 69.2 | 33.0 | 102.6 | 111 | 131 | 149 | 68.5 | 32.9 |
35/6 | 6/2.72 | 1/2.72 | 34.86 | 5.81 | 40.67 | 8.16 | 0.82300 | 12630 | 95.2 | 45.3 | 141.0 | 134 | 158 | 180 | 94.1 | 45.2 |
50/8 | 6/3.20 | 1/3. 20 | 48.25 | 8.04 | 56.29 | 9.60 | 0.59460 | 16870 | 131.7 | 62.7 | 195.1 | 161 | 191 | 218 | 130.3 | 62.6 |
50/30 | 12/2.32 | 7/2.32 | 50.73 | 29.59 | 80.32 | 11.60 | 0.56920 | 42620 | 138.5 | 233.1 | 372.0 | 166 | 195 | 218 | 137.0 | 230.2 |
70/10 | 6/3.80 | 1/3.80 | 68.05 | 11.34 | 79.39 | 11.40 | 0.42170 | 23390 | 185.8 | 88.5 | 275.2 | 194 | 232 | 266 | 183.7 | 88.2 |
70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.40 | 13.60 | 0.41410 | 58300 | 190.4 | 320.4 | 511.3 | 196 | 230 | 257 | 188.3 | 316.4 |
95/15 | 26/2.15 | 7/1.67 | 94.39 | 15.33 | 109.72 | 13.61 | 0.30580 | 35000 | 260.2 | 120.8 | 380.8 | 252 | 306 | 351 | 254.9 | 119.3 |
95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.82 | 113.96 | 13.87 | 0.30190 | 37200 | 259.7 | 148.2 | 408.9 | 253 | 277 | 319 | 256.9 | 146.4 |
95/55 | 12/3.20 | 7/3.20 | 96.51 | 56.30 | 152.81 | 16.00 | 0.29920 | 78110 | 266.1 | 443.5 | 707.7 | 250 | 270 | 301 | 260.6 | 438.0 |
120/7 | 18/2.90 | 1/2.90 | 118.89 | 6.61 | 125.50 | 14.50 | 0.24220 | 27570 | 327.8 | 51.5 | 379.0 | 287 | 350 | 401 | 321.0 | 51.4 |
120/20 | 26/2.38 | 7/1.85 | 115.67 | 18.82 | 134.49 | 15.07 | 0.24960 | 41000 | 318.9 | 148.2 | 466.8 | 285 | 348 | 399 | 312.3 | 146.4 |
120/25 | 7/4.72 | 7/2.10 | 122.48 | 24.25 | 149.73 | 15.74 | 0.23450 | 47880 | 334.4 | 191.0 | 526.6 | 265 | 315 | 385 | 330.7 | 188.7 |
120/70 | 12/3.60 | 7/3.60 | 122.15 | 71.25 | 193.40 | 18.00 | 0.23640 | 98370 | 333.5 | 561.3 | 895.6 | 258 | 301 | 335 | 329.8 | 554.3 |
150/8 | 18/3.20 | 1/3.20 | 144.76 | 8.04 | 152.80 | 16.00 | 0.19890 | 32860 | 399.1 | 62.7 | 461.4 | 323 | 395 | 454 | 390.9 | 62.6 |
150/20 | 24/2.78 | 7/1.85 | 145.68 | 18.82 | 164.50 | 16.67 | 0.19800 | 46630 | 401.6 | 148.2 | 549.4 | 326 | 400 | 461 | 393.3 | 146.4 |
150/25 | 26/2.70 | 7/2.10 | 148.86 | 24.25 | 173.11 | 17.10 | 0.19390 | 54110 | 410.4 | 191.0 | 601.0 | 331 | 407 | 469 | 401.9 | 188.7 |
150/35 | 30/2.50 | 7/2.50 | 147.26 | 34.36 | 181.62 | 17.50 | 0.19620 | 65020 | 406.0 | 270.7 | 676.2 | 331 | 407 | 469 | 397.6 | 267.3 |
185/10 | 18/3.60 | 1/3.60 | 183.22 | 10.18 | 193.40 | 18.00 | 0.15720 | 40880 | 505.1 | 80.2 | 584.0 | 372 | 458 | 528 | 494.7 | 79.2 |
185/25 | 24/3.15 | 7/2.10 | 187.04 | 24.25 | 211.29 | 18.90 | 0.15420 | 59420 | 515.7 | 191.0 | 706.1 | 379 | 468 | 540 | 505.0 | 188.7 |
185/30 | 26/2.98 | 7/2.32 | 181.34 | 29.59 | 210.93 | 18.88 | 0.15900 | 64320 | 500.0 | 233.1 | 732.6 | 373 | 480 | 531 | 489.6 | 230.2 |
185/45 | 30/2.80 | 7/2.80 | 184.73 | 43.10 | 227.83 | 19.60 | 0.15640 | 80190 | 509.3 | 339.6 | 848.2 | 379 | 489 | 541 | 498.8 | 335.3 |
210/10 | 18/3.80 | 1/3.80 | 204.14 | 11.34 | 215.48 | 19.00 | 0.14110 | 45140 | 562.8 | 88.5 | 650.7 | 397 | 490 | 565 | 551.2 | 88.2 |
210/25 | 24/3.33 | 7/2.22 | 209.02 | 27.10 | 236.12 | 19.98 | 0.13800 | 65990 | 576.3 | 213.5 | 789.1 | 405 | 501 | 579 | 564.4 | 210.8 |
210/35 | 26/3.22 | 7/2.50 | 211.73 | 34.36 | 246.09 | 20.38 | 0.13630 | 74250 | 583.7 | 270.7 | 853.9 | 409 | 507 | 586 | 571.7 | 267.3 |
210/50 | 30/2 98 | 7/2.98 | 209.24 | 48.82 | 258.06 | 20.86 | 0.13810 | 90830 | 576.9 | 384.6 | 960.8 | 409 | 507 | 586 | 564.9 | 379.8 |
240/30 | 24/3.60 | 7/2.40 | 244.29 | 31.67 | 275.96 | 21.60 | 0.11810 | 75620 | 673.5 | 249.5 | 922.2 | 445 | 552 | 639 | 659.6 | 246.4 |
240/40 | 26/3.42 | 7/2.66 | 238.85 | 38.90 | 277.75 | 21.66 | 0.12090 | 83370 | 658.5 | 306.5 | 964.3 | 440 | 546 | 633 | 644.9 | 302.6 |
240/55 | 30/3.20 | 7/3.20 | 241.27 | 56.30 | 297.57 | 22.40 | 0.11980 | 102100 | 665.2 | 443.5 | 1108.0 | 445 | 554 | 641 | 651.4 | 438.0 |
300/15 | 42/3.00 | 7/1.67 | 296.88 | 15.33 | 312.21 | 23.01 | 0.09721 | 68060 | 818.5 | 120.8 | 939.8 | 495 | 615 | 711 | 801.6 | 119.3 |
300/20 | 45/2.93 | 7/1.95 | 303.42 | 20.91 | 324.33 | 23.43 | 0.09520 | 75650 | 836.5 | 164.7 | 1002.0 | 502 | 624 | 722 | 819.2 | 162.7 |
300/25 | 48/2.85 | 7/2.22 | 306.21 | 27.10 | 333.31 | 23.76 | 0.09433 | 83410 | 844.2 | 213.5 | 1058.0 | 505 | 628 | 726 | 826.8 | 210.8 |
300/40 | 24/3.99 | 7/2.66 | 300.09 | 38.90 | 338.99 | 23.94 | 0.09614 | 92220 | 827.4 | 306.5 | 1133.0 | 503 | 628 | 728 | 810.2 | 302.6 |
300/50 | 26/3.83 | 7/2.98 | 299.54 | 48.82 | 348.36 | 24.26 | 0.09636 | 103400 | 825.9 | 384.6 | 1210.0 | 504 | 629 | 730 | 808.8 | 379.8 |
300/70 | 30/3.60 | 7/3.60 | 305.36 | 71.25 | 376.61 | 25.20 | 0.09463 | 128000 | 841.9 | 561.3 | 1402.0 | 512 | 641 | 745 | 824.5 | 554.3 |
400/20 | 42/3.51 | 7/1.95 | 406.40 | 20.91 | 427.31 | 26.91 | 0.07104 | 88850 | 1120.5 | 164.7 | 1286.0 | 595 | 746 | 884 | 1097.3 | 162.7 |
400/25 | 45/3.33 | 7/2.22 | 391.91 | 27.10 | 419.01 | 26.64 | 0.07370 | 95940 | 1080.5 | 213.5 | 1295.0 | 584 | 730 | 845 | 1058.2 | 210.8 |
400/35 | 48/3.22 | 7/2.50 | 390.88 | 34.36 | 425.24 | 26.82 | 0.07389 | 103900 | 1077.7 | 270.7 | 1349.0 | 583 | 729 | 844 | 1055.4 | 267.3 |
400/50 | 54/3.07 | 7/3.07 | 399.73 | 51.82 | 451.55 | 27.63 | 0.07232 | 123400 | 1102.1 | 408.2 | 1511.0 | 592 | 741 | 857 | 1079.3 | 403.2 |
400/65 | 26/4.42 | 7/3.44 | 398.94 | 65.06 | 464.00 | 28.00 | 0.07236 | 135200 | 1099.9 | 512.5 | 1611.0 | 597 | 752 | 876 | 1077.1 | 506.2 |
400/95 | 30/4.16 | 19/2.50 | 407.75 | 93.27 | 501.02 | 29.14 | 0.07087 | 171300 | 1124.2 | 742.0 | 1860.0 | 608 | 767 | 895 | 1100.9 | 725.6 |
500/35 | 45/3.75 | 7/2.50 | 497.01 | 34.36 | 531.37 | 30.00 | 0.05812 | 119500 | 1370.3 | 270.7 | 1642.0 | 670 | 842 | 977 | 1341.9 | 267.3 |
500/45 | 48/3.60 | 7/2.80 | 488.58 | 43.10 | 531.68 | 30.00 | 0.05912 | 128100 | 1347.0 | 339.6 | 1688.0 | 664 | 834 | 967 | 1319.2 | 335.3 |
500/65 | 54/3.44 | 7/3.44 | 501.88 | 65.06 | 566.94 | 30.96 | 0.05760 | 154000 | 1383.7 | 512.5 | 1897.0 | 667 | 850 | 983 | 1355.1 | 506.2 |
630/45 | 45/4.2 | 7/2.80 | 623.45 | 43.10 | 666.55 | 33.60 | 0.04633 | 148700 | 1718.9 | 339.6 | 2060.0 | 763 | 964 | 1120 | 1683.3 | 335.3 |
630/55 | 48/4.12 | 7/3.20 | 639.92 | 56.30 | 696.22 | 34.32 | 0.04514 | 164400 | 1764.3 | 443.5 | 2209.0 | 775 | 979 | 1136 | 1727.8 | 438.0 |
630/80 | 54/3.87 | 19/2.32 | 635.19 | 80.32 | 715.51 | 34.82 | 0.04551 | 192900 | 1751.3 | 639.0 | 2388.0 | 774 | 977 | 1131 | 1715.0 | 624.9 |
720/50 | 45/4.53 | 36.24 | 0.0249 | 170600 | 1999.6 | 0.0 | 2397 | 830 | 1040 | 1220 | 0.0 | 0.0 | ||||
800/55 | 45/4.80 | 7/3.20 | 814.30 | 56.30 | 870.60 | 38.40 | 0.03547 | 191500 | 2245.1 | 443.5 | 2690.0 | 887 | 1126 | 1310 | 2198.6 | 438.0 |
800/70 | 48/4.63 | 7/3.60 | 808.15 | 71.25 | 879.40 | 38.58 | 0.03574 | 207000 | 2228.1 | 561.3 | 2791.0 | 884 | 1121 | 1301 | 2182.0 | 554.3 |
800/100 | 54/4.33 | 19/2.60 | 795.17 | 100.88 | 896.05 | 38.98 | 0.03635 | 241100 | 2192.3 | 802.6 | 2991.0 | 878 | 1113 | 1288 | 2147.0 | 784.8 |
1400/120 | 84/4.60 | 50.8 | 0.02072 | 355000 | 3848.9 | 0.0 | 4781 | 1270 | 1580 | 1805 | 0.0 | 0.0 | ||||
1400/135 | 88/4.50 | 51 | 0.02067 | 375300 | 3683.3 | 0.0 | 4927 | 1272 | 1583 | 1808 | 0.0 | 0.0 |
Technical characteristics / U.S.A Sizes - ASTM B232 | |||||||||||||
Code name | Area | Stranding and diameter | Approximate overall diameter | Linear mass | Rated tensile strength | Maximum D.C. Resistance at 20℃ Ω/km | Current Rating |
||||||
Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | ||||||
AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | A | ||
wren | 8 | 8.34 | 1.39 | 9.73 | 6/1.33 | 1/1.33 | 3.99 | 22.8 | 10.8 | 33.6 | 308 | 3.43035 | 63 |
Turkey | 6 | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 36.3 | 17.3 | 53.6 | 524 | 2.15860 | 78 |
Swan | 4 | 21.16 | 3.55 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 57.8 | 27.5 | 85.4 | 832 | 1.35570 | 105 |
Swante | 4 | 21.16 | 5.35 | 26.50 | 7/1.96 | 1/2.61 | 6.53 | 57.7 | 41.7 | 99.4 | 1053 | 1.35570 | 104 |
Swallow | 3 | 26.69 | 4.45 | 31.14 | 6/2.38 | 1/2.38 | 7.14 | 72.9 | 34.7 | 107.6 | 1021 | 1.07124 | 129 |
Sparrow | 2 | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 91.7 | 43.7 | 135.4 | 1270 | 0.85350 | 139 |
Sparate | 2 | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 91.6 | 66.7 | 158.3 | 1611 | 0.85350 | 138 |
Robin | 1 | 42.39 | 7.10 | 49.49 | 6/3.00 | 1/3.00 | 9.00 | 115.8 | 55.1 | 170.9 | 1585 | 0.67670 | 160 |
Raven | 0 | 53.48 | 8.90 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 146.1 | 69.6 | 215.7 | 1932 | 0.53640 | 183 |
Quail | 2/0 | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 183.8 | 87.5 | 271.4 | 2362 | 0.42550 | 210 |
Pigeon | 3/0 | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 232.4 | 110.7 | 343.0 | 2941 | 0.33730 | 241 |
Penguin | 4/0 | 107.23 | 17.87 | 125.10 | 6/4.77 | 1/4.77 | 14.31 | 292.7 | 139.4 | 432.1 | 3706 | 0.26750 | 276 |
Waxwing | 266.800 | 135.16 | 7.48 | 142.64 | 18/3.09 | 1/3.09 | 15.45 | 372.2 | 58.5 | 430.7 | 3027 | 0.21330 | 319 |
Partridge | 266.800 | 135.16 | 22.00 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 371.9 | 173.2 | 545.1 | 5029 | 0.21430 | 323 |
Ostrich | 300.000 | 152.00 | 24.71 | 176.71 | 26/2.73 | 7/2.12 | 17.28 | 419.6 | 194.7 | 614.3 | 5652 | 0.19060 | 346 |
Merlin | 336.400 | 170.45 | 9.48 | 179.93 | 18/3.47 | 1/3.47 | 17.35 | 469.3 | 73.8 | 543.1 | 3823 | 0.16910 | 386 |
Linnet | 336.400 | 170.45 | 27.81 | 198.26 | 26/2.89 | 7/2.25 | 18.31 | 470.2 | 219.3 | 689.5 | 6271 | 0.16990 | 371 |
Oriole | 336.400 | 170.45 | 39.81 | 210.26 | 30/2.69 | 7/2.69 | 18.83 | 470.1 | 313.4 | 783.5 | 7745 | 0.17040 | 372 |
Chickadee | 397.500 | 201.42 | 11. 16 | 212.58 | 18/3.77 | 1/3.77 | 18.85 | 554.0 | 87.1 | 641.0 | 4399 | 0.14310 | 403 |
Brant | 397.500 | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 555.7 | 205.8 | 761.5 | 6469 | 0.14380 | 405 |
Ibis | 397.500 | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 555.1 | 257.9 | 813.0 | 7211 | 0.14380 | 403 |
Lark | 397.500 | 201.42 | 46.97 | 248.39 | 30/2.92 | 7/2.92 | 20.44 | 553.9 | 369.3 | 923.2 | 8869 | 0.14420 | 410 |
Pelican | 477.000 | 241.68 | 13.42 | 255.10 | 18/4.14 | 1/4.14 | 20.70 | 668.1 | 105.0 | 773.1 | 5216 | 0.11930 | 449 |
Flicker | 477.000 | 241.68 | 31.29 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 666.1 | 247.4 | 913.5 | 7666 | 0.11990 | 454 |
Hawk | 477.000 | 241.68 | 39.42 | 281.10 | 26/3.44 | 7/2.67 | 21.79 | 666.2 | 308.8 | 975.0 | 8665 | 0.11990 | 455 |
Hen | 477.000 | 241.68 | 56.39 | 298.07 | 30/3.20 | 7/3.20 | 22.40 | 665.2 | 443.5 | 1108.7 | 10534 | 0.12010 | 457 |
Osprey | 556.500 | 282.00 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 778.8 | 122.4 | 901.2 | 6088 | 0.10220 | 492 |
Parakeet | 556.500 | 282.00 | 36.58 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 778.3 | 288.3 | 1066.6 | 8822 | 0.10270 | 492 |
Dove | 556.500 | 282.00 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 779.1 | 361.7 | 1140.8 | 10103 | 0.10270 | 499 |
Eagle | 556.500 | 282.00 | 65.81 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 777.7 | 518.5 | 1296.2 | 13392 | 0.10300 | 500 |
Peacock | 605.000 | 306.58 | 39.74 | 346.32 | 24/4.03 | 7/2.69 | 24.20 | 844.0 | 313.4 | 1157.4 | 9588 | 0.09450 | 522 |
Squab | 605.000 | 306.58 | 49.94 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 843.2 | 392.4 | 1235.6 | 10841 | 0.09450 | 523 |
Wood duck | 605.000 | 306.58 | 71.55 | 378.13 | 30/3.61 | 7/3.61 | 25.25 | 846.6 | 564.4 | 1411.0 | 12884 | 0.09470 | 523 |
Teal | 605.000 | 306.58 | 69.87 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 846.6 | 553.9 | 1400.5 | 13359 | 0.09470 | 527 |
Kingbird | 636.000 | 322.26 | 17.90 | 340.16 | 18/4.78 | 1/4.78 | 23.88 | 890.6 | 140.0 | 1030.5 | 6956 | 0.08945 | 530 |
Rook | 636.000 | 322.26 | 41.81 | 364.07 | 24/4.14 | 7/2.76 | 24.84 | 890.7 | 329.9 | 1220.7 | 10083 | 0.08989 | 537 |
Grosbeak | 636.000 | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 | 887.3 | 413.5 | 1300.9 | 11180 | 0.08989 | 538 |
Scoter | 636.000 | 322.26 | 75.22 | 394.48 | 30/3.70 | 7/3.70 | 25.88 | 889.3 | 592.9 | 1482.3 | 13544 | 0.09011 | 541 |
Egret | 636.000 | 322.26 | 73.55 | 395.81 | 30/3.70 | 19/2.22 | 25.90 | 889.3 | 585.1 | 1474.4 | 14055 | 0.09011 | 542 |
Swift | 636.000 | 322.26 | 8.96 | 331.22 | 36/3.38 | 1/3.38 | 23.62 | 890.6 | 70.0 | 960.6 | 6052 | 0.08945 | 545 |
Flamingo | 666.600 | 337.74 | 43.81 | 381.55 | 24/4.23 | 7/2.82 | 25.40 | 929.9 | 344.4 | 1274.3 | 10566 | 0.08577 | 552 |
Gannet | 666.600 | 337.74 | 55.03 | 392.77 | 26/4.07 | 7/3.16 | 25.76 | 932.6 | 432.5 | 1365.1 | 11733 | 0.08577 | 618 |
Stilt | 715.500 | 362.58 | 46.97 | 409.55 | 24/4.39 | 7/2.92 | 26.31 | 1001.6 | 369.3 | 1370.9 | 11335 | 0.07989 | 577 |
Starling | 715.500 | 362.58 | 59.03 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 997.9 | 466.0 | 1463.8 | 12591 | 0.07989 | 578 |
Redwing | 715.500 | 362.58 | 82.58 | 445.16 | 30/3.92 | 19/2.35 | 27.43 | 998.2 | 655.7 | 1653.9 | 15394 | 0.08009 | 581 |
Tern | 795.000 | 402.84 | 27.87 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1113.2 | 219.3 | 1332.5 | 9737 | 0.07191 | 610 |
Condor | 795.000 | 402.84 | 52.19 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1109.3 | 410.9 | 1520.1 | 12445 | 0.07911 | 614 |
Cuckoo | 795.000 | 402.84 | 52.19 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1109.3 | 410.9 | 1520.1 | 12394 | 0.07191 | 614 |
Drake | 795.000 | 402.84 | 65.51 | 468.45 | 26/4.44 | 7/3.45 | 28.11 | 1109.9 | 515.5 | 1625.4 | 13992 | 0.07191 | 614 |
Coot | 795.000 | 402.84 | 11.16 | 414.00 | 36/3.77 | 1/3.77 | 26.41 | 1108.0 | 87.1 | 1195.0 | 7485 | 0.07156 | 614 |
Mallard | 795.000 | 402.84 | 91.87 | 484.71 | 30/4.14 | 19/2.48 | 28.96 | 1113.4 | 730.2 | 1843.6 | 17118 | 0.07208 | 618 |
Ruddy | 900.000 | 456.06 | 31.54 | 487.60 | 45/3.59 | 7/2.40 | 28.73 | 1255.9 | 249.5 | 1505.3 | 10931 | 0.06351 | 656 |
Canary | 900.000 | 456.06 | 59.10 | 515.16 | 54/3.28 | 7/3.28 | 29.52 | 1258.0 | 466.0 | 1724.0 | 14095 | 0.06351 | 660 |
Rail | 954.000 | 483.42 | 33.42 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1334.0 | 264.2 | 1598.2 | 11585 | 0.05992 | 679 |
Catbird | 954.000 | 483.42 | 13.42 | 496. 84 | 36/4.14 | 1/4.14 | 28.95 | 1336.1 | 105.0 | 1441.1 | 8766 | 0.05962 | 679 |
Cardinal | 954.000 | 483.42 | 62.65 | 546. 07 | 54/3.38 | 7/3.38 | 30.42 | 1335.9 | 494.8 | 1830.7 | 14936 | 0.05992 | 681 |
Ortolan | 1033.500 | 523.68 | 36.19 | 559. 87 | 45/3.85 | 7/2.57 | 30.81 | 1444.3 | 286.1 | 1730.4 | 12310 | 0.05331 | 712 |
Tanager | 1033.500 | 523.68 | 14.51 | 538.19 | 36/4.30 | 1/4.30 | 30.12 | 1441.4 | 113.3 | 1554.6 | 9493 | 0.05504 | 705 |
Curlew | 1033.500 | 523.68 | 67.87 | 591.55 | 54/3.52 | 7/3.52 | 31.68 | 1448.8 | 536.6 | 1985.5 | 16180 | 0.05531 | 715 |
Bluejay | 1113.000 | 563.93 | 39.03 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1559.1 | 306.5 | 1865.5 | 13263 | 0.05136 | 743 |
Finch. | 1113.000 | 563.93 | 71.55 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 1557.8 | 569.4 | 2127.2 | 17441 | 0.05161 | 746 |
Bunting | 1192.500 | 604.26 | 41.55 | 645.81 | 45/4.14 | 7/2.76 | 33.12 | 1682.3 | 329.9 | 2012.2 | 14179 | 0.04793 | 772 |
Grackle | 1192.500 | 604.26 | 76.58 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 1661.9 | 611.8 | 2273.7 | 18678 | 0.04817 | 773 |
Bittern | 1272.000 | 644.51 | 44.52 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 1776.7 | 351.8 | 2128.5 | 15148 | 0.04494 | 802 |
Pheasant | 1272.000 | 644.51 | 81.63 | 726.19 | 54/3.90 | 19/2.34 | 35.10 | 1778.5 | 650.1 | 2428.6 | 19400 | 0.04516 | 807 |
Skylark | 1272.000 | 644.51 | 17.87 | 662.38 | 36/4.78 | 1/4.78 | 33.42 | 1781.1 | 140.0 | 1921.1 | 11585 | 0.04472 | 807 |
Dipper | 1351.500 | 684.84 | 47.10 | 731.94 | 45/4.40 | 7/2.92 | 35.16 | 1886.5 | 369.3 | 2255.8 | 16070 | 0.04230 | 831 |
Martin | 1351.500 | 684.84 | 88.71 | 771.55 | 54/4.02 | 19/2.41 | 36.17 | 1889.7 | 689.6 | 2579.2 | 20605 | 0.04250 | 835 |
Bobolink | 1431.000 | 725.10 | 50.32 | 775.42 | 45/4.53 | 7/3.02 | 36.24 | 1999.6 | 395.0 | 2394.6 | 17071 | 0.03994 | 859 |
Plover | 1431.000 | 725.10 | 91.87 | 816.97 | 54/4.14 | 19/2.48 | 37.24 | 2004.2 | 730.2 | 2734.4 | 21824 | 0.04013 | 862 |
Nuthatch | 1510.500 | 765.35 | 52.90 | 818.25 | 45/4.65 | 7/3.10 | 37.20 | 2107.0 | 416.2 | 2523.2 | 17789 | 0.03784 | 886 |
Parrot | 1510.500 | 765.35 | 96.84 | 862.19 | 54/4.25 | 19/2.55 | 38.25 | 2112.1 | 772.0 | 2884.1 | 23020 | 0.03802 | 890 |
Lapwing | 1590.000 | 805.68 | 55.48 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2217.1 | 438.0 | 2655.1 | 18702 | 0.03595 | 911 |
Falcon | 1590.000 | 805.68 | 102.10 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 2222.8 | 815.0 | 3037.8 | 24255 | 0.03613 | 917 |
Chukar | 1780.000 | 902.70 | 73.51 | 902.72 | 84/3.70 | 19/2.22 | 40.70 | 2490.1 | 585.1 | 3075.2 | 22685 | 0.03245 | 975 |
BlueBird | 2156.000 | 1092.00 | 88.80 | 1092.28 | 84/4.07 | 19/2.44 | 44.76 | 3013.0 | 706.8 | 3719.9 | 26830 | 0.02681 | 1180 |
Kiwi | 2167.000 | 1100.00 | 47.50 | 1099.20 | 72/4.41 | 7/2.94 | 44.07 | 3032.1 | 374.4 | 3406.5 | 22160 | 0.02684 | 1188 |
Thrasher | 2312.000 | 1170.80 | 65.15 | 1170.80 | 76/4.43 | 19/2.09 | 45.90 | 3229.7 | 518.6 | 3748.3 | 25300 | 0.02478 | 1260 |
Grouse | 80.000 | 40.52 | 14.13 | 54.65 | 8/2.54 | 1/4.24 | 9.32 | 110.7 | 111.2 | 221.9 | 2360 | 0.71150 | 155 |
Petrel | 101.800 | 51.61 | 30.06 | 81.67 | 12/2.34 | 7/2.34 | 11.71 | 140.9 | 237.2 | 378.0 | 4715 | 0.56130 | 187 |
Minorca | 110.800 | 56.13 | 32.77 | 88.90 | 12/2.44 | 7/2.44 | 12.22 | 153.2 | 257.9 | 411.0 | 5125 | 0.51610 | 197 |
Leghorn | 134.600 | 68.19 | 39.81 | 108.00 | 12/2.69 | 7/2.69 | 13.46 | 186.2 | 313.4 | 499.6 | 6170 | 0.42480 | 221 |
Guinea | 159.000 | 80.58 | 46.97 | 127.55 | 12/2.92 | 7/2.92 | 14.63 | 219.4 | 369.3 | 588.7 | 7255 | 0.35950 | 244 |
Dotterel | 176.900 | 89.48 | 52.19 | 141.67 | 12/3.08 | 7/3.08 | 15.42 | 244.1 | 410.9 | 655.0 | 7850 | 0.32370 | 260 |
Dorking | 190.800 | 96.71 | 56.39 | 153.10 | 12/3.20 | 7/3.20 | 16.03 | 263.5 | 443.5 | 707.0 | 8480 | 0.29950 | 272 |
Brahma | 203.200 | 102.97 | 91.87 | 194.84 | 16/2.86 | 19/2.48 | 18.14 | 280.6 | 730.2 | 1010.8 | 12880 | 0.28130 | 288 |
Cochin | 211.300 | 107.10 | 62.45 | 169.55 | 12/3.37 | 7/3.37 | 16.84 | 292.2 | 491.9 | 784.1 | 9390 | 0.27050 | 287 |
ACSR Technical characteristics / BS215 | |||||||||||||||||
Code name | Nominal aluminum area mm2 | Stranding structure | Sectional area of aluminum | Total sectional area | Overall diameter | Linear mass | Calculated breaking load | Calculate D.C resistance at 20℃ | Final modulus of elasticity | Coefficient of linear expansion | weight | weight | |||||
Aluminum | Steel | Total. | Aluminum | Steel | |||||||||||||
Al. No. | Al. Dia. | St. No. | St. Dia | mm2 | mm2 | mm | kg/km | kg/km | kg/km | daN | Ω/km | hBar | /℃ | kg/km | kg/km | ||
Mole | 10 | 6 | 1.50 | 1 | 1.50 | 10.62 | 12.39 | 4.50 | 28.9 | 13.8 | 42.7 | 414 | 2.7060 | 7900 | 19.1Χ10-6 | 28.7 | 14.0 |
Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 20.94 | 24.43 | 6.33 | 57.3 | 27.3 | 84.6 | 788 | 1.3680 | 7900 | 19. lΧ10-6 | 56.6 | 28.0 |
Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 26.24 | 30.62 | 7.08 | 71.7 | 34.1 | 105.8 | 961 | 1.0930 | 7900 | 19.1Χ10-6 | 70.9 | 34.9 |
Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 31.61 | 36.88 | 7.77 | 86.3 | 41.1 | 127.4 | 1146 | 0.9077 | 7900 | 19.1Χ10-6 | 85.4 | 42.0 |
Fox | 35 | 6 | 2.79 | 1 | 2.79 | 36.66 | 42.77 | 8.37 | 100.1 | 47.7 | 147.8 | 1320 | 0.7822 | 7900 | 19.1Χ10-6 | 99.1 | 48.8 |
Ferret | 40 | 6 | 3.00 | 1 | 3.00 | 42.41 | 49.48 | 9.00 | 115.8 | 55.1 | 170.9 | 1520 | 0.6766 | 7900 | 19.1Χ10-6 | 114.6 | 56.3 |
Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 52.88 | 61.70 | 10.05 | 144.4 | 68.8 | 213.1 | 1835 | 0.5426 | 7900 | 19.1Χ10-6 | 142.9 | 70.2 |
Mink | 60 | 6 | 3.66 | 1 | 3.66 | 63.18 | 73.71 | 10.98 | 172.3 | 82.1 | 254.4 | 2180 | 0.4545 | 7900 | 19.1Χ10-6 | 170.7 | 83.7 |
Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 63.27 | 100.30 | 12.95 | 172.6 | 287.7 | 460.3 | 5300 | 0.4567 | 7900 | 15.3Χ10-6 | 171.0 | 289.3 |
Beaver | 70 | 6 | 3.99 | 1 | 3.99 | 74.82 | 87.29 | 11.97 | 204.8 | 97.5 | 302.3 | 2570 | 0.3825 | 7900 | 19.1Χ10-6 | 202.2 | 100.2 |
Horse | 70 | 12 | 2.79 | 7 | 2.79 | 73.37 | 116.20 | 13.95 | 200.3 | 333.8 | 534.1 | 6120 | 0.3936 | 10500 | 19.1Χ10-6 | 198.2 | 335.8 |
Racoon | 75 | 6 | 4.10 | 1 | 4.10 | 79.20 | 92.40 | 12.30 | 216.3 | 103.0 | 319.2 | 2720 | 0.3622 | 7900 | 15.3Χ10-6 | 214.0 | 105.2 |
Otter | 80 | 6 | 4.22 | 1 | 4.22 | 83.88 | 97.86 | 12.66 | 229.1 | 109.1 | 338.2 | 2880 | 0.3419 | 7900 | 19.1Χ10-6 | 226.6 | 111.6 |
Cat | 90 | 6 | 4.50 | 1 | 4.50 | 95.40 | 111.30 | 15.90 | 260.5 | 124.1 | 384.6 | 3270 | 0.3007 | 7900 | 19. lΧ10-6 | 257.8 | 126.8 |
Hare | 100 | 6 | 4.72 | 1 | 4.72 | 105.00 | 122.50 | 17.50 | 286.6 | 136.5 | 423.1 | 3600 | 0.2733 | 7900 | 19. 1×10-6 | 283.7 | 139.4 |
Dog | 100 | 6 | 4.72 | 7 | 1.57 | 105.00 | 118.50 | 14.15 | 286.6 | 105.7 | 392.3 | 3270 | 0.2733 | 7500 | 19.8Χ10-6 | 283.7 | 108.6 |
Hyena | 100 | 7 | 4.39 | 7 | 1.93 | 105.80 | 126.20 | 14.57 | 289.3 | 159.7 | 449.0 | 4090 | 0.2712 | 7500 | 19.8Χ10-6 | 285.9 | 163.1 |
Leopard | 125 | 8 | 5.28 | 7 | 1.75 | 131.30 | 148.10 | 15.81 | 478.2 | 131.3 | 609.5 | 4070 | 0.2184 | 7500 | 19.8Χ10-6 | 354.8 | 254.8 |
Coyote | 125 | 26 | 2.54 | 7 | 1.91 | 132.10 | 152.20 | 15.89 | 363.2 | 156.4 | 519.7 | 4640 | 0.2187 | 8500 | 17.0Χ10-6 | 356.9 | 162.7 |
Congar | 125 | 18 | 3.05 | 1 | 3.05 | 130.30 | 137.50 | 15.25 | 362.6 | 57.0 | 419.6 | 2980 | 0.2189 | 6600 | 21.2Χ10-6 | 352.1 | 67.5 |
Tiger | 125 | 30 | 2.36 | 7 | 2.36 | 131.10 | 161.70 | 16.52 | 361.8 | 238.8 | 600.7 | 5800 | 0.2202 | 8000 | 17.8Χ10-6 | 354.2 | 246.4 |
Dingo | 150 | 18 | 3.35 | 1 | 3.35 | 158.70 | 167.50 | 16.75 | 437.4 | 68.8 | 506.2 | 3570 | 0.1815 | 6600 | 21.2Χ10-6 | 428.8 | 77.4 |
Wolf | 150 | 30 | 2.59 | 7 | 2.59 | 158.10 | 194.90 | 18.13 | 435.8 | 287.7 | 723.4 | 6920 | 0.1828 | 8000 | 17.8Χ10-6 | 427.2 | 296.2 |
Caracal | 175 | 18 | 3.61 | 1 | 3.61 | 184.30 | 194.50 | 18.05 | 508.0 | 79.8 | 587.8 | 4110 | 0.1563 | 6600 | 21.2Χ10-6 | 498.0 | 89.8 |
Lynx | 175 | 30 | 2.79 | 7 | 2.79 | 183.40 | 226.20 | 19.53 | 505.7 | 333.8 | 839.5 | 7980 | 0.1576 | 8000 | 17.8Χ10-6 | 495.5 | 343.9 |
Jaguar | 200 | 18 | 3.86 | 1 | 3.86 | 210.60 | 222.30 | 19.30 | 580.7 | 91.3 | 672.0 | 4655 | 0.1367 | 6600 | 21.2Χ10-6 | 569.0 | 103.0 |
Panther | 200 | 30 | 3.00 | 7 | 3.00 | 212.10 | 261.50 | 21.00 | 584.7 | 385.9 | 970.6 | 9225 | 0.1363 | 8000 | 17.8Χ10-6 | 573.1 | 397.5 |
Lion | 225 | 30 | 3.18 | 7 | 3.18 | 238.50 | 294.20 | 22.26 | 656.9 | 433.6 | 1090.6 | 10060 | 0.1212 | 8000 | 17.8Χ10-6 | 644.4 | 446.1 |
Bear | 250 | 30 | 3.35 | 7 | 3.35 | 264.00 | 325.60 | 23.45 | 729.0 | 481.3 | 1210.3 | 11110 | 0.1093 | 8000 | 17.8Χ10-6 | 713.3 | 497.0 |
Goat | 300 | 30 | 3.71 | 7 | 3.71 | 324.30 | 400.00 | 25.97 | 894.1 | 590.2 | 1484.4 | 13570 | 0.0891 | 8000 | 17.8Χ10-6 | 876.3 | 608.1 |
Sheep | 350 | 30 | 3.99 | 7 | 3.99 | 374.10 | 461.40 | 27.93 | 1034.2 | 682.7 | 1716.9 | 15590 | 0.0770 | 8000 | 17.8Χ10-6 | 1010.8 | 706.1 |
Antilope | 350 | 54 | 2.97 | 7 | 2.97 | 373.10 | 421.50 | 26.73 | 1031.4 | 378.3 | 1409.7 | 11820 | 0.0773 | 6900 | 19.3Χ10-6 | 1008.1 | 401.6 |
Bison | 350 | 54 | 3.00 | 7 | 3.00 | 381.80 | 431.30 | 27.00 | 1052.4 | 385.9 | 1438.3 | 12090 | 0.0757 | 6900 | 19.3x10-6 | 1031.6 | 406.7 |
Deer | 400 | 30 | 4.27 | 7 | 4.27 | 429.30 | 529.50 | 28.89 | 1184.4 | 781.9 | 1966.3 | 17850 | 0.0674 | 8000 | 17.8Χ10-6 | 1160.0 | 806.4 |
Zebra | 400 | 54 | 3.18 | 7 | 3.18 | 428.90 | 484.50 | 28.62 | 1182.5 | 433.6 | 1616.1 | 13190 | 0.0674 | 6900 | 19.3Χ10-6 | 1158.9 | 457.2 |
ELK | 450 | 30 | 4.50 | 7 | 4.50 | 477.00 | 588.30 | 31.50 | 1315.5 | 868.4 | 2183.9 | 19820 | 0.0606 | 8000 | 17.8Χ10-6 | 1288.9 | 895.0 |
Camel | 450 | 54 | 3.35 | 7 | 3.35 | 475.20 | 536.80 | 30.15 | 1312.3 | 481.3 | 1793.5 | 14570 | 0.0607 | 6900 | 19.3Χ10-6 | 1284.0 | 509.5 |
Moose | 500 | 54 | 3.53 | 7 | 3.53 | 528.70 | 597.20 | 31.77 | 1457.1 | 534.4 | 1991.4 | 16110 | 0.0547 | 6900 | 19.3Χ10-6 | 1428.5 | 562.9 |
Finch | 500 | 54 | 3.65 | 19 | 2.29 | 564.70 | 642.90 | 33.35 | 1557.8 | 610.4 | 2168.2 | 18070 | 0.0512 | 6800 | 18.3Χ10-6 | 1525.8 | 642.4 |
ACSR Technical characteristics / DIN 48204 | |||||||||||||
Area | Standing and wire diameter | Overall diameter | Linear mass | Nominal breaking load | Maximum resistance at 20°C | weight | weight | ||||||
Nominal. | Actual | ||||||||||||
Al/Steel | Al | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | Aluminum | Steel | |||
mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | Ω/km | kg/km | kg/km | |
16/2.5 | 15.00 | 2.50 | 17.80 | 6/1.80 | 1/1.80 | 5.40 | 41.7 | 19.8 | 61.5 | 595 | 1.87800 | 40.5 | 19.5 |
25/4.0 | 23.80 | 4.00 | 27.80 | 6/2.25 | 1/2.25 | 6.80 | 65.1 | 31.0 | 96.1 | 920 | 1.20020 | 64.3 | 31.1 |
35/6.0 | 34.30 | 5.70 | 40.00 | 6/2.70 | 1/2.70 | 8.10 | 93.8 | 44.7 | 138.4 | 1265 | 0.83520 | 92.6 | 44.3 |
44/32.0 | 44.00 | 31.70 | 75.70 | 14/2.00 | 7/2.40 | 11.20 | 120.1 | 249.5 | 369.5 | 4500 | 0.65730 | 118.8 | 246.6 |
50/8.0 | 48.30 | 8.00 | 56.30 | 6/3.20 | 1/3.20 | 9.60 | 131.7 | 62.7 | 194.5 | 1710 | 0.59460 | 130.4 | 62.2 |
50/30 | 51.20 | 29.80 | 81.00 | 12/2.33 | 7/2.33 | 11.70 | 139.7 | 235.1 | 374.8 | 4380 | 0.56430 | 138.2 | 231.8 |
70/12 | 69.90 | 11.40 | 81.30 | 26/1.85 | 7/1.44 | 11.70 | 192.7 | 89.8 | 282.5 | 2680 | 0.41300 | 188.7 | 88.7 |
95/15 | 94.40 | 15.30 | 109.70 | 26/2.15 | 7/1.67 | 13.60 | 260.2 | 120.8 | 381.0 | 3575 | 0.30580 | 254.9 | 119.0 |
95/55 | 96.50 | 56.30 | 152.80 | 12/3.20 | 7/3.20 | 16.00 | 263.5 | 443.5 | 707.0 | 7935 | 0.29920 | 260.6 | 438.0 |
105/75 | 105.70 | 75.50 | 181.50 | 14/3.10 | 19/2.25 | 17.50 | 288.5 | 601.0 | 889.5 | 10845 | 0.27350 | 285.4 | 587.4 |
120/20 | 121.06 | 19.80 | 141.40 | 26/2.44 | 7/1.90 | 15.50 | 335.2 | 156.4 | 491.5 | 4565 | 0.23740 | 326.9 | 154.0 |
120/70 | 122.00 | 71.30 | 193.30 | 12/3.60 | 7/3.60 | 18.00 | 333.5 | 561.3 | 894.8 | 10000 | 0.23640 | 329.4 | 554.7 |
125/30 | 127.90 | 29.80 | 157.70 | 30/2.33 | 7/2.33 | 16.30 | 352.7 | 235.1 | 587.8 | 5760 | 0.22590 | 345.3 | 231.8 |
150/25 | 148.90 | 24.20 | 173.10 | 26/2.70 | 7/2.10 | 17.10 | 410.4 | 191.0 | 601.4 | 5525 | 0.19390 | 402.0 | 188.3 |
170/40 | 171.80 | 40.10 | 211.90 | 30/2.70 | 7/2.70 | 18.90 | 473.6 | 315.7 | 789.3 | 7675 | 0.16820 | 463.9 | 312.0 |
185/30 | 183.80 | 29.80 | 213.60 | 26/3.00 | 7/2.33 | 19.00 | 506.7 | 235.1 | 741.8 | 6620 | 0.15710 | 496.3 | 231.8 |
210/35 | 209.10 | 34.10 | 243.20 | 26/3.20 | 7/2.49 | 20.30 | 576.5 | 268.5 | 845.1 | 7490 | 0.13800 | 564.6 | 265.3 |
210/50 | 212.10 | 49.50 | 261.60 | 30/3.00 | 7/3.00 | 21.00 | 584.7 | 389.8 | 974.5 | 9390 | 0.13620 | 572.7 | 385.1 |
230/30 | 230.90 | 29.80 | 260.70 | 24/3.50 | 7/2.33 | 21.00 | 636.6 | 235.1 | 871.8 | 7310 | 0.12490 | 623.4 | 231.8 |
240/40 | 243.00 | 39.50 | 282.50 | 26/3.45 | 7/2.68 | 21.90 | 670.1 | 311.1 | 981.2 | 8640 | 0.11880 | 656.1 | 307.3 |
265/35 | 263.70 | 34.10 | 297.80 | 24/3.74 | 7/2.49 | 22.40 | 726.9 | 268.5 | 995.5 | 8305 | 0.10940 | 712.0 | 265.3 |
300/50 | 304.30 | 49.50 | 353.70 | 26/3.86 | 7/3.00 | 24.50 | 838.9 | 389.8 | 1228.7 | 10700 | 0.09487 | 821.6 | 385.1 |
305/40 | 304.60 | 39.50 | 344.10 | 54/2.68 | 7/2.68 | 24.10 | 839.8 | 311.1 | 1150.9 | 9940 | 0.09490 | 822.4 | 307.3 |
340/30 | 339.30 | 29.80 | 369.10 | 48/3.00 | 7/2.33 | 25.00 | 935.5 | 235.1 | 1170.6 | 9290 | 0.08509 | 916.1 | 231.8 |
380/50 | 382.00 | 49.50 | 431.50 | 54/3.00 | 7/3.00 | 27.00 | 1052.4 | 389.8 | 1442.2 | 12310 | 0.08509 | 1031.4 | 385.1 |
385/35 | 386.00 | 34.10 | 420.10 | 48/3.20 | 7/2.49 | 26.70 | 1064.3 | 268.5 | 1332.9 | 10480 | 0.07573 | 1042.2 | 265.3 |
435/55 | 434.03 | 59.30 | 490.60 | 54/3.20 | 7/3.20 | 28.80 | 1197.4 | 443.5 | 1640.9 | 13645 | 0.07478 | 1171.9 | 461.4 |
450/40 | 448.70 | 39.50 | 488.20 | 48/3.45 | 7/2.68 | 28.70 | 1237.1 | 311.1 | 1548.2 | 12075 | 0.06656 | 1211.5 | 307.3 |
490/65 | 490.30 | 63.60 | 553.90 | 54/3.40 | 7/3.40 | 30.60 | 1351.7 | 500.7 | 1852.4 | 15310 | 0.06434 | 1323.8 | 494.8 |
495/35 | 494.10 | 34.10 | 528.20 | 45/3.74 | 7/2.49 | 29.90 | 1363.0 | 268.5 | 1631.5 | 12180 | 0.05846 | 1334.1 | 265.3 |
510/45 | 510.20 | 45.30 | 555.50 | 48/3.68 | 7/2.87 | 30.70 | 1407.6 | 356.8 | 1764.3 | 13665 | 0.05655 | 1377.5 | 352.4 |
550/70 | 550.00 | 71.30 | 621.30 | 54/3.60 | 7/3.60 | 32.40 | 1515.4 | 561.3 | 2076.7 | 17060 | 0.05259 | 1485.0 | 554.7 |
560/50 | 561.70 | 49.50 | 611.20 | 48/3.86 | 7/3.00 | 32.20 | 1548.6 | 389.8 | 1938.5 | 14895 | 0.05140 | 1516.6 | 385.1 |
570/40 | 565.50 | 39.50 | 610.30 | 45/4.00 | 7/2.68 | 32.20 | 1559.1 | 311.1 | 1870.2 | 13900 | 0.05108 | 1526.9 | 307.3 |
650/45 | 698.50 | 45.30 | 653.49 | 45/4.30 | 7/2.87 | 34.40 | 1801.7 | 356.8 | 2158.5 | 15552 | 0.04420 | 1886.0 | 352.4 |
680/85 | 678.80 | 86.00 | 764.80 | 54/4.00 | 19/2.40 | 36.00 | 1870.9 | 683.9 | 2554.8 | 21040 | 0.04260 | 1832.8 | 669.1 |
1045/45 | 1045.58 | 45.30 | 1090.90 | 72/4.30 | 7/2.87 | 43.00 | 2882.7 | 356.8 | 3239.5 | 21787 | 0.02770 | 2823.1 | 352.4 |
The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
