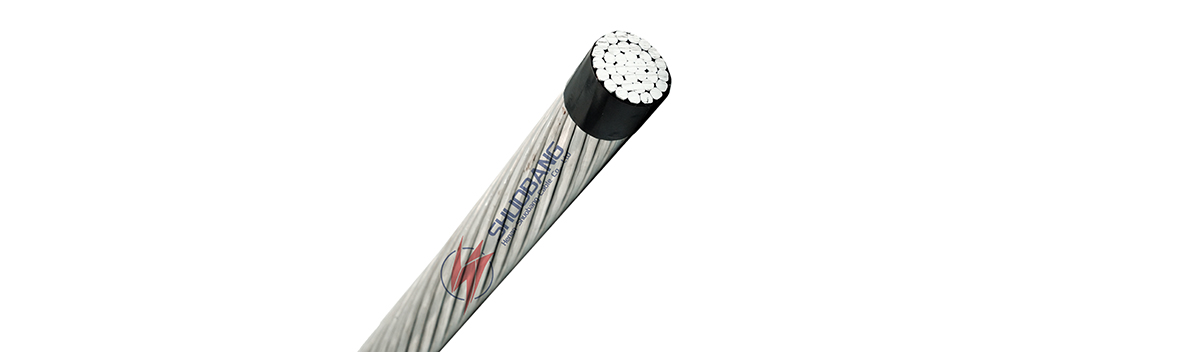

is formed by concentrically stranded Wires of Aluminium on high strength Aluminium-Magnesium Silicon (AlMgSi) Alloy core. ACAR has got a better mechanical and electrical properties as compared to an equivalent conductors of ACSR,AAC or AAAC.
A very good balance between the mechanical and electrical properties therefore makes ACAR the best choice where the ampacity , strength , and light weight are the main consideration of the line design. These conductors are extensively used in overhead transmission and distribution lines
ACAR can be used as a bare overhead transmission conductor or as a primary or secondary distribution conductor.
ASTM B 524，IEC 61089
ACAR can be used as a bare overhead transmission conductor or a primary or secondary distribution conductor. Compared with ACSR, ACAR has a better strength-to-weight ratio. At the same weight, ACAR has higher capacity and strength.

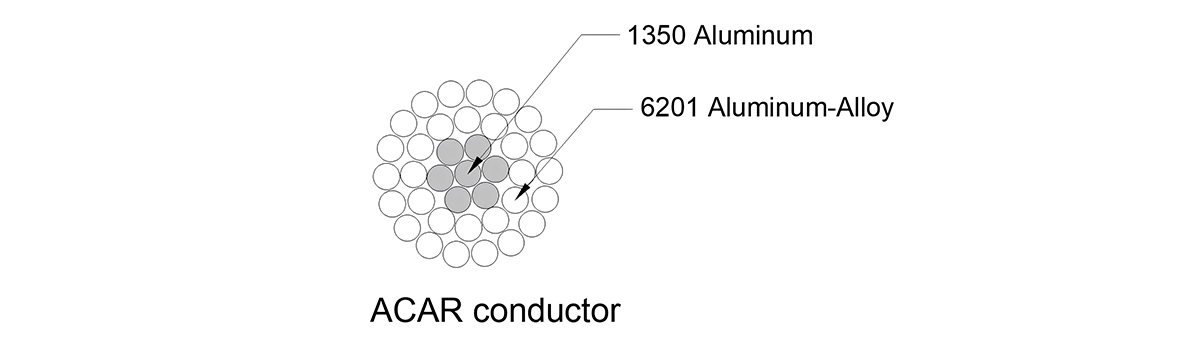

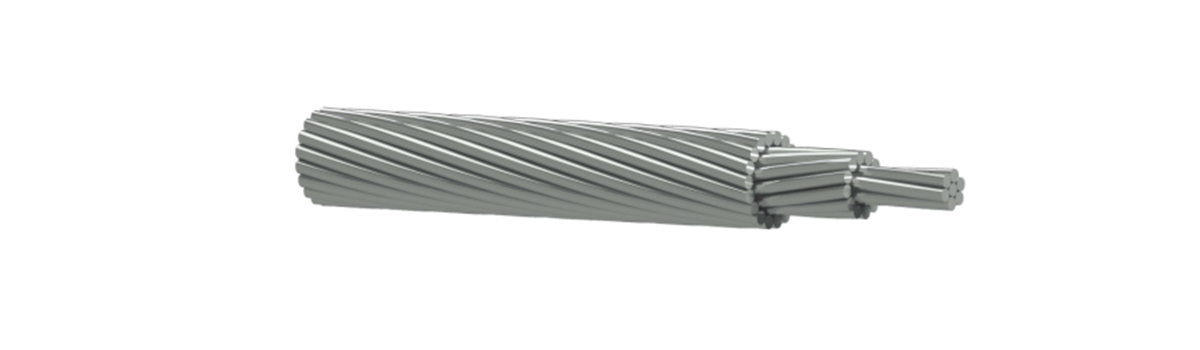

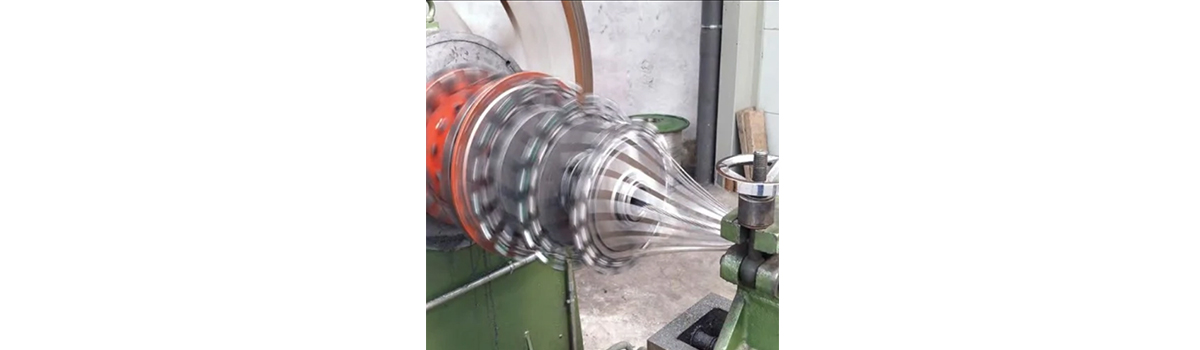

The outer layers of aluminum conductor are concentrically stranded on a central core of solid aluminum alloy or stranded aluminum alloy to form an ACAR conductor.
| ALL ALUMINUM CONDUCTOR ALLOY REINFORCED (ACAR)-ASTM B 524 | ||||||||||||
| Conductor size | Sectional Area |
Swranding | Diameter d Complete Conductor |
Mass Per Unit Length | Rafed Strength | DC Resistance E 20℃ | Current Cepadty | |||||
| No.of Wire | Wire diameter | |||||||||||
| Aluminum | Al Alloy | 1350-AL | 620 1-ALLOY | Totl | 75℃ | 85℃ | ||||||
| (cmil) | (mm2) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | (Kg/Km) | (Kg/Km) | KN | (a/Km) | (Ampere) | (Ampere) |
| 1080600 | 548 | 18 | 19 | 4.341 | 30.39 | 735 | 771 | 1506 | 121 | 0.05661 | 615 | 785 |
| 1000000 | 507 | 18 | 19 | 4.176 | 29.23 | 678 | 713 | 1391 | 112 | 0.06117 | 589 | 750 |
| 950000 | 481 | 18 | 19 | 4.069 | 28.48 | 644 | 677 | 1321 | 106 | 0.06443 | 573 | 728 |
| 900000 | 456 | 18 | 19 | 3.962 | 27.73 | 611 | 642 | 1253 | 101 | 0.06795 | 556 | 705 |
| 850000 | 431 | 18 | 19 | 3.851 | 26.96 | 577 | 606 | 1183 | 95.3 | 0.07193 | 539 | 682 |
| 800000 | 405 | 18 | 19 | 3.734 | 26.14 | 543 | 570 | 1113 | 90.3 | 0.07651 | 521 | 658 |
| 750000 | 380 | 18 | 19 | 3.617 | 25.32 | 509 | 534 | 1043 | 84.7 | 0.08154 | 503 | 633 |
| 739800 | 375 | 18 | 19 | 3.592 | 25.14 | 503 | 528 | 1031 | 83.5 | 0.08268 | 499 | 628 |
| 700000 | 355 | 18 | 19 | 3.493 | 24.45 | 475 | 498 | 973 | 79.5 | 0.08743 | 483 | 607 |
| 650000 | 329 | 18 | 19 | 3.366 | 23.56 | 440 | 463 | 903 | 73.8 | 0.09415 | 464 | 581 |
| 649500 | 329 | 18 | 19 | 3.365 | 23.56 | 442 | 464 | 905 | 73.8 | 0.09421 | 463 | 581 |
| 600000 | 304 | 18 | 19 | 3.233 | 22.63 | 406 | 427 | 833 | 70.1 | 0.10206 | 443 | 554 |
| 550000 | 279 | 18 | 19 | 3.096 | 21.67 | 373 | 392 | 765 | 64.3 | 0.11129 | 422 | 526 |
| 500000 | 253 | 18 | 19 | 4.12 | 28.84 | 339 | 356 | 695 | 58.8 | 0.06284 | 581 | 738 |
| 600000 | 304 | 15 | 4 | 4.513 | 22.57 | 661 | 175 | 836 | 55.4 | 0.09746 | 452 | 564 |
| 587200 | 298 | 15 | 4 | 4.465 | 22.33 | 648 | 172 | 820 | 54.3 | 0.09957 | 446 | 557 |
| 550000 | 279 | 15 | 4 | 4.321 | 21.61 | 606 | 161 | 767 | 50.8 | 0.10632 | 430 | 536 |
| 503600 | 255 | 15 | 4 | 4.135 | 20.68 | 556 | 147 | 703 | 46.5 | 0.1161 | 409 | 508 |
| 500000 | 253 | 15 | 4 | 4.12 | 20.6 | 550 | 146 | 696 | 46.2 | 0.11694 | 407 | 506 |
| 450000 | 228 | 15 | 4 | 3.909 | 19.55 | 496 | 131 | 627 | 41.6 | 0.12991 | 383 | 475 |
| 400000 | 203 | 15 | 4 | 3.685 | 18.43 | 440 | 117 | 557 | 37.5 | 0.14618 | 358 | 443 |
| 350000 | 177 | 15 | 4 | 3.447 | 17.24 | 385 | 102 | 487 | 33.2 | 0.16707 | 332 | 408 |
| 300000 | 152 | 15 | 4 | 3.193 | 15.97 | 331 | 87.7 | 418 | 28.9 | 0.1947 | 304 | 372 |
| 250000 | 127 | 15 | 4 | 2.913 | 14.57 | 225 | 73 | 348 | 24.4 | 0.23393 | 273 | 333 |
| 653100 | 331 | 12 | 7 | 4.709 | 23.55 | 577 | 335 | 911 | 68.5 | 0.09164 | 469 | 588 |
| 600000 | 304 | 12 | 7 | 4.513 | 22.57 | 528 | 307 | 835 | 62.9 | 0.09977 | 447 | 559 |
| 550000 | 279 | 12 | 7 | 4.321 | 21.61 | 483 | 281 | 764 | 57.6 | 0.10884 | 426 | 531 |
| 500000 | 253 | 12 | 7 | 4.12 | 20.6 | 440 | 256 | 696 | 52.4 | 0.11971 | 403 | 501 |
| ALL ALUMINUM CONDUCTOR ALLOY REINFORCED (ACAR)- ASTM B 524 | ||||||||||||
| Conductor size | Sectional Area | Stranding | Diameter of Complete Conductor |
Mass Per Unit Length | Rated Strength | DC Resistance @20℃ | Current Capadity | |||||
| No.of Wires | Wire diameter | |||||||||||
| Aluminum | Al.Alloy | 1350-AL | 6201-ALLOY | Total | @75℃ | @85℃ | ||||||
| (cmil) | (mm2) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | (Kg/Km) | (Kg/Km) | KN | (n/Km) | (Ampere) | (Ampere) |
| 450000 | 228 | 12 | 7 | 3.909 | 19.55 | 396 | 230 | 626 | 47.2 | 0.13299 | 380 | 470 |
| 400000 | 203 | 12 | 7 | 3.685 | 18.43 | 352 | 204 | 556 | 42.4 | 0.14965 | 355 | 438 |
| 350000 | 177 | 12 | 7 | 3.447 | 17.24 | 308 | 179 | 487 | 37.4 | 0.17102 | 328 | 404 |
| 300000 | 152 | 12 | 7 | 3.193 | 15.97 | 265 | 153 | 418 | 32.8 | 0.19932 | 300 | 369 |
| 250000 | 127 | 12 | 7 | 2.913 | 14.57 | 220 | 128 | 348 | 27.6 | 0.23947 | 270 | 330 |
| 246900 | 125 | 4 | 3 | 4.77 | 14.31 | 197 | 147 | 344 | 26.9 | 0.24462 | 266 | 325 |
| 211600 | 107 | 4 | 3 | 4,417 | 13.25 | 168 | 126 | 294 | 23 | 0.28528 | 244 | 296 |
| 195700 | 99.1 | 4 | 3 | 4.247 | 12.74 | 156 | 116 | 272 | 21.3 | 0.30858 | 233 | 283 |
| 167800 | 85 | 4 | 3 | 3.932 | 11.8 | 134 | 99.7 | 234 | 18.3 | 0.36 | 212 | 257 |
| 155400 | 78.7 | 4 | 3 | 3.785 | 11.36 | 124 | 92.4 | 216 | 17.1 | 0.38851 | 203 | 246 |
| 133100 | 67.4 | 4 | 3 | 3.503 | 10.51 | 106 | 79.1 | 185 | 14.7 | 0.45358 | 185 | 223 |
| 123300 | 62.5 | 4 | 3 | 3.371 | 10.11 | 98.2 | 73.3 | 171 | 13.7 | 0.48979 | 177 | 213 |
| 105600 | 53.5 | 4 | 3 | 3.119 | 9.36 | 84.1 | 62.8 | 147 | 12 | 0.57214 | 161 | 194 |
| 77470 | 39.3 | 4 | 3 | 2.672 | 8.02 | 61.7 | 46.1 | 108 | 8.9 | 0.77958 | 134 | 161 |
| 66360 | 33.6 | 4 | 3 | 2.474 | 7.42 | 52.9 | 39.5 | 92.4 | 7.8 | 0.90935 | 123 | 146 |
| 48690 | 24.7 | 4 | 3 | 2.118 | 6.35 | 38.8 | 29 | 67.8 | 5.8 | 1.24073 | 102 | 121 |
| 41740 | 21.2 | 4 | 3 | 1.961 | 5.88 | 33.2 | 24.8 | 58 | 5 | 1.44736 | 93 | 110 |
| 30580 | 15.5 | 4 | 3 | 1.679 | 5.04 | 24.4 | 18.2 | 42.6 | 3.7 | 1.97437 | 77 | 91 |
| ALL ALUMINUM CONDUCTOR ALLOY REINFORCED (ACAR)·IEC 61089-TYPE-A1/A2 | ||||||||||||
| Code No | Sectiond Area | Aluminium Wires Aas | Aluminium Alloy Wres Ares | Stranding | Diameter of Compldo Conductor | Weight | Rated Sirenghn | DC Residance e 20℃ | Current Capscay | |||
| No.of Wires | Wire dismeter | |||||||||||
| Aluminum | Al.Alloy | @75℃ | e85℃ | |||||||||
| (mm2) | (mm2) | (mm2) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | KN | (o/Km) | (Ampere) | (Ampere | |
| 16 | 17.03 | 9.73 | 7.3 | 4 | 3 | 1.76 | 5.28 | 46.6 | 3.85 | 1.7896 | 82 | 97 |
| 25 | 26.61 | 15.21 | 11.4 | 4 | 3 | 2.2 | 6.6 | 72.8 | 5.93 | 1.1453 | 107 | 127 |
| 40 | 42.49 | 24.28 | 18.21 | 4 | 3 | 2.78 | 8.34 | 116.5 | 9.25 | 0.7158 | 141 | 169 |
| 63 | 66.96 | 38.27 | 28.7 | 4 | 3 | 3.49 | 10.47 | 183.5 | 14.38 | 0.4545 | 185 | 223 |
| 100 | 106.44 | 60.82 | 45.62 | 4 | 3 | 4.4 | 13.2 | 291.2 | 22.52 | 0.2863 | 243 | 296 |
| 125 | 131.63 | 83.14 | 48.5 | 12 | 7 | 2.97 | 14.85 | 362.7 | 27.79 | 0.2302 | 276 | 338 |
| 160 | 168.47 | 106.4 | 62.07 | 12 | 7 | 3.36 | 16.8 | 464.2 | 35.04 | 0.1798 | 319 | 392 |
| 200 | 210.97 | 133.24 | 77.73 | 12 | 7 | 3.76 | 18.8 | 580.3 | 43.13 | 0.1439 | 363 | 449 |
| 250 | 264.49 | 167.05 | 97.44 | 12 | 7 | 4.21 | 21.05 | 725.3 | 53.92 | 0.1151 | 412 | 513 |
| 250 | 268.56 | 130.65 | 137.91 | 18 | 19 | 3.04 | 21.28 | 742.2 | 60.39 | 0.1154 | 413 | 515 |
| 315 | 324.18 | 262.85 | 61.33 | 30 | 7 | 3.34 | 23.38 | 829.6 | 60.52 | 0.0916 | 468 | 586 |
| 315 | 339.9 | 165.35 | 174.54 | 18 | 19 | 3.42 | 23.94 | 935.1 | 76.09 | 0.0916 | 471 | 591 |
| 400 | 410.84 | 333.11 | 77.73 | 30 | 7 | 3.76 | 26.32 | 1133.5 | 75.19 | 0.0721 | 535 | 676 |
| 400 | 430.74 | 209.55 | 221.19 | 18 | 19 | 3.85 | 26.95 | 1187.5 | 95.58 | 0.0721 | 538 | 681 |
| 450 | 462.63 | 375.11 | 87.53 | 30 | 7 | 3.99 | 27.93 | 1275.2 | 84.59 | 0.0641 | 571 | 724 |
| 450 | 483.74 | 235.33 | 248.41 | 18 | 19 | 4.08 | 28.56 | 1335.9 | 107.52 | 0.0641 | 574 | 730 |
| 500 | 515.06 | 417.62 | 97.44 | 30 | 7 | 4.21 | 29.47 | 1416.9 | 93.98 | 0.0577 | 605 | 770 |
| 500 | 539.82 | 262.61 | 277.2 | 18 | 19 | 4.31 | 30.17 | 1484.3 | 119.47 | 0.0577 | 609 | 777 |
| 560 | 575.46 | 466.59 | 108.87 | 30 | 7 | 4.45 | 31.15 | 1586.9 | 105.26 | 0.0515 | 643 | 823 |
| 560 | 570.24 | 504.8 | 65.44 | 54 | 7 | 3.45 | 31.05 | 1571.9 | 101.54 | 0.0516 | 642 | 821 |
| 630 | 659.43 | 454.03 | 205.4 | 42 | 19 | 3.71 | 33.39 | 1820 | 130.25 | 0.0458 | 686 | 883 |
| 630 | 688.18 | 270.76 | 417.42 | 24 | 37 | 3.79 | 34.11 | 1897.5 | 160.19 | 0.0458 | 690 | 890 |
| 710 | 743.73 | 512.07 | 231.65 | 42 | 19 | 3.94 | 35.46 | 2051.2 | 146.78 | 0.0407 | 730 | 945 |
| 710 | 774.24 | 304.62 | 469.62 | 24 | 37 | 4.02 | 36.18 | 2138.4 | 180.53 | 0.0407 | 734 | 952 |
| 800 | 837.09 | 576.36 | 260.73 | 42 | 19 | 4.18 | 37.62 | 2311.2 | 165.39 | 0.0361 | 777 | 1011 |
| 800 | 873.53 | 343.68 | 529.84 | 24 | 37 | 4.27 | 38.43 | 2409.5 | 203.41 | 0.0361 | 780 | 1018 |
| 900 | 940.22 | 647.36 | 292.85 | 42 | 19 | 4.43 | 39.87 | 2600.1 | 186.06 | 0.0321 | 824 | 1079 |
| 900 | 957.4 | 568.13 | 389.27 | 54 | 37 | 3.66 | 40.26 | 2638.4 | 199.54 | 0.0321 | 825 | 1082 |
| 1000 | 1032.05 | 816.56 | 215.48 | 72 | 19 | 3.8 | 41.8 | 2849.1 | 190.94 | 0.0289 | 866 | 1139 |
| 1000 | 1059.38 | 628.65 | 430.74 | 54 | 37 | 3.85 | 42.35 | 2931.6 | 221.71 | 0.0289 | 868 | 1144 |
| 1120 | 1155.01 | 913.85 | 241.16 | 72 | 19 | 4.02 | 44.22 | 3191 | 213.85 | 0.0258 | 914 | 1210 |
| 1120 | 1189.74 | 706 | 483.74 | 54 | 37 | 4.08 | 44.88 | 3283.4 | 248.32 | 0.0258 | 916 | 1216 |
| 1250 | 1290.95 | 1021.41 | 269.54 | 72 | 19 | 4.25 | 46.75 | 3561.4 | 238.68 | 0.0231 | 961 | 1281 |
| 1250 | 1327.66 | 787.84 | 539.82 | 54 | 37 | 4.31 | 47.41 | 3664.5 | 277.14 | 0.0231 | 963 | 1287 |
| 1400 | 1447.3 | 1145.11 | 302.18 | 72 | 19 | 4.5 | 49.5 | 3988.8 | 267.32 | 0.0207 | 1007 | 1353 |
| ALL ALUMINUM CONDUCTOR ALLOY REINFORCED(ACAR)-IEC 61089-TYPE-A1/A3 | ||||||||||||
| Code No | Sectional Area | Aluminium Wires Area | Aluminium Alloy Wires Area | Stranding | Diameter of Complete Conductor | Weight | Rated Strength | DC Resistance 20℃ | Current Capscity | |||
| No.of Wires | Wire dismeter | |||||||||||
| Aluminum | Al.Alloy | 75℃ | 85℃ | |||||||||
| (mm2) | (mm2) | (mm2) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | KN | [a/Km] | (Ampere) | (Ampere) | |
| 16 | 17.03 | 9.73 | 7.3 | 4 | 3 | 1.76 | 5.28 | 46.8 | 4.07 | 1.7896 | 82 | 97 |
| 25 | 26.85 | 15.34 | 11.51 | 4 | 3 | 2.21 | 6.63 | 73.1 | 6.29 | 1.1453 | 107 | 127 |
| 40 | 42.8 | 24.45 | 18.34 | 4 | 3 | 2.79 | 8.37 | 117 | 9.82 | 0.7158 | 141 | 169 |
| 63 | 67.35 | 38.48 | 28.86 | 4 | 3 | 3.5 | 10.5 | 184.3 | 14.8 | 0.4545 | 185 | 223 |
| 100 | 106.92 | 61.1 | 45.82 | 4 | 3 | 4.41 | 13.23 | 292.5 | 23.49 | 0.2863 | 243 | 296 |
| 125 | 132.52 | 83.7 | 48.82 | 12 | 7 | 2.98 | 14.9 | 364.1 | 29.29 | 0.2302 | 276 | 338 |
| 160 | 169.47 | 107.04 | 62.44 | 12 | 7 | 3.37 | 16.85 | 466 | 36.95 | 0.1798 | 319 | 392 |
| 200 | 212.09 | 133.95 | 78.14 | 12 | 7 | 3.77 | 18.85 | 582.5 | 44.78 | 0.1439 | 363 | 449 |
| 250 | 264.49 | 167.05 | 97.44 | 12 | 7 | 4.21 | 21.05 | 728.1 | 55.98 | 0.1151 | 412 | 513 |
| 250 | 270.33 | 131.51 | 138.82 | 18 | 19 | 3.05 | 21.35 | 746 | 64.67 | 0.1154 | 413 | 515 |
| 315 | 324.18 | 262.85 | 61.33 | 30 | 7 | 3.34 | 23.38 | 894.4 | 62.4 | 0.0916 | 468 | 586 |
| 315 | 341.89 | 166.32 | 175.56 | 18 | 19 | 3.43 | 24.01 | 940 | 81.48 | 0.0916 | 471 | 591 |
| 400 | 413.02 | 334.88 | 78.14 | 30 | 7 | 3.77 | 26.39 | 1135.8 | 76.82 | 0.0721 | 535 | 676 |
| 400 | 432.98 | 210.64 | 222.34 | 18 | 19 | 3.86 | 27.02 | 1193.7 | 100.3 | 0.0721 | 539 | 681 |
| 450 | 462.63 | 375.11 | 87.53 | 30 | 7 | 3.99 | 27.93 | 1277.8 | 86.42 | 0.0641 | 571 | 724 |
| 450 | 488.5 | 237.65 | 250.85 | 18 | 19 | 4.1 | 28.7 | 1342.9 | 112.84 | 0.0641 | 575 | 731 |
| 500 | 515.06 | 417.62 | 97.44 | 30 | 7 | 4.21 | 29.47 | 1419.8 | 96.03 | 0.0577 | 605 | 770 |
| 500 | 542.33 | 263.83 | 278.49 | 18 | 19 | 4.32 | 30.24 | 1492.1 | 125.38 | 0.0577 | 609 | 777 |
| 560 | 578.05 | 468.69 | 109.36 | 30 | 7 | 4.46 | 31.22 | 1590.1 | 107.55 | 0.0515 | 643 | 823 |
| 560 | 570.24 | 504.8 | 65.44 | 54 | 7 | 3.45 | 31.05 | 1573.9 | 103.53 | 0.0516 | 642 | 821 |
| 630 | 662.99 | 456.48 | 206.5 | 42 | 19 | 3.72 | 33.48 | 1826 | 134.59 | 0.0458 | 687 | 884 |
| 630 | 691.81 | 272.19 | 419.62 | 24 | 37 | 3.8 | 34.2 | 1909 | 169.14 | 0.0458 | 690 | 890 |
| 710 | 747.51 | 514.68 | 232.83 | 42 | 19 | 3.95 | 35.55 | 2057.8 | 151.68 | 0.0407 | 731 | 945 |
| 710 | 778.09 | 306.13 | 471.96 | 24 | 37 | 4.03 | 36.27 | 2151.4 | 190.61 | 0.0407 | 734 | 952 |
| 800 | 841.1 | 579.12 | 261.98 | 42 | 19 | 4.19 | 37.71 | 2318.7 | 170.9 | 0.0361 | 777 | 1011 |
| 800 | 877.62 | 345.29 | 532.33 | 24 | 37 | 4.28 | 38.52 | 2424.2 | 214.78 | 0.0361 | 781 | 1018 |
| 900 | 944.47 | 650.29 | 294.18 | 42 | 19 | 4.44 | 39.96 | 2608.5 | 192.27 | 0.0321 | 824 | 1079 |
| 900 | 957.4 | 568.13 | 389.27 | 54 | 37 | 3.66 | 40.26 | 2649.5 | 207.79 | 0.0321 | 825 | 1082 |
| 1000 | 1032.05 | 816.56 | 215.48 | 72 | 19 | 3.8 | 41.8 | 2855.4 | 195.47 | 0.0289 | 866 | 1139 |
| 1000 | 1064.9 | 631.92 | 432.98 | 54 | 37 | 3.86 | 42.46 | 2943.9 | 230.88 | 0.0289 | 869 | 1145 |
| 1120 | 1155.01 | 913.85 | 241.16 | 72 | 19 | 4.02 | 44.22 | 3198.1 | 218.92 | 0.0258 | 914 | 1210 |
| 1120 | 1195.58 | 709.47 | 486.12 | 54 | 37 | 4.09 | 44.99 | 3297.2 | 258.58 | 0.0258 | 916 | 1216 |
| 1250 | 1290.95 | 1021.41 | 269.54 | 72 | 19 | 4.25 | 46.75 | 3569.3 | 244.33 | 0.0231 | 961 | 1281 |
| 1250 | 1333.83 | 791.5 | 542.33 | 54 | 37 | 4.32 | 47.52 | 3679.9 | 288.6 | 0.0231 | 963 | 1287 |
| 1400 | 1447.3 | 1145.11 | 302.18 | 72 | 19 | 4.5 | 49.5 | 3997.6 | 273.65 | 0.0207 | 1007 | 1353 |
| ALL ALUMINUM CONDUCTOR ALLOY REINFORCED (ACAR)-CAN/CSA-C61089-11-TYPE-A1/A2 | ||||||||||||
| Designation | Sectional Area |
Aluminium Wires Area | Al.Alloy Wires Area |
Stranding | Diameter of Complete Cond uctor |
Weight | Rated Strength | DC Resistance @20℃ | Current Capacity | |||
| No.of Wires | Wire diameter | |||||||||||
| Aluminum | Al.Alloy | 75℃ | @85℃ | |||||||||
| (mm2) | (mm2) | (mm2) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | KN | (n/Km) | (Ampere) | (Ampere) | |
| 10-A1/A2-4/3 | 10.62 | 6.07 | 4.55 | 4 | 3 | 1.39 | 4.17 | 29.0 | 2.53 | 2.8630 | 62 | 72 |
| 16-A1/A2-4/3 | 17.03 | 9.73 | 7.30 | 4 | 3 | 1.76 | 5.28 | 46.4 | 4.00 | 1.7900 | 82 | 97 |
| 25-A1/A2-4/3 | 26.61 | 15.21 | 11.40 | 4 | 3 | 2.20 | 6.60 | 72.5 | 6.17 | 1.1450 | 107 | 127 |
| 40-A1/A2-4/3 | 42.49 | 24.28 | 18.21 | 4 | 3 | 2.78 | 8.34 | 116.0 | 9.50 | 0.7159 | 141 | 169 |
| 63-A1/A2-4/3 | 66.58 | 38.05 | 28.53 | 4 | 3 | 3.48 | 10.44 | 182.6 | 14.80 | 0.4545 | 185 | 223 |
| 100-A1/A2-4/3 | 105.95 | 60.55 | 45.41 | 4 | 3 | 4.39 | 13.17 | 289.9 | 23.20 | 0.2863 | 243 | 295 |
| 125-A1/A2-4/3 | 132.54 | 75.74 | 56.80 | 4 | 3 | 4.91 | 14.73 | 362.4 | 28.90 | 0.2291 | 277 | 338 |
| 160-A1/A2-12/7 | 168.47 | 106.40 | 62.07 | 12 | 7 | 3.36 | 16.80 | 462.3 | 36.00 | 0.1798 | 319 | 392 |
| 250-A1/A2-12/7 | 263.23 | 166.25 | 96.98 | 12 | 7 | 4.20 | 16.80 | 722.4 | 55.40 | 0.1151 | 398 | 490 |
| 250-A1/A2-18/19 | 268.56 | 130.65 | 137.91 | 18 | 19 | 3.04 | 16.80 | 738.5 | 62.00 | 0.1154 | 398 | 490 |
| 315-A1/A2-30/7 | 322.24 | 261.28 | 60.96 | 30 | 7 | 3.33 | 16.80 | 891.0 | 62.20 | 0.0916 | 445 | 547 |
| 315-A1/A2-18/19 | 337.91 | 164.39 | 173.52 | 18 | 19 | 3.41 | 16.80 | 930.5 | 78.20 | 0.0916 | 446 | 549 |
| 400-A1/A2-30/7 | 410.84 | 333.11 | 77.73 | 30 | 7 | 3.76 | 16.80 | 1131.0 | 77.40 | 0.0721 | 501 | 616 |
| 400-A1/A2-18/19 | 428.50 | 208.46 | 220.04 | 18 | 19 | 3.84 | 16.80 | 1182.0 | 98.20 | 0.0721 | 502 | 618 |
| 450-A1/A2-30/7 | 460.32 | 373.23 | 87.09 | 30 | 7 | 3.98 | 16.80 | 1273.0 | 87.00 | 0.0641 | 530 | 652 |
| 450-A1/A2-18/19 | 481.37 | 234.18 | 247.19 | 18 | 19 | 4.07 | 16.80 | 1329.0 | 111.00 | 0.0641 | 532 | 654 |
| 500-A1/A2-30/7 | 512.61 | 415.63 | 96.98 | 30 | 7 | 4.20 | 16.80 | 1414.0 | 96.70 | 0.0577 | 558 | 686 |
| 500-A1/A2-18/19 | 537.32 | 261.40 | 275.92 | 18 | 19 | 4.30 | 16.80 | 1477.0 | 122.00 | 0.0577 | 560 | 689 |
| 560-A1/A2-30/7 | 575.46 | 466.59 | 108.87 | 30 | 7 | 4.45 | 16.80 | 1584.0 | 108.00 | 0.0515 | 589 | 725 |
| 560-A1/A2-18/19 | 601.61 | 292.68 | 308.94 | 18 | 19 | 4.55 | 16.80 | 1654.0 | 138.00 | 0.0515 | 591 | 728 |
| 560-A1/A2-54/7 | 566.94 | 501.88 | 65.06 | 54 | 7 | 3.44 | 16.80 | 1571.0 | 105.00 | 0.0516 | 589 | 724 |
| 630-A1/A2-30/7 | 644.67 | 522.70 | 121.96 | 30 | 7 | 4.71 | 16.80 | 1782.0 | 122.00 | 0.0458 | 624 | 767 |
| 630-A1/A2-18/19 | 675.13 | 328.44 | 346.69 | 18 | 19 | 4.82 | 16.80 | 1861.0 | 155.00 | 0.0458 | 625 | 770 |
| 710-A1/A2-42/19 | 739.96 | 509.48 | 230.48 | 42 | 19 | 3.93 | 16.80 | 2044.0 | 151.00 | 0.0407 | 660 | 812 |
| 710-A1/A2-24/37 | 770.39 | 303.10 | 467.28 | 24 | 37 | 4.01 | 16.80 | 2127.0 | 186.00 | 0.0407 | 662 | 815 |
| 800-A1/A2-42/19 | 833.09 | 573.60 | 259.49 | 42 | 19 | 4.17 | 16.80 | 2303.0 | 170.00 | 0.0361 | 698 | 859 |
| 800-A1/A2-24/37 | 869.44 | 342.08 | 527.37 | 24 | 37 | 4.26 | 16.80 | 2397.0 | 209.00 | 0.0361 | 700 | 862 |
| 900-A1/A2-42/19 | 940.22 | 647.36 | 292.85 | 42 | 19 | 4.43 | 16.80 | 2591.0 | 191.00 | 0.0321 | 736 | 907 |
| ALL ALUMINUM CONDUCTOR ALLOY REINFORCED (ACAR)-CAN/CSA-C61089-11-TYPE-A1/A2 | ||||||||||||
| Designation | Sectional Area | Aluminium Wires Area | Al.Alloy Wires Area |
Stranding | Diameter of Complete Conductor |
Weight | Rated Strength | DC Resistance @20℃ | Current Capacity | |||
| No. of Wires | Wire diameter | |||||||||||
| Aluminum | Al.Alloy | @75℃ | @85℃ | |||||||||
| (mm2) | (mm2) | (mm2) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | KN | (n/Km) | (Ampere) | (Ampere) | |
| 900-A1/A2-24/37 | 978.81 | 385.1 | 593.7 | 24 | 37 | 4.52 | 16.8 | 2697 | 235 | 0.0321 | 738 | 909 |
| 1000-A1/A2-42/19 | 1040.38 | 716.33 | 324.05 | 42 | 19 | 4.66 | 16.8 | 2879 | 213 | 0.0289 | 772 | 951 |
| 1000-A1/A2-24/37 | 1085.51 | 427.09 | 658.43 | 24 | 37 | 4.76 | 16.8 | 2996 | 262 | 0.0289 | 774 | 953 |
| 1000-A1/A2-54/37 | 1053.89 | 625.38 | 428.5 | 54 | 37 | 3.84 | 16.8 | 2919 | 228 | 0.0289 | 772 | 951 |
| 1120-A1/A2-72/19 | 1149.27 | 909.31 | 239.96 | 72 | 19 | 4.01 | 16.8 | 3184 | 220 | 0.0258 | 809 | 997 |
| 1120-A1/A2-54/37 | 1183.92 | 702.54 | 481.37 | 54 | 37 | 4.07 | 16.8 | 3269 | 255 | 0.0258 | 811 | 999 |
| 1250-A1/A2-72/19 | 1284.88 | 1016.61 | 268.27 | 72 | 19 | 4.24 | 16.8 | 3554 | 246 | 0.0231 | 848 | 1045 |
| 1250-A1/A2-54/37 | 1321.51 | 784.19 | 537.32 | 54 | 37 | 4.3 | 16.8 | 3648 | 285 | 0.0231 | 849 | 1047 |
| 1400-A1/A2-72/19 | 1440.87 | 1140.03 | 300.84 | 72 | 19 | 4.49 | 16.8 | 3980 | 275 | 0.0207 | 887 | 1094 |
| 1400-A1/A2-54/37 | 1479.64 | 878.03 | 601.61 | 54 | 37 | 4.55 | 16.8 | 4086 | 319 | 0.0207 | 889 | 1096 |
| 1500-A1/A2-72/19 | 1545.39 | 1222.73 | 322.66 | 72 | 19 | 4.65 | 16.8 | 4264 | 295 | 0.0193 | 911 | 1124 |
| 1500-A1/A2-54/37 | 1585.53 | 940.86 | 644.67 | 54 | 37 | 4.71 | 16.8 | 4378 | 342 | 0.0193 | 912 | 1126 |
| 1600-A1/A2-72/19 | 1646.7 | 1302.88 | 343.82 | 72 | 19 | 4.8 | 16.8 | 4549 | 314 | 0.0181 | 933 | 1152 |
| 1600-A1/A2-54/37 | 1688.13 | 1001.75 | 686.38 | 54 | 37 | 4.86 | 16.8 | 4670 | 365 | 0.0181 | 934 | 1154 |
| ALL ALUMINUM CONDUCTOR ALLOY REINFORCED (ACAR)-CAN/CSA-C61089-11-TYPE-A1/A4 | ||||||||||||
| Designation | Total Area | Aluminium Wires Area | AI.Alloy Wires Area | Stranding | Diameter of Complete Conductor |
Weight | Rated Strength | DC Resistance @20℃ | Current Capacity | |||
| No. of Wires | Wire diameter | |||||||||||
| Aluminum | Al.Alloy | @75℃ | @85℃ | |||||||||
| (mm2) | (mm2) | (mm2) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | KN | (n/Km) | (Ampere) | (Ampere) | |
| 10-A1/A4-4/3 | 10.32 | 5.9 | 4.42 | 4 | 3 | 1.37 | 4.11 | 28.05 | 2.22 | 2.863 | 61 | 72 |
| 16-A1/A4-4/3 | 16.45 | 9.4 | 7.05 | 4 | 3 | 1.73 | 5.19 | 44.88 | 3.5 | 1.79 | 81 | 96 |
| 25-A1/A4-4/3 | 25.65 | 14.66 | 10.99 | 4 | 3 | 2.16 | 6.48 | 70.13 | 5.39 | 1.145 | 106 | 126 |
| 40-A1/A4-4/3 | 40.97 | 23.41 | 17.56 | 4 | 3 | 2.73 | 8.19 | 112.2 | 8.39 | 0.7159 | 141 | 168 |
| 63-A1/A4-4/3 | 64.68 | 36.96 | 27.72 | 4 | 3 | 3.43 | 10.29 | 176.7 | 12.9 | 0.4545 | 184 | 222 |
| 100-A1/A4-4/3 | 102.6 | 58.63 | 43.97 | 4 | 3 | 4.32 | 12.96 | 280.5 | 20.1 | 0.2863 | 242 | 294 |
| 125-A1/A4-4/3 | 128.26 | 73.29 | 54.97 | 4 | 3 | 4.83 | 14.49 | 350.6 | 25.1 | 0.2291 | 276 | 337 |
| 160-A1/A4-12/7 | 163.49 | 103.26 | 60.23 | 12 | 7 | 3.31 | 16.55 | 449.5 | 31.9 | 0.1798 | 318 | 391 |
| 200-A1/A4-12/7 | 204.29 | 129.03 | 75.26 | 12 | 7 | 3.7 | 18.5 | 561.9 | 39.8 | 0.1439 | 362 | 447 |
| 250-A1/A4-12/7 | 255.77 | 161.54 | 94.23 | 12 | 7 | 4.14 | 20.7 | 702.3 | 49 | 0.1151 | 411 | 512 |
| 250-A1/A4-18/19 | 258.06 | 125.54 | 132.52 | 18 | 19 | 2.98 | 20.86 | 709.6 | 53.4 | 0.1154 | 412 | 513 |
| 315-A1/A4-30/7 | 318.38 | 258.15 | 60.23 | 30 | 7 | 3.31 | 23.17 | 878.4 | 58.2 | 0.0916 | 467 | 585 |
| 315-A1/A4-18/19 | 324.18 | 157.71 | 166.47 | 18 | 19 | 3.34 | 23.38 | 894.2 | 66.4 | 0.0916 | 470 | 588 |
| 400-A1/A4-30/7 | 404.31 | 327.82 | 76.49 | 30 | 7 | 3.73 | 26.11 | 1115 | 73.9 | 0.0721 | 534 | 674 |
| 400-A1/A4-18/19 | 413.02 | 200.93 | 212.09 | 18 | 19 | 3.77 | 26.39 | 1135 | 83.3 | 0.0721 | 537 | 678 |
| 450-A1/A4-30/7 | 455.7 | 369.49 | 86.21 | 30 | 7 | 3.96 | 27.72 | 1255 | 81.3 | 0.0641 | 571 | 723 |
| 450-A1/A4-18/19 | 462.63 | 225.07 | 237.57 | 18 | 19 | 3.99 | 27.93 | 1277 | 93.8 | 0.0641 | 573 | 727 |
| 500-A1/A4-30/7 | 505.32 | 409.72 | 95.6 | 30 | 7 | 4.17 | 29.19 | 1394 | 90.4 | 0.0577 | 604 | 769 |
| 500-A1/A4-18/19 | 515.06 | 250.57 | 264.49 | 18 | 19 | 4.21 | 29.47 | 1419 | 104 | 0.0577 | 607 | 773 |
| 560-A1/A4-30/7 | 565.16 | 458.24 | 106.92 | 30 | 7 | 4.41 | 30.87 | 1562 | 101 | 0.0515 | 643 | 821 |
| 560-A1/A4-18/19 | 1140.47 | 843.63 | 296.83 | 54 | 19 | 4.46 | 40.14 | 1590 | 117 | 0.0515 | 660 | 864 |
| 560-A1/A4-54/7 | 563.65 | 498.97 | 64.68 | 54 | 7 | 3.43 | 30.87 | 1558 | 100 | 0.0516 | 642 | 820 |
| 630-A1/A4-30/7 | 636.48 | 516.06 | 120.42 | 30 | 7 | 4.68 | 32.76 | 1757 | 114 | 0.0458 | 684 | 879 |
| 630-A1/A4-18/19 | 650.15 | 316.29 | 333.86 | 18 | 19 | 4.73 | 33.11 | 1788 | 131 | 0.0458 | 687 | 884 |
| 710-A1/A4-42/19 | 721.25 | 496.6 | 224.65 | 42 | 19 | 3.88 | 34.92 | 1996 | 136 | 0.0407 | 729 | 942 |
| 710-A1/A4-24/37 | 736.2 | 289.65 | 446.54 | 24 | 37 | 3.92 | 35.28 | 2029 | 154 | 0.0407 | 732 | 947 |
| 800-A1/A4-42/19 | 813.23 | 559.93 | 253.3 | 42 | 19 | 4.12 | 37.08 | 2249 | 153 | 0.0361 | 776 | 1008 |
| ALL ALUMINUM CONDUCTOR ALLOY REINFORCED (ACAR)-CAN/CSA-C61089-11-TYPE-A1/A4 | ||||||||||||
| Designation | Total Area | Aluminium Wires Area | Al.Alloy Wires Area |
Stranding | Diameter of Complete Conductor |
Weight | Rated Strength | DC Resistance @20℃ | Current Capacity | |||
| No. of Wires | Wire diameter | |||||||||||
| Aluminum | AI.Alloy | @75℃ | @85℃ | |||||||||
| (mm2) | (mm2) | (mm2) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | KN | (a/Km) | (Ampere) | (Ampere) | |
| 800-A1/A4-24/37 | 829.1 | 326.2 | 502.9 | 24 | 37 | 4.16 | 37.44 | 2286 | 173 | 0.0361 | 778 | 1013 |
| 900-A1/A4-42/19 | 914.92 | 629.95 | 284.98 | 42 | 19 | 4.37 | 39.33 | 2530 | 172 | 0.0321 | 823 | 1076 |
| 900-A1/A4-24/37 | 931.75 | 366.59 | 565.16 | 24 | 37 | 4.41 | 39.69 | 2572 | 195 | 0.0321 | 826 | 1081 |
| 1000-A1/A4-42/19 | 1018.18 | 701.04 | 317.14 | 42 | 19 | 4.61 | 41.49 | 2811 | 191 | 0.0289 | 867 | 1139 |
| 1000-A1/A4-24/37 | 1035.92 | 407.58 | 628.35 | 24 | 37 | 4.65 | 41.85 | 2857 | 217 | 0.0289 | 869 | 1145 |
| 1000-A1/A4-54/37 | 1021.21 | 605.99 | 415.22 | 54 | 37 | 3.78 | 41.58 | 2829 | 199 | 0.0289 | 867 | 1140 |
| 1120-A1/A4-72/19 | 1132.14 | 895.76 | 236.38 | 72 | 19 | 3.98 | 43.78 | 3134 | 204 | 0.0258 | 913 | 1207 |
| 1120-A1/A4-54/37 | 1149.27 | 681.98 | 467.28 | 54 | 37 | 4.01 | 44.11 | 3169 | 223 | 0.0258 | 915 | 1211 |
| 1250-A1/A4-72/19 | 1266.77 | 1002.28 | 264.49 | 72 | 19 | 4.21 | 46.31 | 3498 | 228 | 0.0231 | 960 | 1278 |
| 1250-A1/A4-54/37 | 1278.83 | 758.87 | 519.96 | 54 | 37 | 4.23 | 46.53 | 3536 | 249 | 0.0231 | 961 | 1282 |
| 1400-A1/A4-72/19 | 1415.31 | 1119.81 | 295.5 | 72 | 19 | 4.45 | 48.95 | 3918 | 255 | 0.0207 | 1008 | 1352 |
| 1400-A1/A4-54/37 | 1434.46 | 851.22 | 583.24 | 54 | 37 | 4.48 | 49.28 | 3961 | 279 | 0.0207 | 1009 | 1356 |
| 1500-A1/A4-72/19 | 1518.92 | 1201.78 | 317.14 | 72 | 19 | 4.61 | 50.71 | 4198 | 274 | 0.0193 | 1036 | 1398 |
| 1500-A1/A4-54/37 | 1538.75 | 913.1 | 625.65 | 54 | 37 | 4.64 | 51.04 | 4244 | 299 | 0.0193 | 1038 | 1402 |
| 1600-A1/A4-72/19 | 1619.37 | 1281.26 | 338.11 | 72 | 19 | 4.76 | 52.36 | 4478 | 292 | 0.0181 | 1063 | 1440 |
| 1600-A1/A4-54/37 | 1639.85 | 973.1 | 666.75 | 54 | 37 | 4.79 | 52.69 | 4526 | 319 | 0.0181 | 1065 | 1444 |
Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.
Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
