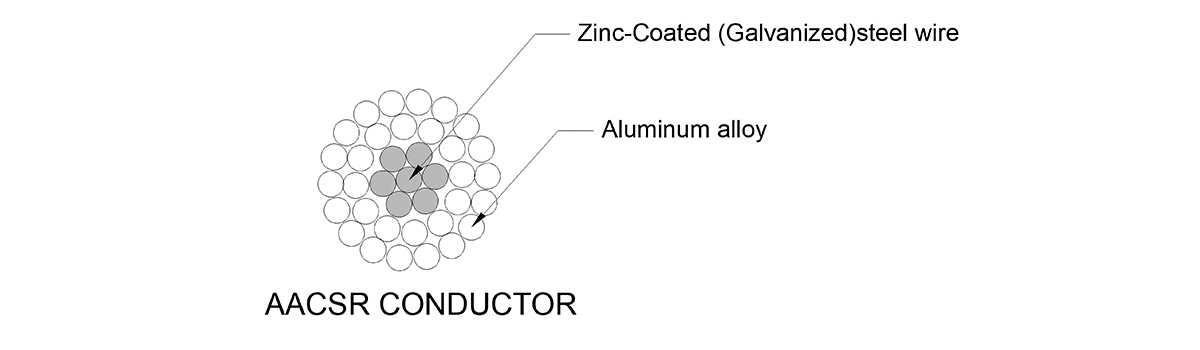

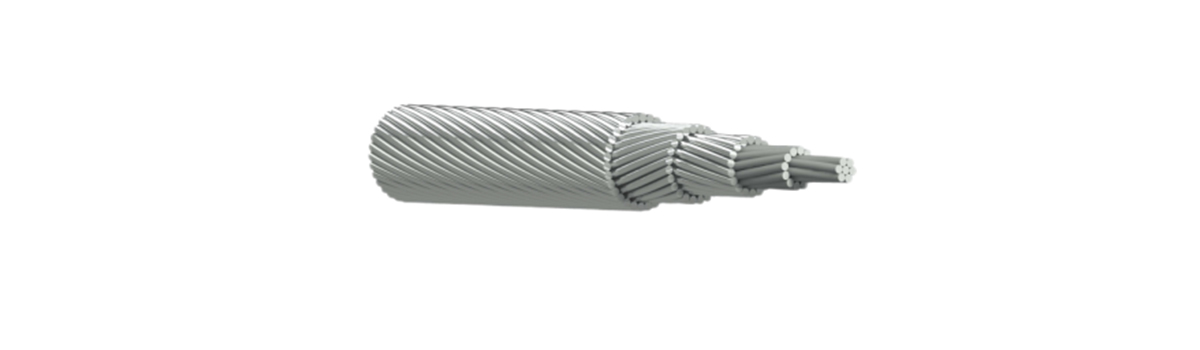

is a concentrically stranded conductor composed of one or more layers of Aluminium-Magnesium-Silicon alloy wire stranded over a high-strength zinc coated (galvanized) steel core.
AACSR Conductors have approx. 40% to 60% more strength than comparable standard ACSR with only 8 to 10% decrease in conductivity.
Used in overhead transmission lines, recommended for places with high tensile strength.
IEC 61089, ASTM B711
• Offers optimal strength for line design
• Improved strength to weight ratio
• Ideal for extra long spans and heavy load conditions
• Excellent resistance to corrosion
Available with Non-Specular (Dull) Surface Finish and Color Coated as per customized requirements.
Lightweight and high breaking load allow long spans, simplified attachment and easy recycling. Suitable for long span networks. Used as bare overhead transmission cables and primary and secondary distribution cables. Steel core stranding allows the required strength to be achieved without sacrificing current carrying capacity.
Aluminum 6201 Wires, concentrically stranded over a central wire/core of Galvanized steel.
Conductor Area | Alloy Area | Steel Area | No. of Alloy Wires | Dia of Alloy Wire | No. of Steel Wires | Dia of Steel Wire | Dia of Conductor | Linear Weight | Rated Strength | Maximum DC Resistance at 20 °C |
mm2 | mm2 | mm2 | mm | mm | mm | Kg/km | daN | Ω /km | ||
163 | 140 | 23 | 26 | 2.62 | 7 | 2.04 | 16.6 | 560 | 7500 | 0.24 |
173 | 140 | 33 | 30 | 2.44 | 7 | 2.44 | 17.1 | 650 | 8740 | 0.24 |
186 | 160 | 26 | 26 | 2.8 | 7 | 2.18 | 17.7 | 645 | 8560 | 0.21 |
198 | 160 | 38 | 30 | 2.61 | 7 | 2.61 | 18.3 | 740 | 10600 | 0.21 |
209 | 180 | 29 | 26 | 2.97 | 7 | 2.31 | 18.8 | 725 | 9510 | 0.187 |
222 | 180 | 42 | 30 | 2.76 | 7 | 2.76 | 19.3 | 825 | 11200 | 0.187 |
232 | 200 | 32 | 26 | 3.13 | 7 | 2.43 | 19.8 | 800 | 10600 | 0.168 |
247 | 200 | 47 | 30 | 2.91 | 7 | 2.91 | 20.4 | 920 | 12400 | 0.168 |
260 | 224 | 36 | 26 | 3.31 | 7 | 2.57 | 21 | 900 | 11800 | 0.15 |
276 | 224 | 52 | 30 | 3.08 | 7 | 3.08 | 21.6 | 1025 | 13900 | 0.15 |
291 | 250 | 41 | 26 | 3.5 | 7 | 2.72 | 22.2 | 1010 | 12900 | 0.135 |
308 | 250 | 58 | 30 | 3.26 | 7 | 3.26 | 22.8 | 1145 | 15600 | 0.135 |
326 | 280 | 46 | 26 | 3.7 | 7 | 2.88 | 23.4 | 1140 | 14400 | 0.12 |
345 | 280 | 65 | 30 | 3.45 | 7 | 3.45 | 24.2 | 1280 | 17100 | 0.12 |
367 | 315 | 52 | 26 | 3.93 | 7 | 3.06 | 24.9 | 1276 | 16300 | 0.107 |
387 | 315 | 72 | 30 | 3.66 | 19 | 2.2 | 25.6 | 1433 | 19000 | 0.107 |
413 | 355 | 58 | 26 | 4.17 | 7 | 3.24 | 26.4 | 1433 | 18300 | 0.095 |
436 | 355 | 81 | 30 | 3.88 | 19 | 2.33 | 27.2 | 1614 | 21100 | 0.095 |
465 | 400 | 65 | 26 | 4.43 | 7 | 3.45 | 28.1 | 1612 | 20700 | 0.0842 |
491 | 400 | 91 | 30 | 4.12 | 19 | 2.47 | 28.8 | 1816 | 23700 | 0.0842 |
509 | 450 | 59 | 54 | 3.26 | 19 | 1.96 | 29.5 | 1703 | 21500 | 0.0748 |
563 | 500 | 63 | 54 | 3.43 | 19 | 2.06 | 30.9 | 1873 | 22900 | 0.0673 |
631 | 560 | 71 | 54 | 3.63 | 19 | 2.18 | 32.7 | 2101 | 25700 | 0.0601 |
710 | 630 | 80 | 54 | 3.85 | 19 | 2.31 | 34.6 | 2365 | 28600 | 0.0534 |
800 | 710 | 90 | 54 | 4.09 | 19 | 2.45 | 36.8 | 2665 | 32200 | 0.0474 |
901 | 800 | 101 | 54 | 4.34 | 19 | 2.6 | 39 | 3000 | 36300 | 0.042 |
973 | 900 | 73 | 84 | 3.69 | 19 | 2.21 | 40.6 | 3062 | 35500 | 0.0374 |
1081 | 1000 | 81 | 84 | 3.89 | 19 | 2.33 | 42.8 | 3395 | 39100 | 0.0337 |
1211 | 1120 | 91 | 84 | 4.12 | 19 | 2.47 | 45.3 | 3803 | 43900 | 0.03 |
1352 | 1250 | 102 | 84 | 4.35 | 19 | 2.61 | 47.8 | 4250 | 49000 | 0.027 |
Code Number | Area | Number of Wires | Wire Dia. | Diameter | Linear Mass | A1/S1 A Conductor | A1/S2 A Conductor | A1/S3 A Conductor | Max.D.C. Resistance at 20℃ | |||||
Alum. | Steel | Total | AI. | St. | Alum. | Steel | Core | Cond. | Rated Strength | Rated Strength | Rated Strength | |||
mm² | mm² | mm² | mm² | mm | mm | mm | mm | kg/km | kN | Ω/km | ||||
16 | 16 | 2.67 | 18.7 | 6 | 1 | 1.84 | 1.84 | 1.64 | 5.53 | 64.6 | 6.08 | 6.45 | 6.83 | 1.7934 |
25 | 25 | 4.17 | 29.2 | 6 | 1 | 2.3 | 2.3 | 2.3 | 6.91 | 100.9 | 9.13 | 9.71 | 10.25 | 1.1478 |
40 | 40 | 6.67 | 46.7 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 | 14.4 | 15.33 | 16.2 | 0.7174 |
63 | 63 | 10.5 | 73.5 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11 | 254.4 | 21.63 | 22.37 | 24.15 | 0.4555 |
100 | 100 | 16.7 | 117 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 | 34.33 | 35.5 | 38.33 | 0.2869 |
125 | 125 | 6.94 | 132 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 | 29.17 | 30.14 | 31.04 | 0.2304 |
125 | 125 | 20.4 | 145 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 | 45.69 | 48.54 | 51.39 | 0.231 |
160 | 160 | 8.89 | 169 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 509.3 | 36.18 | 37.42 | 38.67 | 0.18 |
160 | 160 | 26.1 | 186 | 26 | 7 | 2.8 | 2.18 | 6.53 | 17.7 | 644.9 | 57.69 | 61.34 | 64.99 | 0.1805 |
200 | 200 | 11.1 | 211 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 | 44.22 | 45 | 46.89 | 0.144 |
200 | 200 | 32.6 | 233 | 26 | 7 | 3.13 | 2.43 | 7.3 | 19.8 | 806.2 | 70.13 | 74.69 | 78.93 | 0.1444 |
250 | 250 | 24.6 | 275 | 22 | 7 | 3.8 | 2.11 | 6.34 | 21.6 | 880.6 | 68.72 | 72.16 | 75.6 | 0.1154 |
250 | 250 | 40.7 | 291 | 26 | 7 | 3.5 | 2.72 | 8.16 | 22.2 | 1007.7 | 87.67 | 93.37 | 98.66 | 0.1155 |
315 | 315 | 21.8 | 337 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.3 | 79.03 | 82.08 | 85.13 | 0.0917 |
315 | 315 | 51.3 | 366 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 | 106.83 | 114.02 | 121.2 | 0.0917 |
400 | 400 | 27.7 | 428 | 45 | 7 | 3.36 | 2.24 | 6.73 | 26.9 | 1320.1 | 98.36 | 102.23 | 106.1 | 0.0722 |
400 | 400 | 51.9 | 452 | 54 | 7 | 3.07 | 3.07 | 9.21 | 27.6 | 1510.3 | 123.04 | 130.3 | 137.56 | 0.0723 |
450 | 450 | 31.1 | 481 | 45 | 7 | 3.57 | 2.38 | 7.14 | 28.5 | 1485.2 | 107.47 | 111.82 | 115.87 | 0.0642 |
450 | 450 | 58.3 | 508 | 54 | 7 | 3.26 | 3.26 | 9.77 | 29.3 | 1699.1 | 138.42 | 146.58 | 154.75 | 0.0643 |
500 | 500 | 34.6 | 535 | 45 | 7 | 3.76 | 2.51 | 7.52 | 30.1 | 1650.2 | 199.41 | 124.25 | 128.74 | 0.0578 |
500 | 500 | 64.8 | 565 | 54 | 7 | 3.43 | 3.43 | 10.3 | 30.9 | 1887.9 | 153.8 | 162.87 | 171.94 | 0.0578 |
560 | 560 | 38.7 | 599 | 45 | 7 | 3.98 | 2.65 | 7.96 | 31.8 | 1848.2 | 133.74 | 139.16 | 144.19 | 0.0516 |
560 | 560 | 70.9 | 631 | 54 | 19 | 3.63 | 2.18 | 10.9 | 32.7 | 2103.4 | 172.59 | 182.52 | 192.45 | 0.0516 |
630 | 630 | 43.6 | 674 | 45 | 7 | 4.22 | 2.81 | 8.44 | 33.8 | 2079.2 | 150.45 | 156.55 | 162.21 | 0.0459 |
630 | 630 | 79.8 | 710 | 54 | 19 | 3.85 | 2.31 | 11.6 | 34.7 | 2366.3 | 191.77 | 202.94 | 213.31 | 0.0459 |
710 | 710 | 49.1 | 759 | 45 | 7 | 4.48 | 2.99 | 8.96 | 35.9 | 2343.2 | 169.56 | 176.43 | 182.81 | 0.0407 |
710 | 710 | 89.9 | 800 | 54 | 19 | 4.09 | 2.45 | 12.3 | 36.8 | 2666.8 | 216.12 | 228.71 | 240.41 | 0.0407 |
800 | 800 | 34.6 | 835 | 72 | 7 | 3.76 | 2.51 | 7.52 | 37.6 | 2480.2 | 167.41 | 172.25 | 176.74 | 0.0361 |
800 | 800 | 66.7 | 867 | 84 | 7 | 3.48 | 3.48 | 10.4 | 38.3 | 2732.7 | 205.33 | 214.67 | 224 | 0.0362 |
800 | 800 | 101 | 901 | 54 | 19 | 4.44 | 2.61 | 13 | 39.1 | 3004.9 | 243.52 | 257.71 | 270.88 | 0.0362 |
900 | 900 | 38.9 | 939 | 72 | 7 | 3.99 | 2.66 | 7.98 | 39.9 | 2790.2 | 188.33 | 193.78 | 198.83 | 0.0321 |
900 | 900 | 75 | 975 | 84 | 7 | 3.69 | 3.69 | 11.1 | 40.6 | 3074.2 | 226.5 | 231.75 | 244.5 | 0.0322 |
1000 | 1000 | 43.2 | 1043 | 72 | 7 | 4.21 | 2.8 | 8.41 | 42.1 | 3100.3 | 209.26 | 215.31 | 220.93 | 0.0289 |
1120 | 1120 | 47.3 | 1167 | 72 | 19 | 4.45 | 1.78 | 8.9 | 44.5 | 3464.9 | 234.53 | 241.15 | 247.77 | 0.0258 |
1120 | 1120 | 91.2 | 1211 | 84 | 19 | 4.12 | 2.47 | 12.4 | 45.3 | 3811.5 | 283.17 | 295.94 | 307.79 | 0.0258 |
1250 | 1250 | 102 | 1352 | 84 | 19 | 4.35 | 2.61 | 13.1 | 47.9 | 4253.9 | 316.04 | 269.14 | 276.53 | 0.0232 |
1250 | 1250 | 52.8 | 1303 | 72 | 19 | 4.7 | 1.88 | 9.4 | 47 | 3867.1 | 261.75 | 330.29 | 343.52 | 0.0231 |
