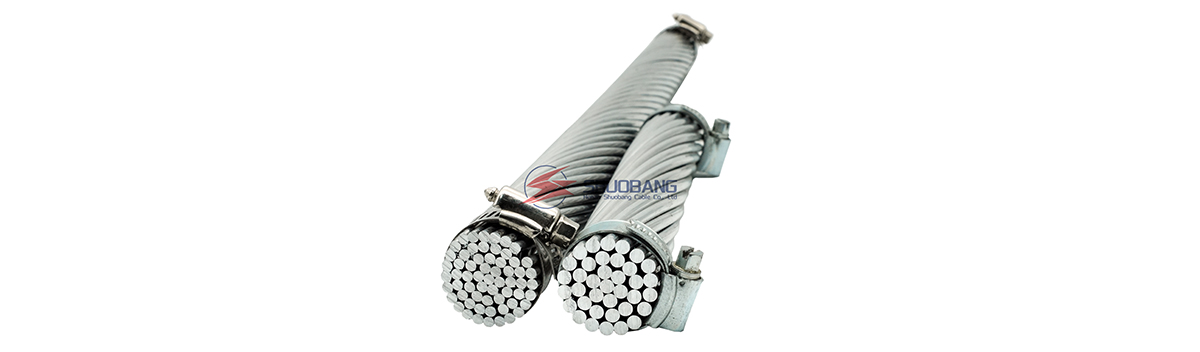

Product Description:

The bare conductor is made of 6201-T81 aluminum alloy wire, which is continuously twisted at a certain pitch. The twist directions of adjacent layers of the conductor are opposite, and the outermost layer is twisted in the right direction.

Product Application:

It can replace part of aluminum stranded wire or steel core aluminum stranded wire for overhead medium, high voltage and ultra-high voltage transmission lines.

Product Standards

GB/T1179-2008, IEC 61089-1991 ,ASTM B 399-81 ,BS3242-1970, DIN 48201-6-1981

Product Advantages:

Compared with AAC and ACSR, AAAC has better anti-sagging performance, better electrical properties and better corrosion resistance due to the high strength-to-weight ratio of aluminum alloy. It is widely used in power, communication, construction and other fields. Aluminum alloy stranded wire is mainly used in power transmission, wiring, overhead cables and other power projects.

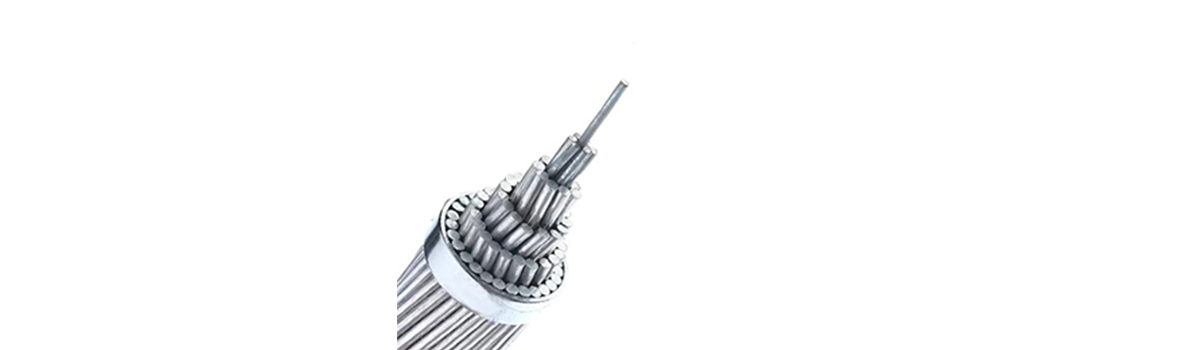

Structure:

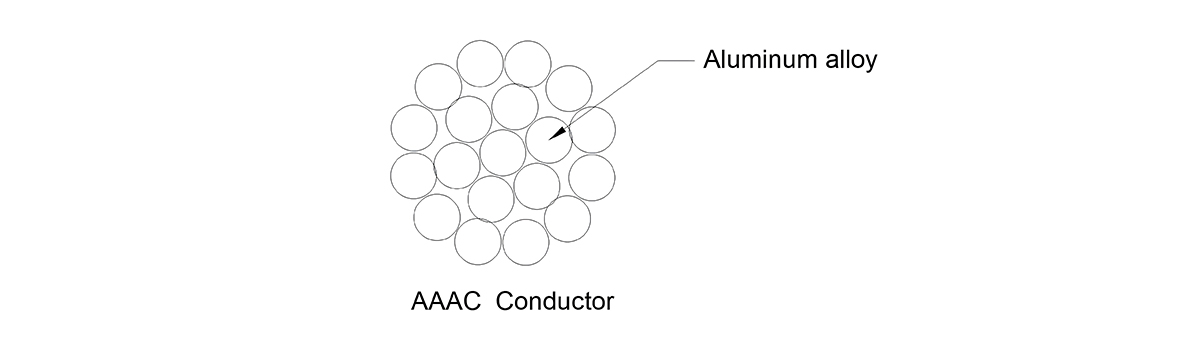

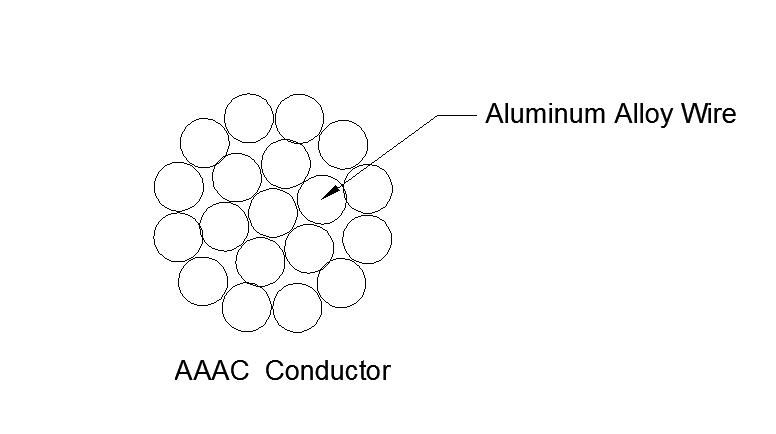

Made of stranded aluminum alloy wire, AAAC is available in single-layer and multi-layer structures

AAAC

AAAC-Technical characteristics / BS3242
Code Word Conductor size Stranding Sectional Area Diameter of Conductor Linear Density Rated Strength Final modulus of elasticity  Coefficient of linear expansion  D.C. Resistance at 20°C
mm2 No. /mm mm2 mm kg/km kgf hBar 1/°C Ω/km
Box 15 7/1.85 18.82  5.55  51 537 5900 23*10ˉ6 1.74950
Acacia 20 7/2.08 23.79  6.24  65 680 5900 23*10ˉ6 1.38400
Almond 25 7/2.34 30.10  7.02  82 861 5900 23*10ˉ6 1.09340
Cedar 30 7/2.54 35.47  7.62  97 1014 5900 23*10ˉ6 0.92810
35 7/2. 77 42.18  8.31  115 1205 5900 23*10ˉ6 0.78040
Fir 40 7/2.95 47.84  8.85  131 1367 5900 23*10ˉ6 0.68800
Hazel 50 7/3.30 59.87  9.90  164 1711 5900 23*10ˉ6 0.54980
Pine 60 7/3.61 71.65  10.83  196 2048 5900 23*10ˉ6 0.45940
70 7/3.91 84.05  11.73  230 2402 5900 23*10ˉ6 0.39170
Willow 75 7/4. 04 89.73  12.12  245 2565 5900 23*10ˉ6 0.36690
80 7/4.19 96.52  12.57  264 2758 5900 23*10ˉ6 0.34410
90 7/4.44 108.00  13.32  298 3112 5900 23*10ˉ6 0.30230
Oak 100 7/4.65 118.90  13.95  325 3398 5900 23*10ˉ6 0.27690
100 19/2.82 118.70  14.10  326 3393 5600 23*10ˉ6 0.27870
Mulberry 125 19/3.18 150. 90 15.90  415 4312 5600 23*10ˉ6 0.21920
Ash 150 19/3.48 180.70  17.40  497 5164 5600 23*10ˉ6 0.18310
Elm 175 19/3.76 211.00  18.80  580 6030 5600 23*10ˉ6 0.15680
Poplar 200 37/2.87 239.40  20.09  659 8841 5600 23*10ˉ6 0.13850
225 37/3.05 270.30  21.35  744 7724 5600 23*10ˉ6 0.12270
Sycamore 250 37/3.22 303.20  22.54  835 8664 5600 23*10ˉ6 0.10930
Upas 300 37/3.53 362.10  24.71  997 10350 5600 23*10ˉ6 0.09156
Walnut 350 37/3.81 421.80  26.67  1162 12053 5600 23*10ˉ6 0.07860
Yew 400 37/4.06 479.00  28.42  1319 13685 5600 23*10ˉ6 0.06921
Totara 425 37/4.14 498.10  28.98  1372 14233 5600 23*10ˉ6 0.06656
Rub us 500 61/3.50 586.90  31.50  1620 16771 5600 23*10ˉ6 0.05662
Araucaria 700 61/4.14 821.10  37.26  2266 23450 5600 23*10ˉ6 0.04047



AAAC-Technical characteristics / DIN 48201
Conductor size mm2 Alloy area mm2 Number of wires Diameter of wire mm Overall diameter of conductor mm Linear mass kg/km Rated tensile strength daN Maximum resistance D.C. at 20℃  Ω/km
16 15.89 7 1.70  5.10  43 444 2.0910
25 24.25 7 2.10  6.30  66 677 1.3703
35 34.36 7 2.50  7.50  94 960 0.9669
50 49.48 7 3.00  9.00  135 1382 0.6714
50 48.35 19 1.80  9.00  133 1350 0.6905
70 65.81 19 2.10  10.50  181 1838 0.5073
95 93.27 19 2.50  12.50  256 2605 0.3579
120 116.99 19 2.80  14.00  322 3268 0.2854
150 147.11 37 2.25  15.80  406 4109 0.2274
185 181.62 37 2.50  17.50  500 5073 0.1842
240 242.54 61 2.25  20.30  670 6774 0.1383
300 299.43 61 2.50  22.50  827 8363 0.1120
400 400.14 61 2.89  26.00  1104 11176 0.0838
500 499.63 61 3.23  29.10  1379 13960 0.0671
625 626.2 91 2.96  32.60  1732 17490 0.0540
800 802.09 91 3.35  36.90  2218 22402 0.0418
1000 999.71 91 3.74  41.10  2767 27922 0.0335



JLHA1
All Aluminium Alloy Conductors(AAAC) (GB/T 1179-2008 Eqv. IEC61089-1991)
Nominal Area
Aluminium lloy
Area(mm2) No.of wires/
Diameter (Nos/mm)
Outer
Diameter
(mm)

Weight
(kg/km)
Rated Tensile
Strength (KN)
D.C Resistance at 20℃(Ω/km)
10 10.02 7/1.35 4.05 27.4 3.26 3.3205
16 16.08 7/1.71 5.13 44 5.22 2.0695
25 24.94 7/2.13 6.39 68.2 8.11 1.3339
35 34.91 7/2.52 7.56 95.5 11.35 0.9529
50 50.14 7/3.02 9.06 137.2 16.3 0.6635
70 70.07 7/3.57 10.7 191.7 22.07 0.4748
95 95.14 7/4.16 12.5 261.5 29.97 0.3514
150 149.96 19/3.17 15.9 412.2 48.74 0.2229
210 209.85 19/3.75 18.8 576.8 66.1 0.1593
240 239.96 19/4.01 20.1 661.1 75.59 0.1397
300 299.43 37/3.21 22.5 825 97.32 0.1119
400 399.98 37/3.71 26 1102.1 125.99 0.0838
500 500.48 37/4.15 29.1 1380.9 157.65 0.0671
630 631.3 61/3.63 32.7 1741.8 198.86 0.0532
800 801.43 61/4.09 36.8 2211.3 252.45 0.0419
1000 1000.58 61/4.57 41.1 2760.7 315.18 0.0335



JLHA1
All Aluminium Alloy Conductors(AAAC) (GB/T 1179-2008 Eqv.IEC61089-1991)
Nominal Area
Aluminium Alloy
Code Area(mm2) No. of wires/
Diameter (Nos/mm)
Outer
Diameter(mm)
Weight
(kg/km)
Rated Tensile Strength(KN) D.C Resistance
at 20℃ (Ω/km)
20 16 18.6 7/1.84 5.52 50.8 6.04 1.7896
30 25 29 7/2.30 6.9 79.5 9.44 1.1453
45 40 46.5 7/2.91 8.72 127.1 15.1 0.7158
75 63 73.2 7/3.65 10.9 200.2 23.06 0.4545
120 100 116 19/2.79 14 319.3 37.76 0.2877
145 125 145 19/3.12 15.6 399.2 47.2 0.2302
185 160 186 19/3.53 17.6 511 58.56 0.1798
230 200 232 19/3.95 19.7 638.7 73.2 0.1439
300 250 290 19/4.41 22.1 798.4 91.5 0.1151
360 315 366 37/3.55 24.8 1008.4 115.3 0.0916
465 400 465 37/4.00 28 1280.5 146.4 0.0721
520 450 523 37/4.24 29.7 1440.5 164.7 0.0641
580 500 581 37/4.47 31.3 1600.6 183 0.0577
650 560 651 61/3.69 33.2 1795.3 204.96 0.0516
720 630 732 61/3.91 35.2 2019.8 230.58 0.0458
825 710 825 61/4.15 37.3 2276.2 259.86 0.0407
930 800 930 61/4.40 39.6 2564.8 292.8 0.0361
1050 900 1046 91/3.83 42.1 2888.3 329.4 0.0321
1150 1000 1162 91/1.03 44.4 3209.3 366 0.0289
1300 1120 1301 91/4.27 46.9 3594.4 409.9 0.0258



JLHA1
All Aluminium Alloy Conductors(AAAC)(ASTM B 399-81)
Conductor slze(mcm) Number and
diameter of
wire(mm)
Cross-sectional
Area(mm2)
Overall
diameter
(mm)
Weight(kg/km) Calculated
Breaking load
Calculated
D.C.resistance
At20℃
(ohm/km)
kgf kN
66.36 7/2.47 33.54 7.41 92 1087 10.66 0.9987
77.47 7/2.67 39.19 8.01 108 1270 12.45 0.8547
105.6 7/3.12 53.52 9.36 148 1734 17 0.6259
123.3 7/3.37 62.44 10.01 172 2023 19.84 0.5364
133.1 7/3.50 67.35 10.5 186 2091 20.51 0.4973
155.4 7/3.78 78.55 11.34 217 2439 23.92 0.4264
167.8 7/3.93 84.91 11.79 234 2636 25.85 0.3945
195.7 714.25 99.3 12.75 274 3083 30.23 0.3373
211.6 7/4.42 107.4 13.26 296 3335 32.71 0.3119
246.9 714.77 125.1 14.31 345 3884 38.09 0.2678
394.5 19/3.66 199.9 18.3 551 6012 58.96 0.1676
400 19/3.69 203.2 18.45 560 6112 59.94 0.1648
450 19/3.91 228.1 19.55 629 6861 67.28 0.1468
465.4 19/3.98 236.4 19.9 652 7110 69.73 0.1417
500 19/4.12 253.3 20.6 698 9619 74.72 0.1322
550 37/3.10 279.3 21.7 770 8577 84.11 0.1199
559 19/4.36 283.7 21.8 782 8533 83.64 0.1181
600 37/3.23 303.2 22.61 836 9311 91.31 0.1105
650 37/3.37 330 23.59 910 10134 99.38 0.1015
652.4 19/4.71 331 23.55 913 9956 97.64 0.1012
700 37/3.49 354 24.43 976 10418 102.2 0.09462
740 37/3.59 374.5 25.13 1033 11022 108.1 0.08944
750 37/3.62 380.8 25.34 1050 11207 109.9 0.08796
800 37/3.73 404.3 26.11 1115 11899 116.7 0.08285
900 37/3.96 455.7 27.72 1256 13411 131.5 0.0735
927.2 37/4.02 469.6 28.14 1295 13821 135.5 0.07133
1000 37/4.18 507.7 29.26 1400 14942 146.5 0.06598
